QUICK REFERENCE GUIDE > RF610ADUSX4
Freestanding French Door
Refrigerator Freezer, 90cm,
541L, Ice & Water
Series 7 | Contemporary
Stainless Steel | French hinge
Contents

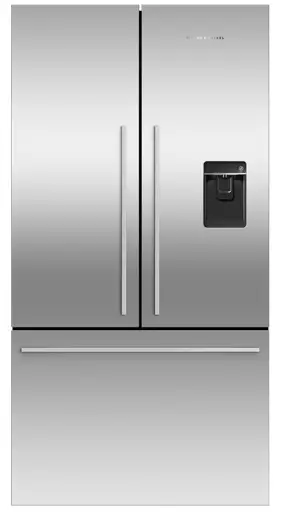

RF610ADUSX4 90cm Freestanding French Door Refrigerator Freezer
You’ll have plenty of flexible storage space in this striking, large capacity French Door Refrigerator Freezer.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.
- Door water dispenser and internal ice maker

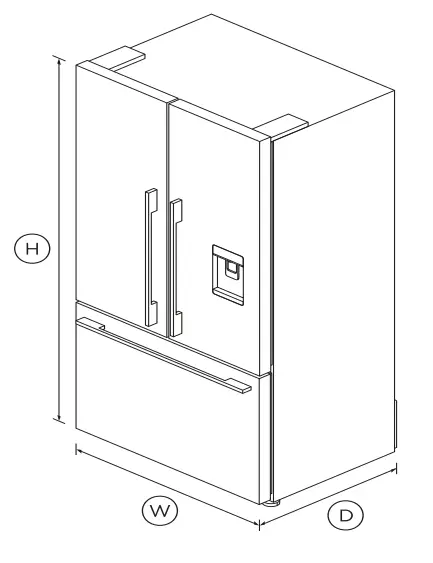

DIMENSIONS
| Height | 1790mm |
| Width | 900mm |
| Depth | 695mm |
FEATURES & BENEFITS
HUMIDITY CONTROL
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space, or during busy times you can boost ice production by up to 30%.
DESIGN QUALITY
Our fridges are designed and built using quality materials. We use real stainless steel on our fridges and solid glass for shelving.
SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.
Our flexible shelving also gives you more storage options.
COMPLEMENTARY DESIGN
With their premium handle styling and stainless steel finish, our fridges are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
SPECIFICATIONS
| Capacity | |
| Total net volume | 536L |
| Volume freezer | 152L |
| Volume refrigerator | 417L |
| Consumption | |
| Energy consumption | 1.34kWh/24h |
| Energy rating | Grade 3 |
| Energy usage | 1.34kWh/24h |
| Features | |
| Adjustable glass shelves | 2 |
| Adjustable half width door | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Fast freeze | • |
| Freezer bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| Performance | |
| ActiveSmart Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| R600a refrigerant | • |
| Power requirements | |
| Connection power | 240W |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 695mm |
| Height | 1790mm |
| Width | 900mm |
Warranty
| Parts and labour | 1 year |
| Sealed system parts only | 5 years |
| SKU | 25489 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
