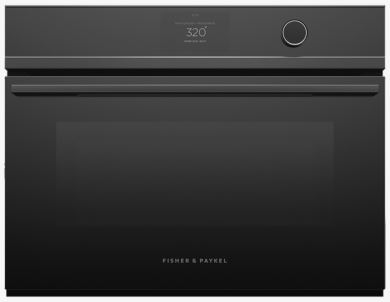

FISHER PAYKEL OM24NDTDB1 24 Inch Convection Speed Oven
The speed of microwave cooking with the versatility of convection oven technology in a compact companion model, for perfect pairing.
- Generous 1.7 cu ft capacity, with four shelf positions
- A Wired Temperature Sensor precisely monitors cooking in real time
- Guided touchscreen cooking makes it simple to navigate cooking processes
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
DIMENSIONS
- Height: 18″
- Width: 23 7/16″
- Depth: 22 1/4″
FEATURES & BENEFITS
- Cooking flexibility
Choose from 22 functions, including four microwave-only functions, 14 traditional oven functions, and four combination functions, giving you the best microwave and convection oven technology. - Cook with confidence
The 5” screen provides an intuitive guided cooking experience that helps to deliver perfect results, whether you’ve been cooking all your life or are just starting out. - Sized to suit
A compact 24″ width means this microwave oven can be placed almost anywhere – all companion products can be installed at a convenient height to suit your kitchen design and preference. - Complementary design
With a reflective black glass finish, this Contemporary style oven is well-suited to a variety of kitchen designs. It’s distinctive and timeless, whether on its own or part of a matching appliance set. - Multi-function flexibility
Each function has been tailored and tested to ensure perfect defrosting, heating and cooking. - Safe and sound
The CoolTouch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Chromed shelf runners | • |
| Glass tray | 1 |
| Step down wire shelf | 1 |
| Wire shelf | 1 |
| Wired temperature sensor | 1 |
Accessories (sold separately)
| Matching Trim Kit | TK7630NDB1 |
Capacity
| Shelf positions | 4 |
| Total capacity | 1.7cu ft |
| Usable capacity | 1.3cu ft |
Controls
| Adjustable audio and display | • |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Halogen lights | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Sabbath mode with Star K | • |
QUICK REFERENCE GUIDE > OM24NDTDB1
| Soft close doors | • |
| True convection oven | • |
| Turned stainless steel dials | • |
| Wi-Fi connectivity | • |
Functions
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Defrost | • |
| Dehydrate | • |
| Maxi Broil | • |
| Microwave cooking | • |
| Number of functions | 22 |
| Pastry Bake | • |
| Pizza bake | • |
| Popcorn | • |
| Rapid proof | • |
| Roast | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
| Warm | • |
Performance
- ActiveVent™ system: •
- AeroTech™ technology: •
- Automatic rapid pre-heat: •
- Grill power: 3000W
- Microwave by levels: •
- Microwave power: 900W
- Microwave power levels : 6
- Temperature range: 35 – 230°C
- Whisper quiet cooking: •
Power requirements
| Amperage | 25A |
| Supply frequency | 60Hz |
| Supply voltage | 208-240V |
Product dimensions
| Depth | 22 1/4″ |
| Height | 18″ |
| Width | 23 7/16″ |
Safety
| ADA compliant | • |
| Balanced oven door | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
Warranty
| Parts and labor | 2 years |
| SKU | 82965 |
