QUICK REFERENCE GUIDE > HF60LX4
Wall Rangehood, 60cm, Fixed
Series 3 | Contemporary
Stainless Steel
Contents

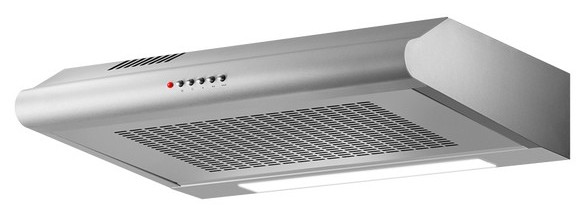

HF60LX4 Wall Rangehood 60cm Fixed
This stainless steel rangehood has Contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
- With three fan speeds, select the perfect extraction rate for your cooking
- Efficient maximum air movement of 185m³/hr
- Dishwasher safe filters that are easy to remove and clean

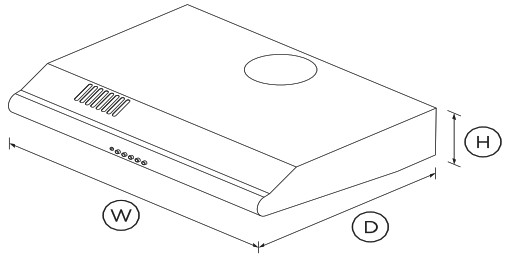

DIMENSIONS
| Height | 120mm |
| Width | 598mm |
| Depth | 450mm |
FEATURES & BENEFITS
EASY INSTALLATION
This rangehood can be either externally ducted through the top or back or can recirculate air internally through its filters, making it perfect for apartments.
SIMPLE CONTROLS
Simply flick a switch to turn this rangehood on or off, or to change between three extraction speeds. A separate switch controls the bright halogen lights to provide illumination over your cooking surface.
EASY CLEANING
A filter, consisting of layers of aluminium mesh, effectively traps grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
SEAMLESS INTEGRATION
The brushed stainless steel finish on this rangehood is designed to match the rest of the Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
Accessories
| Eave ducting kit | PD-RHK125E |
| Light bulb | 792507 |
| Recirculation carbon filter | 792506 |
| Roof ducting kit | PD-RHK125T |
| Side wall ducting kit | PD-RHK125W |
Fan ratings
| Maximum motor performance | 350cm/hr |
| Maximum pressured air | 185m³/hr |
| Maximum sound rating | 58dBA |
Installation and cleaning
| Dishwasher safe filters | 1 |
| Ducted | Top extraction |
| Recirculation | Optional – front extraction |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 1 |
Power requirements
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 450mm |
| Height | 120mm |
| Width | 598mm |
Product information
| Control type | Push Button |
Ventilation features
| Light type | Incandescent |
Warranty
| Parts and labour | 2 years |
| SKU | 50010 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
