QUICK REFERENCE GUIDE > DD60ST4ZB9
Built-under Single
DishDrawer™ Dishwasher, Tall, Sanitise
Contents

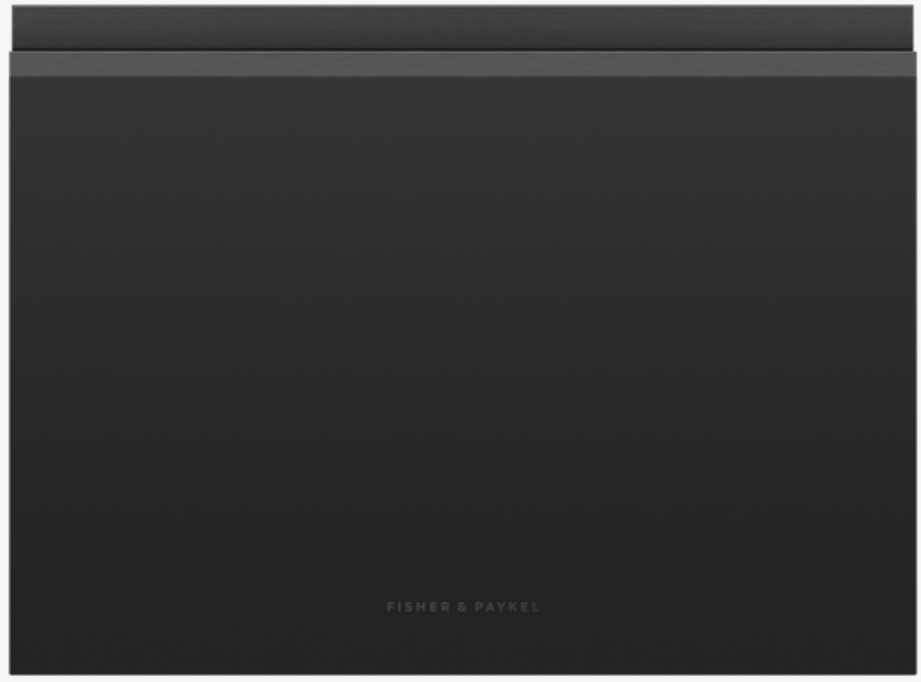

DD60ST4ZB9 Single DishDrawer Dishwasher
Series 9 | Contemporary Black Glass
Created with extra height for large dishes and designed to be placed anywhere in your kitchen, for loading dishes with minimalbending.
- Designed to be installed under your benchtop, with a recessedhandle for a seamless look
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry modifiers
- With extra height for taller dishes, and customisable internal shelving
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
DIMENSIONS
| Height | 454mm |
| Width | 599mm |
| Depth | 573mm |
FEATURES & BENEFITS
CONSIDERED DESIGN
Designed to match our Contemporary style black glass family ofproducts, this built-under DishDrawer™ Dishwasher has a tactilematte black glass finish that pairs perfectly with a recessed handle.
SEAMLESS FIT
Our built-under DishDrawer™ Dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps.
DESIGNED FOR REAL LIFE
Designed to make everyday life simpler, DishDrawer™ Dishwashers can be distributed throughout the kitchen to support patterns of use. As easy to open and close as kitchen drawers, they can be conveniently positioned at bench height for ease of loading and minimal bending.
EASY TO LOAD
Designed to fit seven place settings, with foldable racking to fit taller dishes up to 310mm. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria* in the final rinse. The Extra Dry setting is perfect for plastic dishes. *Certified to NSF/ANSI Standard 184
QUIET PERFORMER
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 310mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Pitch adjustable tines | • |
| Place settings per drawer | 7 |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 136 kWh/year |
| Water consumption (per wash | 6.9L |
| Water efficiency | 4.5 star (WELS) |
| Controls | |
| Child lock | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Motor type | BLDC |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise emissions | 42dBA |
| Power requirements | |
| Amperage | 5A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 573mm |
| Height | 454mm |
| Width | 599mm |
| Warranty | |
| Parts and labour | 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
| Wash modifiers | 3 |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
| Water connection | |
| Water pressure | 30kPa – 1000 kPa |
| Water supply | 3/4″ BSP (20mm) Connector |
| SKU | 82885 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
