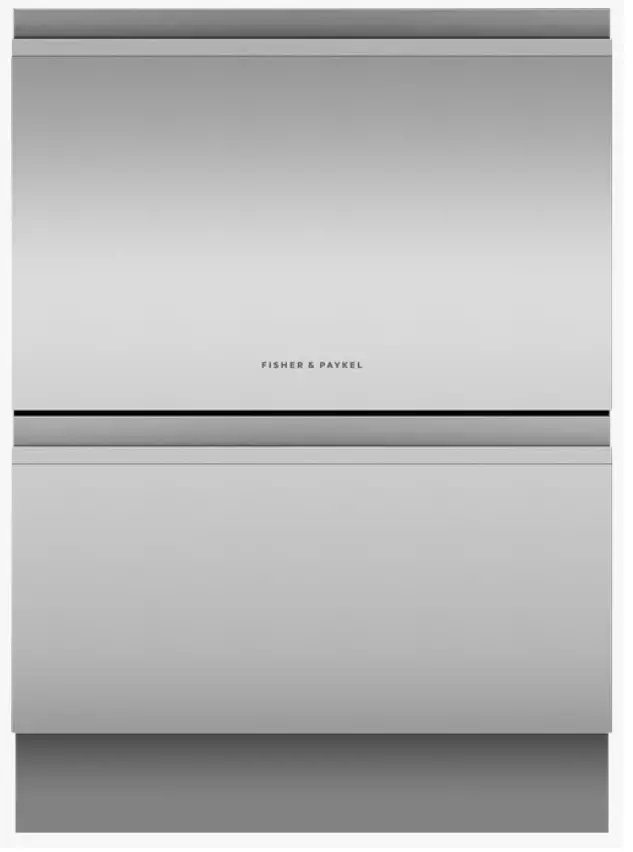

FISHER PAYKEL DD60D4NX9 Built Under Double DishDrawer Dishwasher Sanitise
Contents
Introduction
Wash one drawer while you load the other, with room in each drawer for full-size dinner plates.
- Designed to be installed under your benchtop, with recessed handles for a seamless look
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry modifiers
- Flexible racking allows you to customise internal shelves to suit your needs
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications

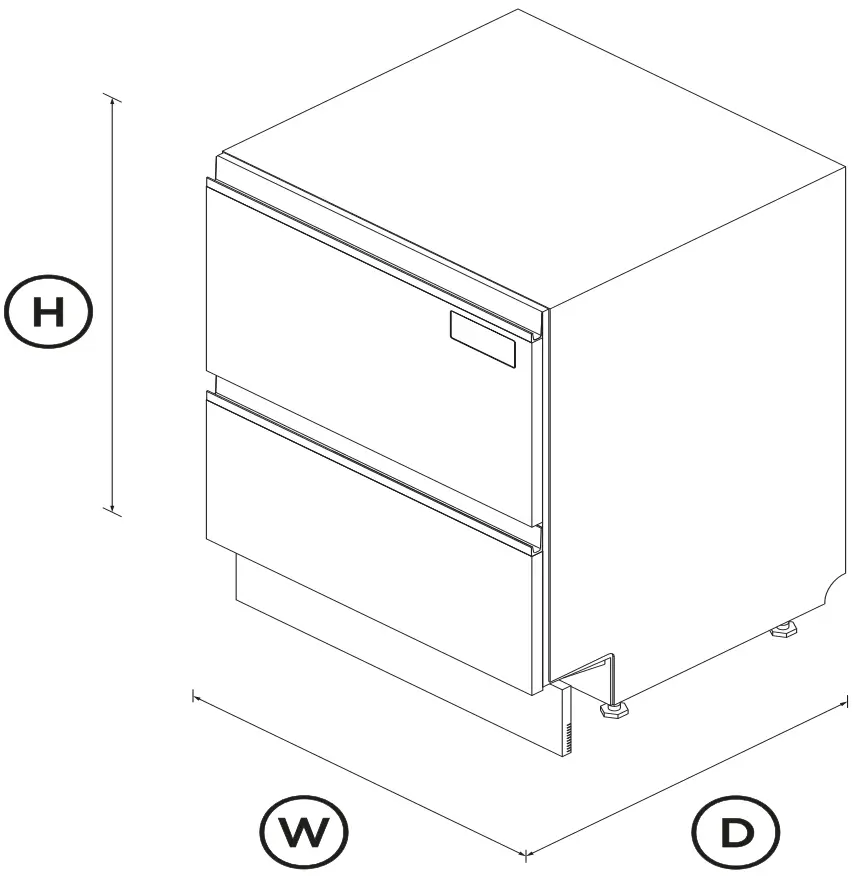

DIMENSIONS
Height 820 – 880mm
Width 599mm
Depth 573mm
FEATURES & BENEFITS
SEAMLESS FIT
Our built-under DishDrawer™ Dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps. The touch-sensitive control panel is located inside this model, leaving an uninterrupted exterior.
Designed to match the Fisher & Paykel family of kitchen appliances with recessed handles for a streamlined look.
EASE OF USE
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITISE AND EXTRA DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria* in the final rinse. The Extra Dry setting is perfect for plastic dishes. *Certified to NSF/ANSI Standard 184
TRUE HALF LOAD
Each drawer holds a true half load for small, fast washing that won’t waste water. Both drawers operate independently so two wash cycles can operate simultaneously to allow for varying loads.
KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
INDEPENDENT WASH
With the ability to use both drawers independently and select different wash programs, the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
QUIET PERFORMER
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
SPECIFICATIONS
| Accessories | |
| Cutlery basket | • |
| Kickstrip | • |
| Knife clip and multipurpose | • |
| Capacity and loading | |
| Accommodates round plates | 280mm |
| Adjustable height, foldable | • |
| Fold down tines | • |
| Place settings | 14 |
| Place settings per drawer | 7 |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 136 kWh/year |
| Water consumption (per wash | 6.9L |
| Water efficiency | 4.5 star (WELS) |
| Controls | |
| Child lock | • |
| Energy saving delay start | • |
| Internal wash selector | • |
| Knock to pause | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
| Features | |
| Fan assisted drying | • |
| Flood protection | • |
| Flow through detergent | • |
| Motor type | BLDC |
| Quiet operation | • |
| SmartDrive™ technology | • |
| Performance | |
| Noise on standard cycle top | 42dBA |
| Power requirements | |
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 573mm |
| Height | 820 – 880mm |
| Width | 599mm |
| Warranty | |
| Parts and labour | 2 years |
| Wash Program Modifiers | |
| Extra Dry | • |
| Quick | • |
| Sanitise | • |
| Wash modifiers | 3 |
| Wash Programs | |
| Delicate | • |
| Eco | • |
| Fast | • |
| Heavy | • |
| Medium | • |
| Rinse | • |
| Wash programs | 6 |
| Water connection | |
| Water pressure | 30kPa – 1000 kPa |
| Water supply | 3/4″ BSP (20mm) Connector |
| SKU | 82880 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
