familyjoy GD9215AD26SH-L Heater for Indoor User Manual

USER MANUAL
PTC SPACE HEATER
MODEL:GD9215AD26

GD9215AD26SH-L Heater for Indoor

THIS INSTRUCTION CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Please give us a chance to make it right and do better!
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped.

Safety Notices

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock or personal injury, including the following.

1. Keep away from flammable and explosive products
2. Please insert the plug with a dry hand
3. Do not touch with your hands during use
4. Do not use water, wax, polish or any chemical solution to clean
5. Keep away from places where children play
6. Do not use in wet places such as bathrooms

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit in the outlet, flip it horizontally and try again. If it still does not fit, contact a  qualified  electrician. DO NOT attempt to defeat this safety featurePlace the heater on a firm level surface where free from obstructions and at least 3 ft(0.9m) away from any wall or combustible material. Please do not disassemble the heater. Do not operate the heater with a damaged cord or plug, nor after the heater malfunctions, has been dropped, or damaged in any manner. Return heater to authorized service facility for examination, electricalor mechanical adjustment, or repair.

USE NOTES

Please read the instruction carefully before usage.

1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. Recommend to use protective gloves when moving this heater.
2. Keep combustible materials such as cloth and papers at least 3 feet away from the mess of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when the heater using near children or invalids and whenever the heater is left working and unattended.
4. Always unplug the heater when not in use.
5. Do not operate the heater with a damaged cord or plug, nor after the heater malfunctions. Return the heater to an authorized service facility for examination and repair.
6. Do not use the heater outdoors.
7. This heater is not intended for use in bathrooms, laundry areas, and similar moist indoor locations. Never locate the heater where it may fall into a bathtub or other water containers.
8. Do not run cord under carpeting. Do not cover the cord with throw rugs, runners, or the like. Arrange the cord away from traffic areas where it will not be tripped over.
9. This heater draws 12.5 amps during working. To prevent overloading a circuit, do not plug the heater into a circuit that already has other appliances working.
10. It is normal for the plug to feel warm to touch. However, a loose fit between the AC outlet (receptacle) and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
11. To disconnect the heater, first turn off the touch screen and machine, then grip the plug and pull it from the outlet. Never pull by the cord.
12. Do not allow foreign objects to enter ventilation opening or exhaust opening as this may cause an electric shock or fire, or damage the heater.
13. To prevent a possible fire, do not block air intakes or exhaust in any manner, do not use it on soft surface, like a bed, where openings may become blocked.
14. Aheater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
15. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
16. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to use an extension cord, the cord should be No.14 AWG minimum size and rated not less than 1500 watts.
17. Use of this heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.

COMPONENTS

The portable heater has a convenient carry handle, which makes it easy to move from room to room.

TOUCH SCREEN SWITCH FUNTION

1. Click Switch fo ECO mode to adjust the temperatureCurrently displayed as amblent temperature
2. Click Switch to HI mode to get high heat of 1500WCurrently displayed as amblent temperature
3. Click Switch to LO mode to get low heat of 900W
4. Click Switch to Fan modeCurrently displayed as amblent temperature
   Click Set Timer From 1 Hour to 12 Hours
   Click Start or Stop Heater’s 90° Osciliation
   Click Switch to ECO mode to adjust Thermostat from 41°F to 95°F
   (in 1°F Increments)

Note: Space Heater in ECO mode will always adjust its output based in the temperature of the ambient it is in.

REMOTE CONTROL SWITCH FUNCTIONS

Note: Switch to ECO mode to adjust thermostat from 41°F to 95°F (in 1°F Increments)

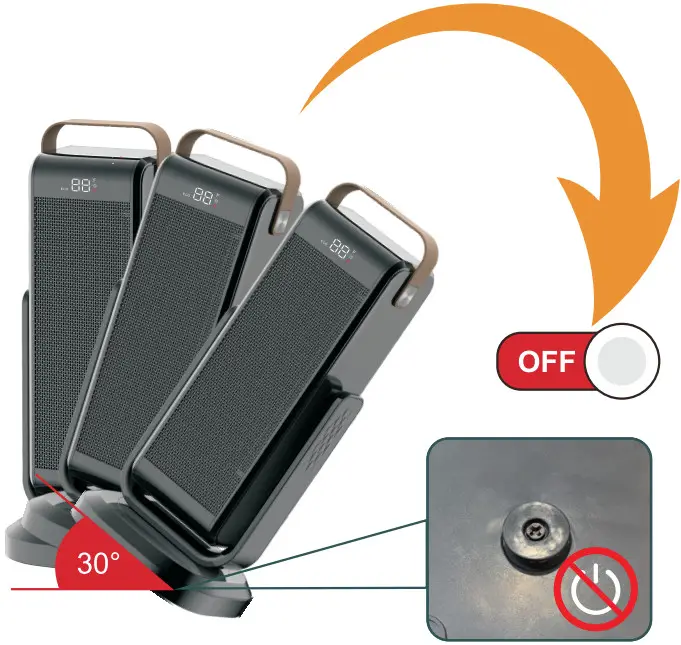

Tip-over Protection

Auto-off when knocked over

Tip-over Protection
When the heater is tipped forward or backward, or knocked down by accident,the tip-over switch in the bottom will activate and shut off the heater automatically.So please put it on a flat surface to use the heater.
Tips: after tipping over, if you want to continue using it, place it horizontally, then turn on the power switch and reset the mode you want.

Overheat Protection

It’s well designed for your safety. The automatic overheat protection system will shut the unit off when the parts of the heater overheat.

IF YOUR HEATER FAILS TO WORK

1. Be sure the heater is plugged in the electrical outlet well, and the outlet is working.
2. Check for any obstruction. If you find any obstruction, turn off and unplug the heater and wait at least ten minutes for it to cool. Carefully remove the obstruction. Plug the heater back in and restart it.
3. If the issue still exists, remove the plug from the socket and have the appliance serviced by authorized service personnel only.
4. Check whether the thermostat is set too low. If this is the case, use the remote control to adjust the thermostat heating button until the heater restarts.

CLEANING AND STORAGE

We recommend the heater to be cleaned at least once a month and before off season storage.

1. Turn the heater off and unplug it. Allow it to cool.
2. Use a dry cloth to clean the external surfaces of the heater.
   NOTE: DO NOT USE WATER, WAX, POLISH, ORANY CHEMICAL SOLUTION.
3. Pack the heater in its original container and store it in a cool, dry place.
4. Please do not disassemble the heater. Its motor is factory lubricated for life and will require no further lubrication.

TROUBLESHOOTING

If the usage method is wrong, the following symptoms will occur and it is considered a malfunction.
Please check with the following table before discussing with the seller.

Symptom	Reason	Method
The power cannot be turned on, there is no warm air	Is the power plug unplugged from the socket?	Please insert the power plug into the socket correctly.
	Is the placement of the product unstable?	The Tip-over Protection Switch Shut off. Please use it in a flat and stable place.
The power plug is hot abnormally	Is the contact part of the socket loose?	Adjust the socket.
	Are you using a power strip or an extension cord?	Use the socket alone.
Peculiar smell	There will be a little peculiar smell when you first use it.	The smell disappears with use.
No memory function	The power cord is unplugged or turns off automatically due to tilt	Click the on/off button to switch off the heater without disconnecting the power cord

SPECIFICATIONS

Model No.	GD9215AD26
Voltage	120V
Frequency	60Hz
Height( inch)	7.2X6.9X16.5
Weight(Ib)	4.1
Oscillation	90°
Noise	Ultra quiet
Safety Protection	Tip-over Protection/ Overheat Protection
Mode Options	ECO/LO(900W)/ HI(1500W)/Fan Mode
Usage scene	Indoor use/bedroom/ office/living room
Temperature Range (ECO MODE)	41° F ~95° F

Customer Care Service

We offer a 12 month warranty for this heater. During the warranty period, if there is a quality problem with the product, you are entitled to get a free replacement or request  a request a refund. It will be much appreciated if you contact us for a solution first. This is a big help to improve our products and after-sale service.
