22201-519 Dwide Recessed
Instruction Manual
Contents
22201-519 Dwide Recessed
Printed from fagerhu lt.co m 2023-11-16
Art.no. 22201-519
EAN 7320047454868
Recessed w workplace luminaire in three sizes. The delta louvre provides efficiency and optimal light comfort, light divider in acrylic distributes light evenly in the reflector.
Installation Recessed mounting in suspended ceilings. Unventilated or ventilated ceilings.
VTB — for suspended ceilings with visible T-bars 15 or 24 mm.
HB— recessed frame allows 600×600 to be installed in suspended ceilings with concealed T-bars and symmetrical ceiling tiles (thickness 20-22 mm).
Connection Connection in separate ballast box. Snap-in terminal block 3×1,5 mm2 (x2), through-wiring possible. 5×1,5 mm2 (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.
Design Lu mina ire body of white enamelled sheet steel (RAL 9016).
Louvre Delta — micro prism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) on the inside (PMMA). Light divider in acrylic (PMMA).
Dimming Organic Response— PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.
Miscellaneous Class III applies to the luminaire body only. The supplied driver should be connected to protective earth. e-Sense Organic G3 is available in multiple variants on request. Ra (CRI) 90 on request.
Dwide recessed
Direct, V TB
DESIGN
| Installation V TB Light distribution Direct Colour White |
Module 600×600 Louvre Delta |
LIGHT DATA & PERFORMANCE
| Lumen output 4390 CCT, K 4000 SDCM 3 Lumen maintenance 75 000 h L85 Lumen maintenance L80 B50, h 100000 LED driver, h/max failure % 100000/10 |
lm/W 137 CRI 80 Lumen maintenance 50 000 h L90 Lumen maintenance 100 000 h L80 Lumen maintenance L90 B50, h 50000 Energy class, LED module C |
CON TROLS & CON N ECTIVITY
Driver brand Thionic
ELECTRICIT Y & EN CLOSURE
| Rated supply voltage, V 220-240 Protective class 1 System Wattage 32 Max. ambient temperature, °C 25 MCB B16A 17 MCB C16A 28 Surge protection CM , kV/kA 2 Power factor, 100 % 0.95 |
Mains frequency, Hz 0, 50, 60 IP rating 20 Min. ambient temperature, °C -25 MCB B10A , pcs 11 MCB C10A 18 THD, % 12 Surge protection DM , kV/kA 1 |

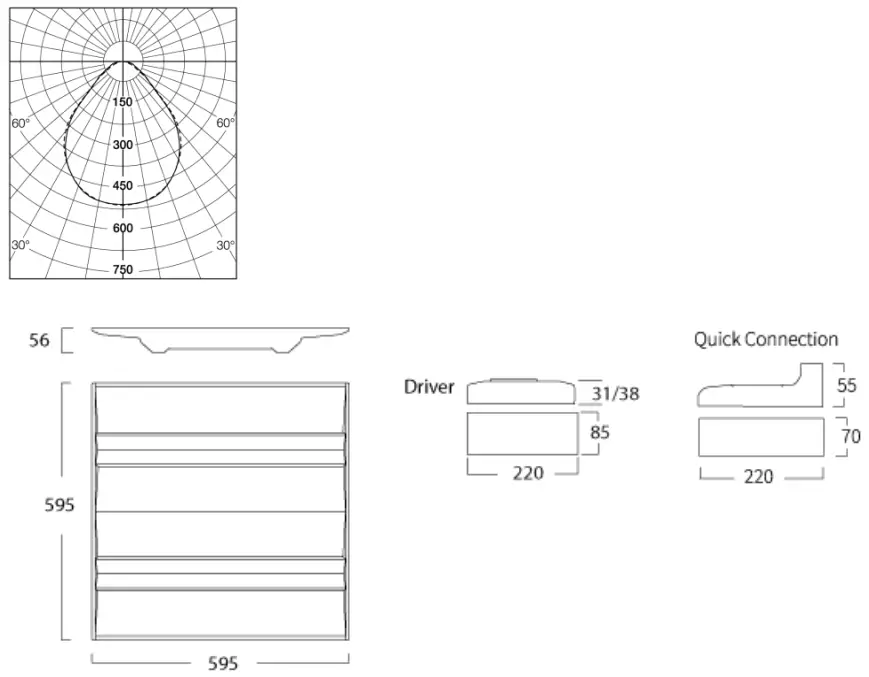

DIMENSIONS
| Length, mm 595 Height, mm 57 |
Width, mm 595 Weight, kg 3.6 |
