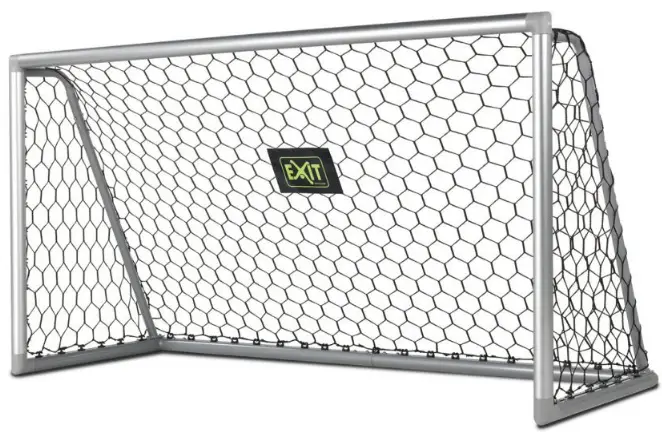

EXIT TOYS EXIT Scala 220×120 Soccer Goal

EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-PRODUCT

Product Information

Product Name: Soccer Goal

Model: EXIT Scala 220×120

Part Number: MSP-400-V01

Product Usage Instructions

  1. Assembly:
    • Identify the parts using the provided list:
      • 1x 72.22.12.01
      • 4x 72.22.12.02
      • 2x 72.22.12.03
      • 2x 72.22.12.04
      • 2x 72.22.12.05
      • 4x 72.95.01.00
      • 2x 72.50.22.00
      • 2x 72.95.03.00
      • 1x 72.22.12.00
      • 60pcs Hooks (H1)
      • 12pcs Detachable Hooks (H2)
      • 36pcs M8x25MM Screw (S1)
      • 36pcs Metal Washer (S2)
      • 36pcs Plastic Washer (S3)
      • 2 sets of 8X40MM Screw/Metal Washer (S4)
      • 1pc 5mm Hexagon Wrench (T1)
      • 1pc 4mm Hexagon Wrench (T2)
    • Follow the provided diagrams and instructions to assemble the soccer goal.
    • Use the appropriate screws, washers, and tools to secure the parts together.
  2. Net Attachment:
    • Attach the nets to the soccer goal using the hooks anddetachable hooks provided.
    • Refer to the red label in the upper left corner of the nets for proper orientation.
  3. Installation:
    • Select a suitable location for the soccer goal.
    • Prepare the ground by drilling holes with a diameter of 12mm and a depth of 40mm.
    • Remove any debris from the holes.
    • Position the soccer goal over the holes and secure it using the provided screws and washers.

EXIT Scala 220×120EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 1

Soccer Goal
EXIT Scala 220×120EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 2

PartsEXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 3

InstallationEXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 4 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 5 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 6 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 7 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 8 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 9 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 10 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 11 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 12 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 13 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 14 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 15 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 16 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 17 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 18 EXIT-TOYS-EXIT-Scala-220x120-Soccer-Goal-FIG 19
