Eurotech Showers KD60 Traditional Dual Sliding Bathtub Shower Door Instruction Manual
SUPER EASY INSTALL
Contents
Tools Required
- Silicone
- Level
- Drill
- Masonry Bit
- Screwdriver (Phillips)
- Mallot
- Pencil
- Tape Measure
- Painters Tape
- Allen Wrench (included)
This product is heavy and may require two people to install.
Congratulations on your purchase of your Eurotech Shower door, making your shower dreams come to life.

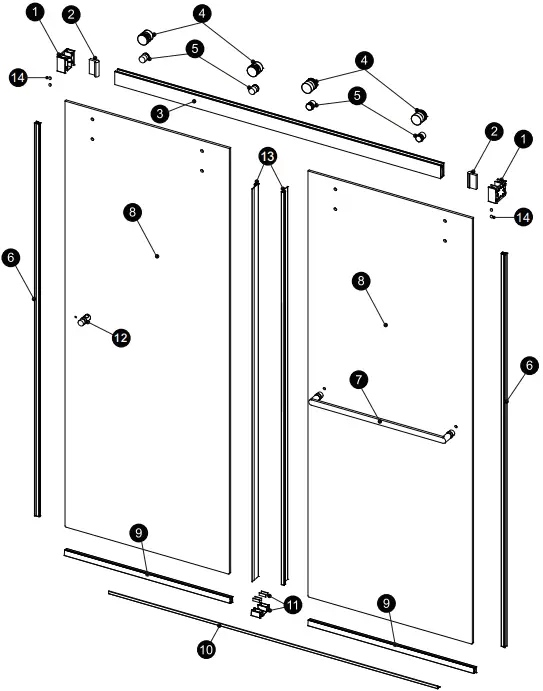

Assembly Drawing
PACKING LIST
| PART # | DESCRIPTION | QTY | PART # | DESCRIPTION | Q’TY |
| 1 | Wall Jamb | 2pcs | 6 | Towel Bar | 2set |
| 2 | Glass Guides x 6 | 6sets | 7 | Door Panel | 2pcs |
| Bumper Blocks x 6 | 8 | Bottom Guide | 1 pc | ||
| 3 | Washers | 6pcs | 9 | Bottom Sill | 1 pc |
| 4 | Track | 1 pc | 10 | Blind Fastener | 2pcs |
| 5 | Roller Bracket | 4sets | 11 | Metal Receiver Knob | 1 pc |

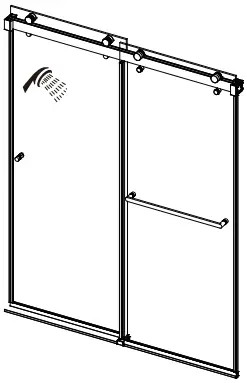

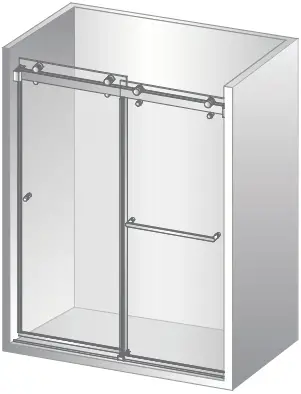

outside door right

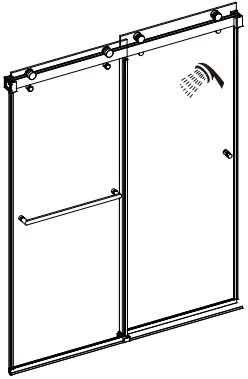

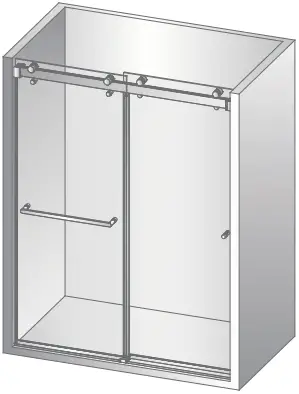

outside door left

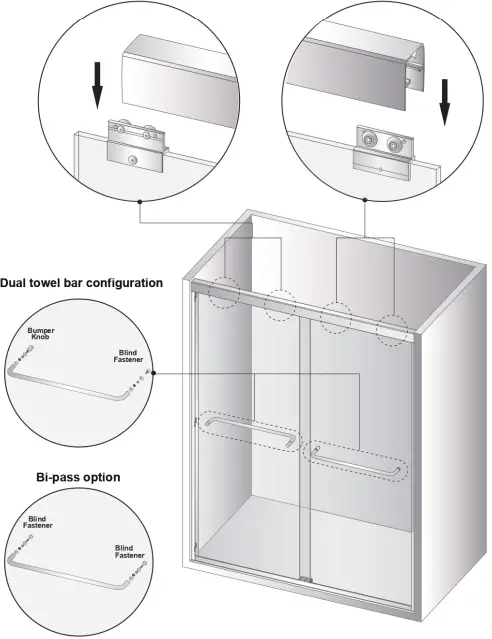

Bar Installation: Mount wall bracket on high side first. Level bar to mark opposite wall for second wall bracket.
outside door right
