LENORA 48103
INSTRUCTION MANUAL
Contents
48103 Lenora Rectangular Wall Mirror
Thank You
You’ ve just purchased a lighting product designed and built to provide you with years of enjoyment.
58W MAX,LED,120V~,60Hz
(LED driver included)
IMPORTANT SAFETY INSTRUCTIONS
- Attention to installer, must test the light fixture before installation.
- When using an electrical furnishing, basic precautions should always be followed, including the following:
- Read all instructions before using (this furnishing).
- DANGER – To reduce the risk of electric shock: Always unplug this furnishing from the electrical outlet before cleaning or servicing.
- WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:
- Unplug from outlet before putting on or taking off parts.
- Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
- Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
- Never operate this fumishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
Return the furnishing to a service center for examination and repair. - Keep the cord away from heated surfaces.
- Never operate the fumishing with the air openings blocked. Keep the air openings free of lint, hair, and the like.
- Never drop or insert any object into any opening.
- Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
- To disconnect, turn all controls to the off position, then remove plug from outlet.
- WARNING: Risk of Injury – Keep children away from this furnishing.
- WARNING: Risk of Electric Shock – Connect this furnishing to a properly grounded outlet only. See Grounding Instructions.
- GROUNDING INSTRUCTIONS:
– For a permanently connected product: This product must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the product.
– For a grounded, cord-connected product rated max 15 amperes and intended for use on a nominal 120-volt supply circuit :
– This product is for use on a nominal 120-volt circuit and has a grounding plug. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product. - For loading always put heavier items at the bottom and not near the top in order to help prevent the possibility of the furnishing tipping over.
- WARNING: Risk of Injury to Persons – do not use this furnishing to support video equipment such as televisions or computer monitors.
- Mount furnishings at the correct height.
- This unit is suitable for installation in a damp, indoor location only.
- This unit is to be mounted to a metal electrical junction box (outlet box) directly supported by the building structure.
- Save this instructions for future reference.
- Estimated Assembly Time: 20 minutes
Tools Required For Assembly (not included): Flathead screwdriver, Phillips screwdriver, Pliers, Electrical tape and Wire cutters.
Helpful Tools (not included): Wire strippers, Ladder.

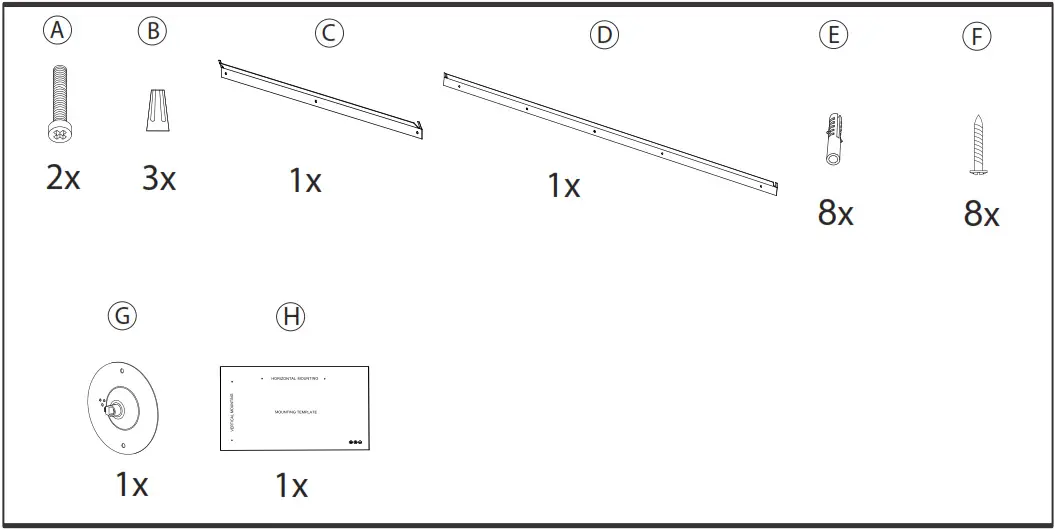

HARDWARE INCLUDED
Option 1:
OPERATION INSTRUCTIONS
 |
Short touch: ON and OFF Press and hold: Dimmable |
 |
Short touch to turn ON and OFF for the defogger function. Automatic turn off after 1 hour. |
 |
Short touch to adjust the colour temperature: 3000K (Warm), 4500K (Neutral), 6400K (Cool). Press and hold: Stepless CCT. |
Option 2:
Customer Service & Tech Support: 905-695-2147
Email: [email protected]
33 West Beaver Creek Rd, Richmond Hill,
Ontario Canada L4B 1L8
