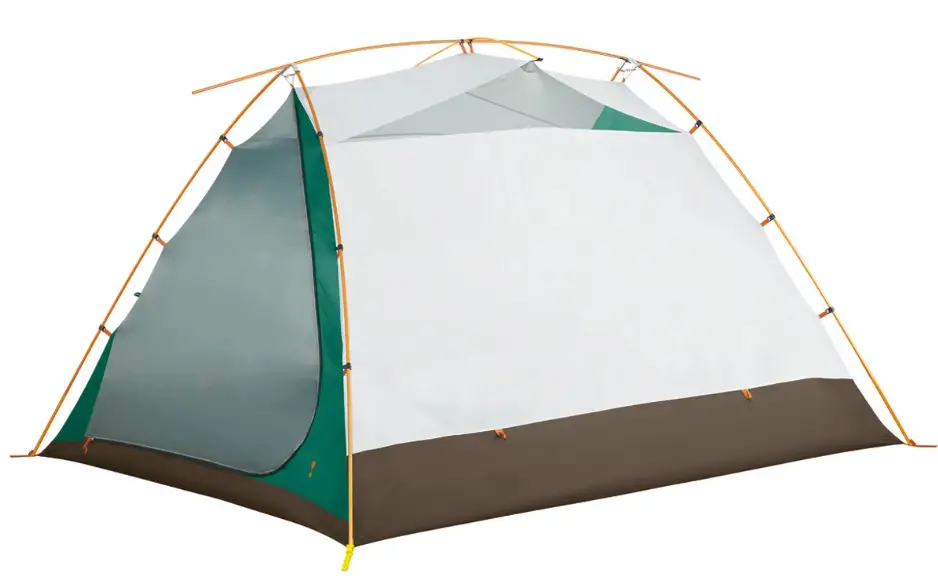

Eureka 2629220 Timberline SQ Outfitter 6 Person Tent
Contents
ASSEMBLY INSTRUCTIONS
- Identify all tent components (see list below).

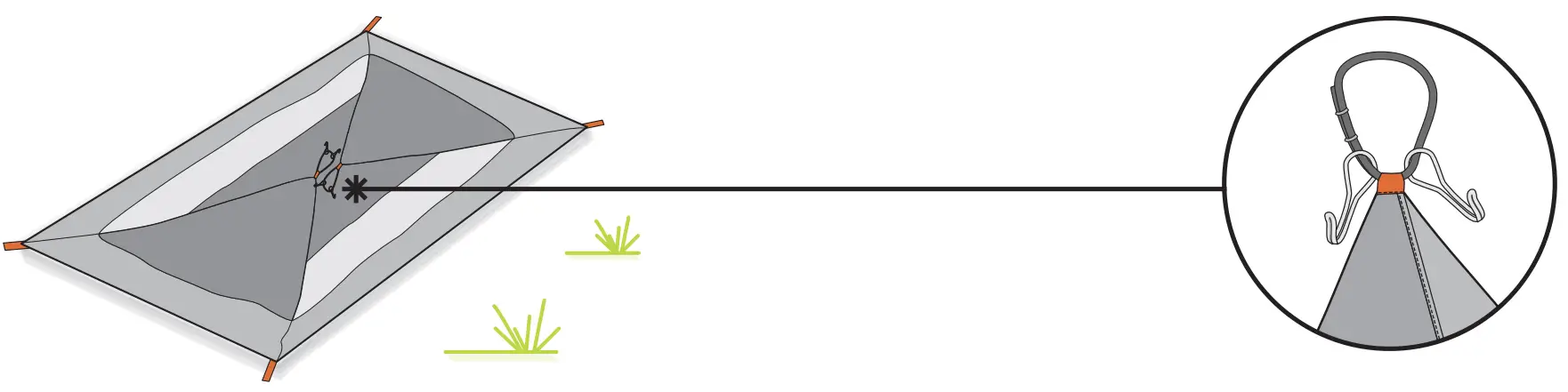

- Spread out tent body and locate 4 corners and peak shockcord.
- Assemble 4 leg poles and ridge pole.

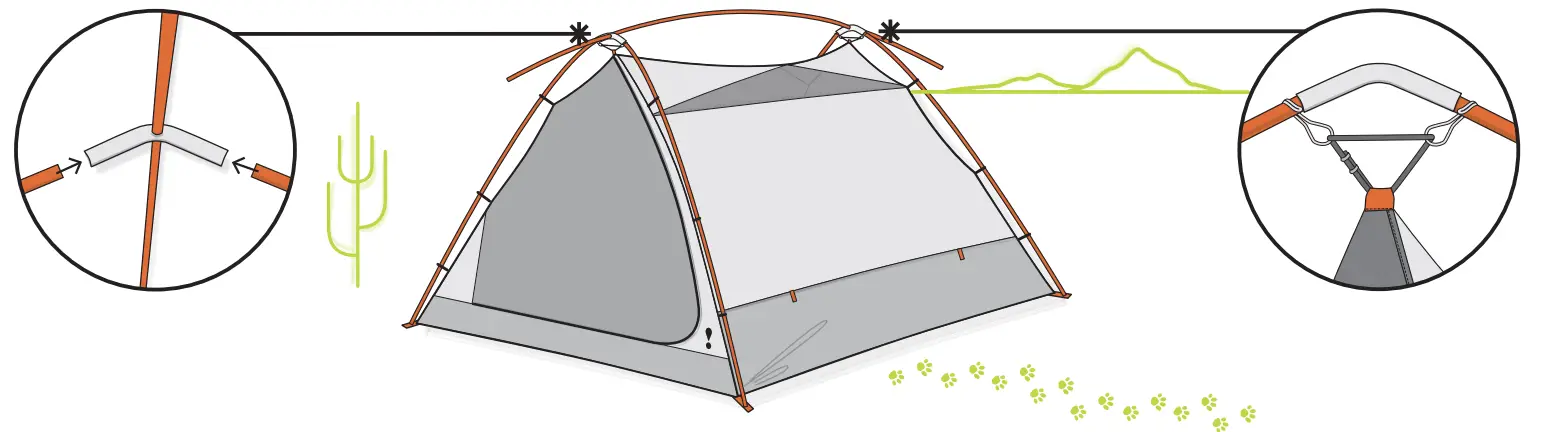

- Verify hub orientation and insert leg poles into both peak hubs.
- Hook peak shockcord around peak hubs as shown.

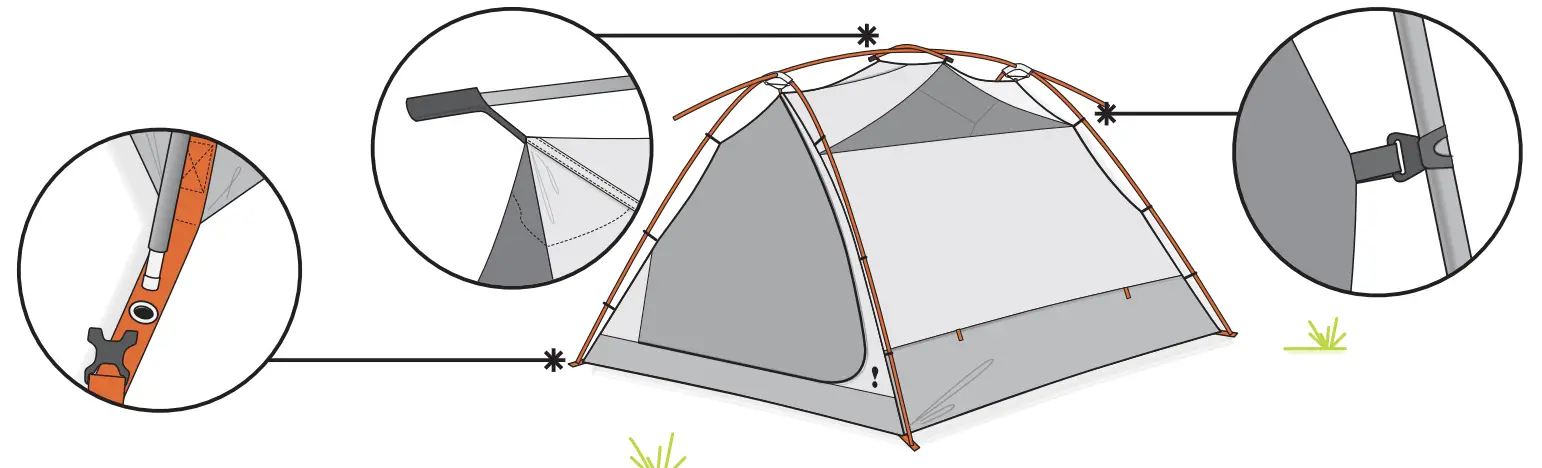

- Insert spreader pole into webbing pockets located on tent roof.
- Insert leg pole tips into webbing grommets at 4 corners.
- Attach all clips to poles and stake down 4 corners using plastic stakes.

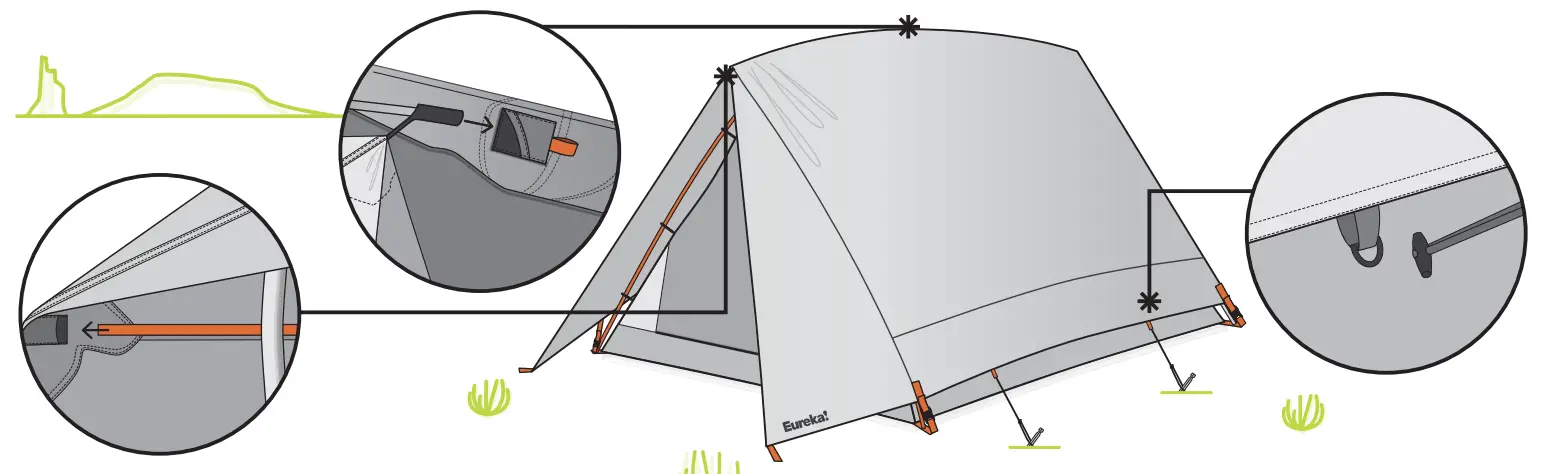

- Place fly over tent body. Insert spreader pole pockets into webbing pockets located on underside of fly.
- Insert eave pole extensions into webbing pockets located on underside of fly.
- Connect hook and loop fasteners located on underside of fly around leg poles. Attach 4 toggles on underside of fly to tent body rings.
- Secure fly to tent by attaching corresponding buckles on tent fly and body. Stake down side pullouts and vestibules using 8 steel stakes.
TENT TIPS
- Always stake down tent, including all guyout points.
- Increase interior airflow by opening the windows in favorable weather.
TENT CARE
- Make sure the tent is completely dry, then store loosely rolled in a dry cool place.
- Clean your tent by setting it up and wiping it down with a mild soap and lukewarm water. Never use laundry detergent, washing machines or dryers.
WARRANTY
- Your Eureka! tent is covered by a limited lifetime warranty. For more details please visit the website or contact customer service.
TENT CONTENTS
- Tent body+ Tent fly
- Leg poles (4)
- Ridge pole assembly with hubs (1)
- Spreader pole (1) short
- Frame field repair sleeve (1)
- Steel stakes (8) + Plastic stakes (4)
- Guylines (4)
QUESTIONS?
Johnson Outdoors Gear, Inc.
USA: 1-800-572-8822
www.eurekacamping.com
Johnson Outdoors Canada
Canada: 1-800-263-6390
www.eurekatentscanada.com
