Etman ETLED ISO Adjustable LED Downlight Instruction Manual

ETLED ISO
Adjustable LED -downlight

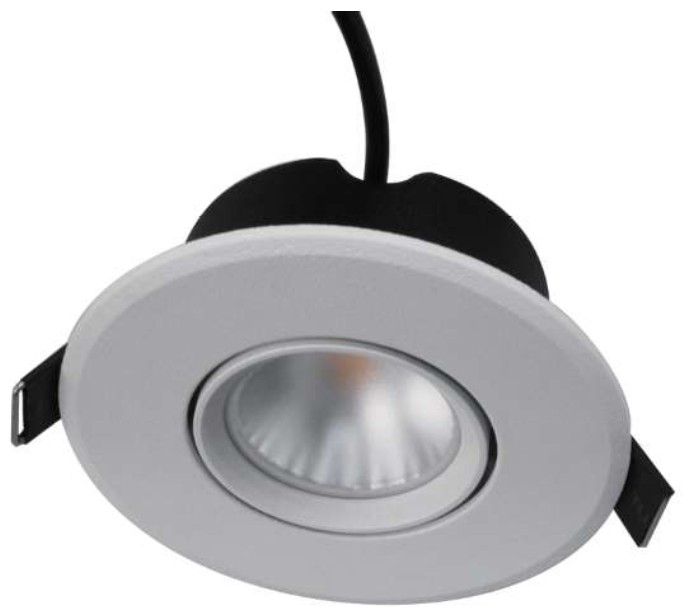

ETLED ISO Adjustable LED Downlight

E-nr	Name	LED color	Color	Total Effect	Ra index CRI	Lumen
3200559 7464927 4142454	ISO MW	2700K	Matt-White	6.5W	93	440
3200561 7464929 4142456		3000K				520

LED-Driver	Effect	Connection
Dimmable Converter	DC 15V≈ 6W 350mA	Pri. 6×0.75-2.5mm² Sec. 2×0.75-1.5mm²

6.5KWh/1000h

Symbols

	Confirms EN-60598.
	Intended both for indoor and outdoor use.
	Can be mounted directly against the insulation.
	Protection for temperatures above 110 .
	Indicates the luminaires adjustability.
	Min-Max Ambient temperature.
	Independent control gear.
	Can be mounted on flammable surfaces.
	Intended for indoor use.
	Quick connector.
	The product should have at least 70% lumen maintenance for projected number of operating hours.
	Lifetime in hours.
	Working current.
	Dimmable.
	Beam angle.
	LED light source.

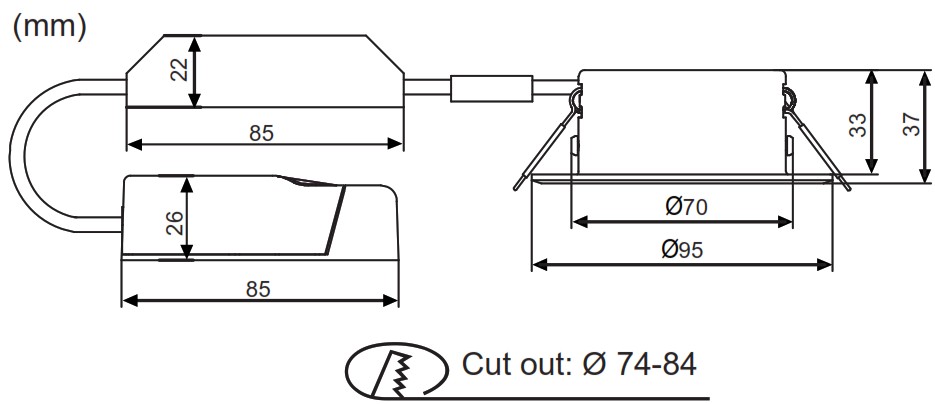

	Measurement of the cut out.
	Isolation class II.
	Insulation.
	Working voltage.
	Safety class III.
	Number of switching cycles before the light source breaks.
	Restriction of the use of certain hazardous substances in electrical and electronic equipment.
	Drip-proof design and protection against objects larger than 5mm.
	Suitable for mounting directly on flammable surfaces, such as wood.
	Touch-proof design for dry indoor environments.
	Can be mounted in insulated ceilings together with downlight box.
	Splash proof protection against splashes from all directions.
	Safety extra low voltage.
	European certification mark for EMC.
	The WEEE symbol, indicating separate collection for WEEE – Waste of

SAFETY INSTRUCTIONS

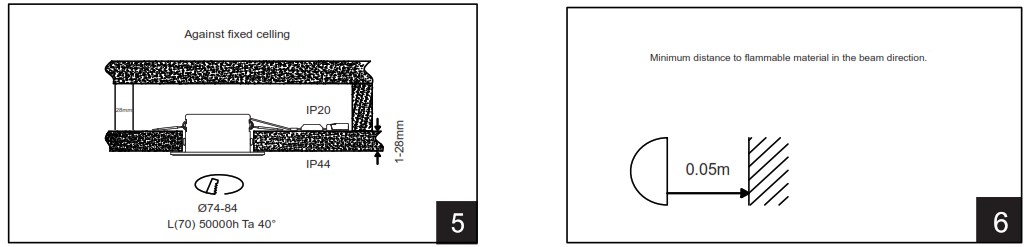

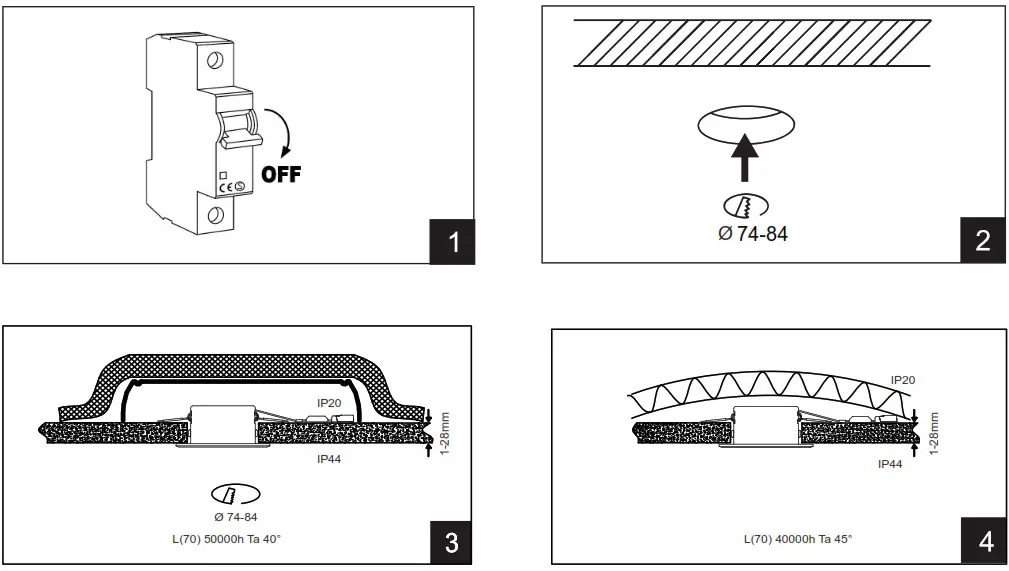

Read these instructions carefully before commencing installation and retain for future reference. The luminaire should be installed by a licensed electrician and in accordance with local regulations. Make sure that the power is off before installation or maintenance. Install as described below.

Version: 2016/05
