etac 28423 Prio Attendant Brake Instruction Manual

 etac 28423 Prio Attendant Brake

Product Information

The product is a vehicle with rear wheel positions and requires assembly. The product manual provides assembly instructions that include a list of parts and their quantity, along with their positions. The manual also includes information on how to adjust the brakes for proper functioning.

Product Usage Instructions

1. Begin by assembling the product using the assembly instructions provided in the manual.
2. Refer to the list of parts and their positions while assembling the product.
3. Once the product is assembled, adjust the brakes for proper functioning by following the below steps:
   1. Loosen nut (A).
   2. Loosen/tighten screw (B) until proper brake function is achieved.
   3. Tighten the nut (A).

Note: It is important to follow the instructions carefully while assembling and using the product to ensure safe and proper usage.

Assembly instructions

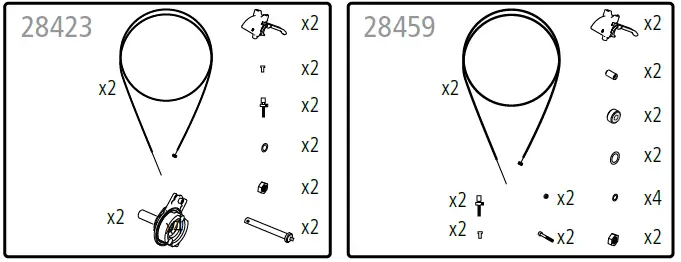

Assembly kit Drum Brake System Prio: 20”, 22”, 24”/16”

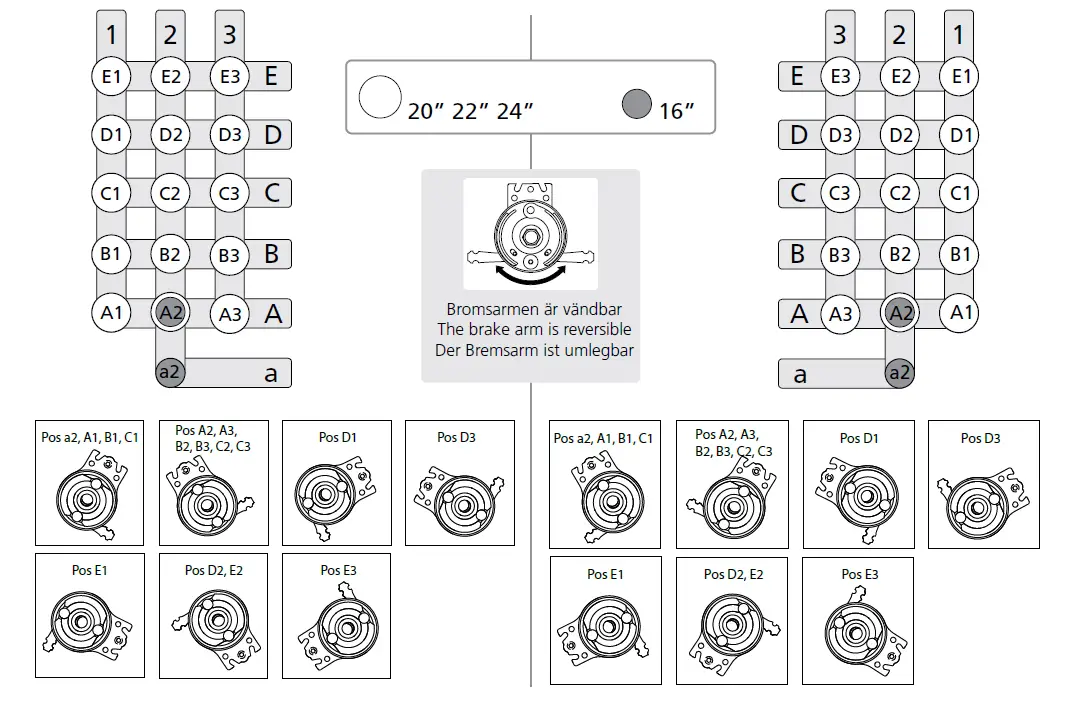

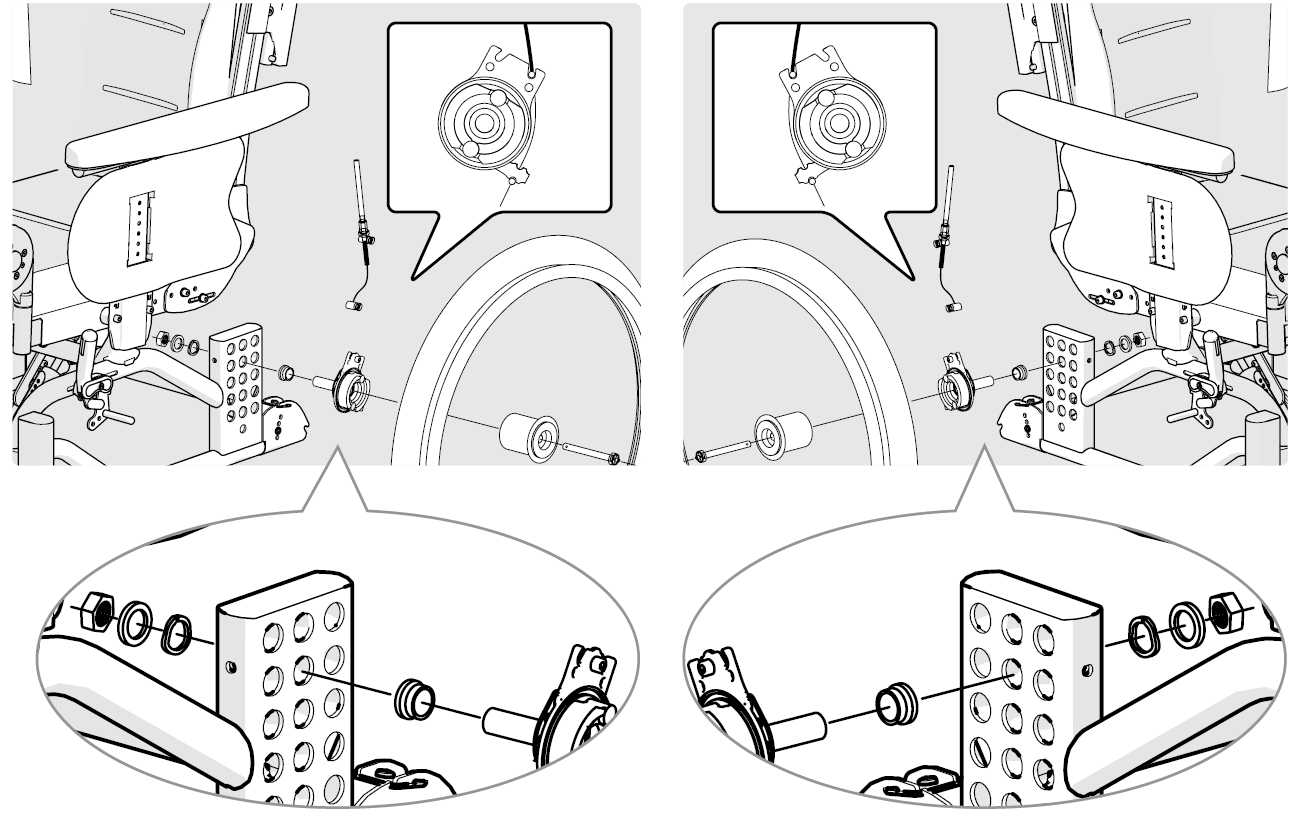

Rear wheel positions

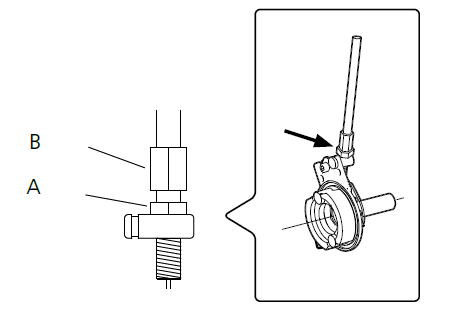

To adjust the brakes, loosen nut (A). Loosen/tighten screw (B) in order to reach proper brake function. Tigh-ten the nut (A).

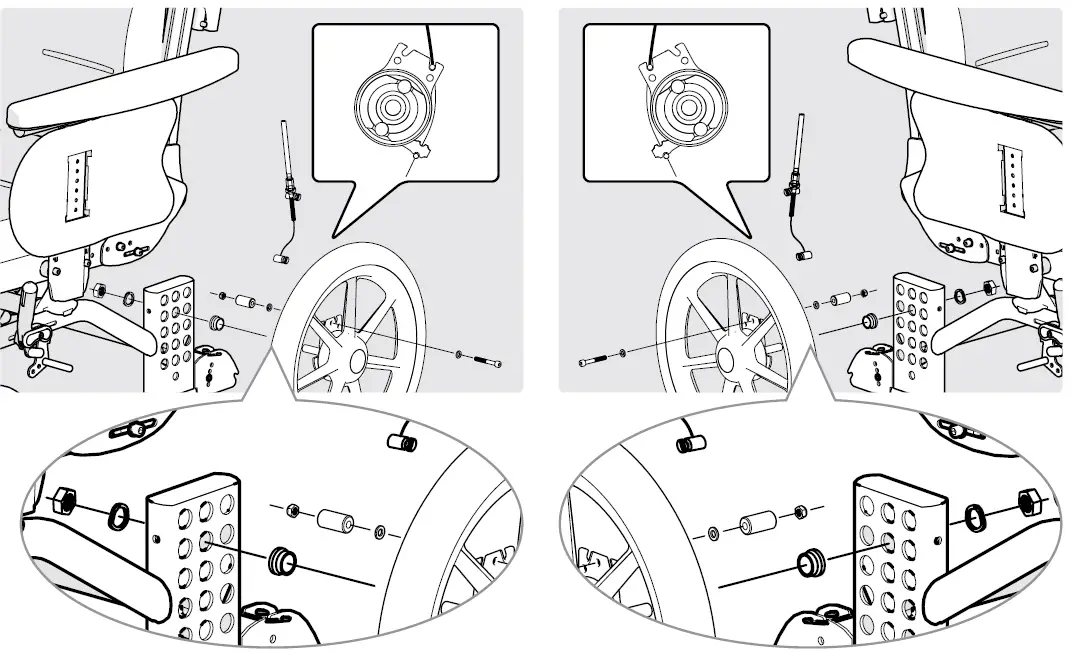

INSTALLATION INSTRUCTION

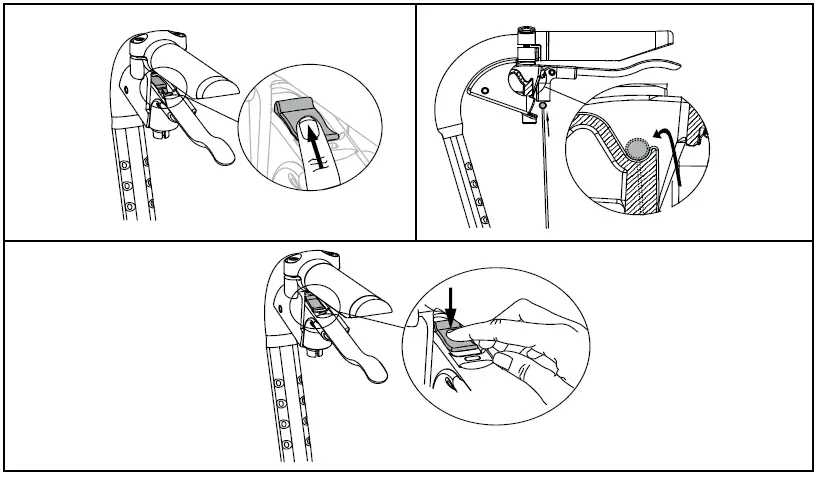

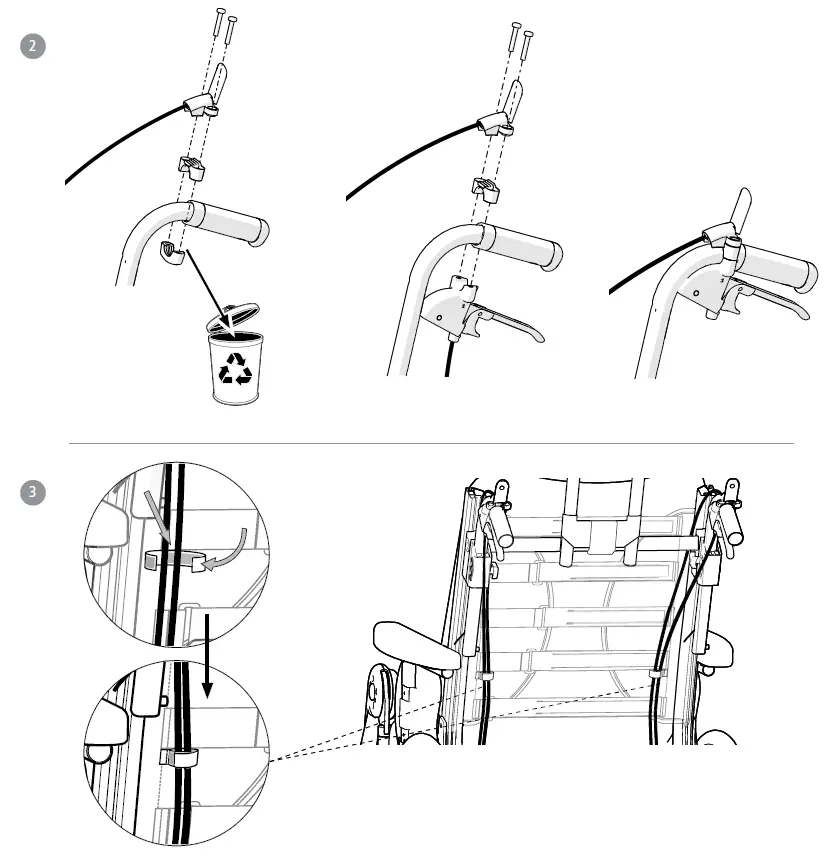

Attach of the brake wire

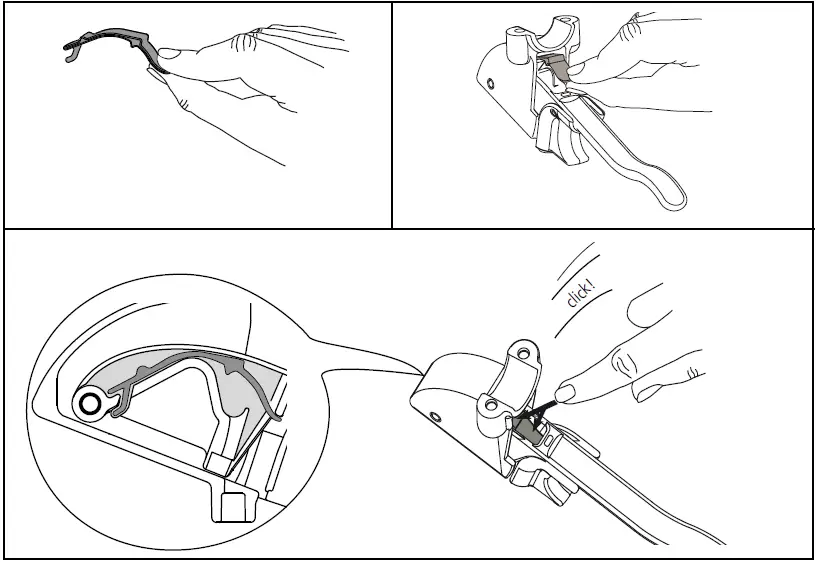

If the wire lock is lost

Etac Supply Center
AB Långgatan 12
SE-334 33 Anderstorp
www.etac.com
