Electric Standing Desk
Instruction Manual
EGESD13B / EGESD13V
Rev00(A)
Contents
EGESD13B Electric Standing Desk Adjustable Height with Storage Bag
Technical Support:
1-800-651-9525 (US/CA)
44-808-196-3875 (UK)
Mon–Fri, 8am–8pm (CST)
Mon–Fri, 2pm–10pm (UTC)
Other Info: [email protected]
Website: https://ergear.com

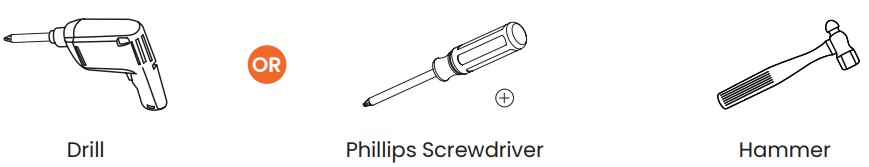

Tools Needed (Not lncluded)
Specifications
Height Adjustment Range
28.3”–46.5” (72-118cm)
Step 1

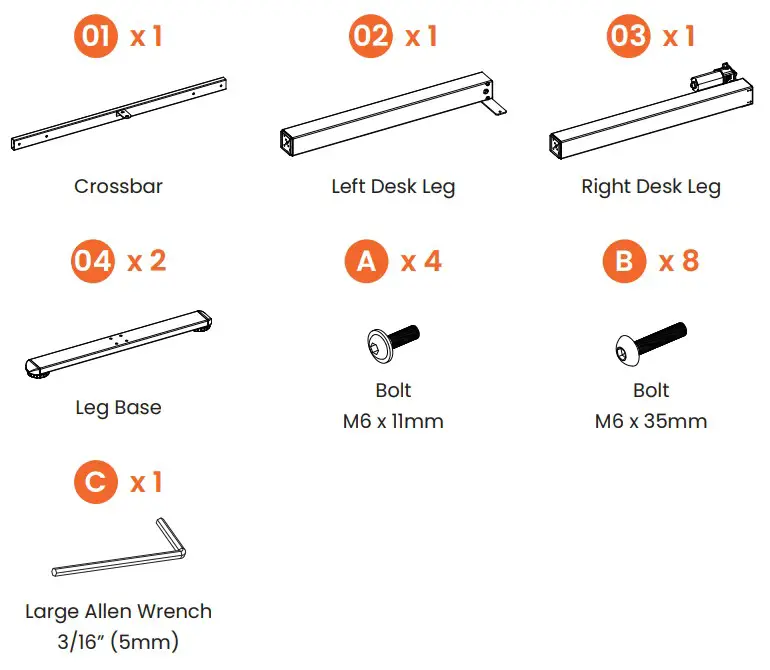

Supplied Parts and Hardware
Step 2

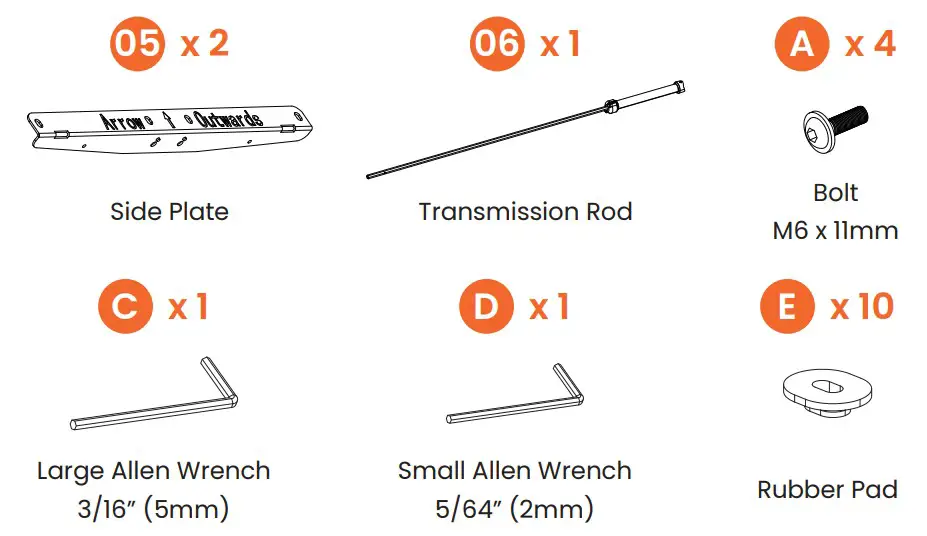

Supplied Parts and Hardware
Step 3

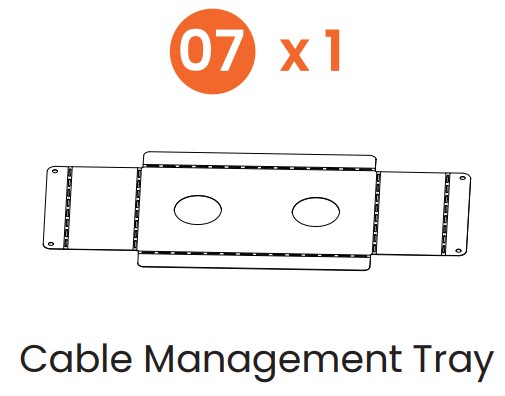

Supplied Parts and Hardware
Step 4

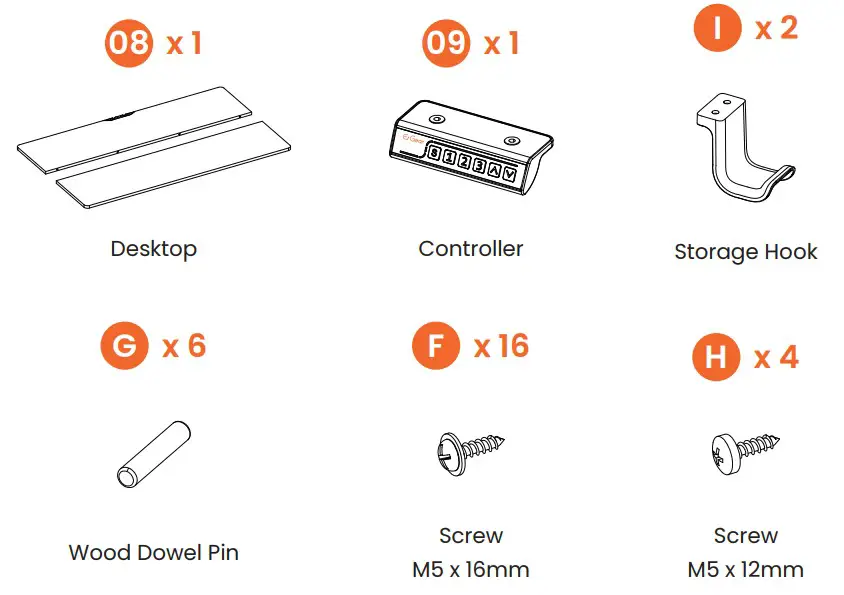

Supplied Parts and Hardware

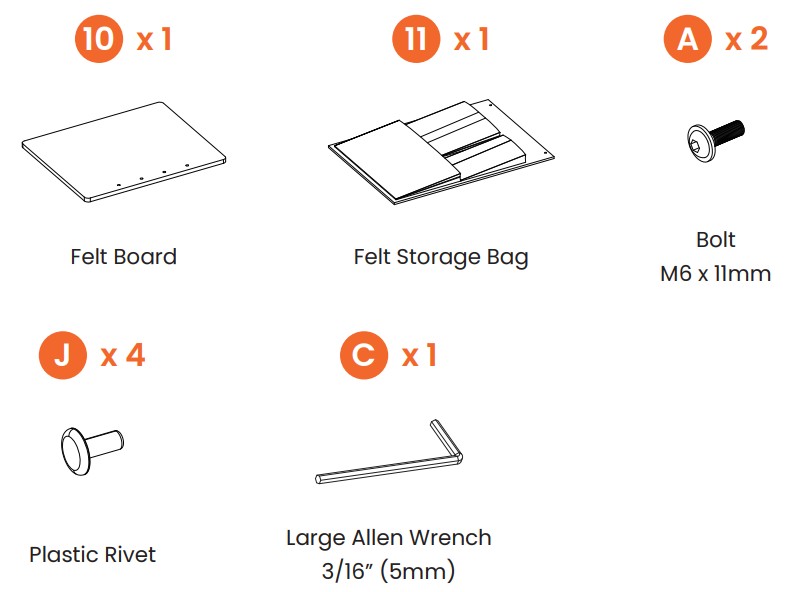

Step 5
Supplied Parts and Hardware
Step 6

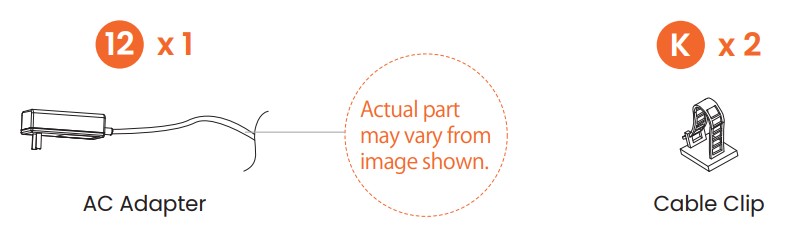

Supplied Parts and Hardware
Step 7
Supplied Parts and Hardware
Step 1 Assembling the Desk Legs and Bases

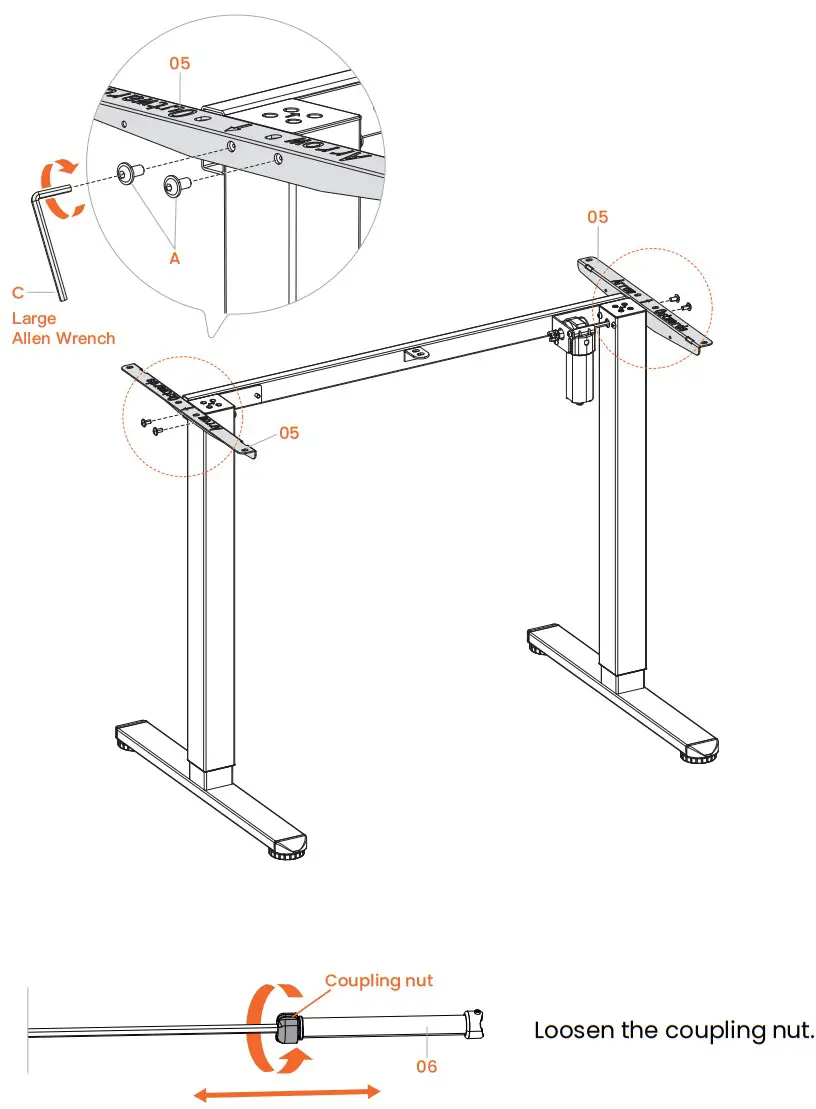

Step 2 Attaching the Side Plates and the Transmission Rod

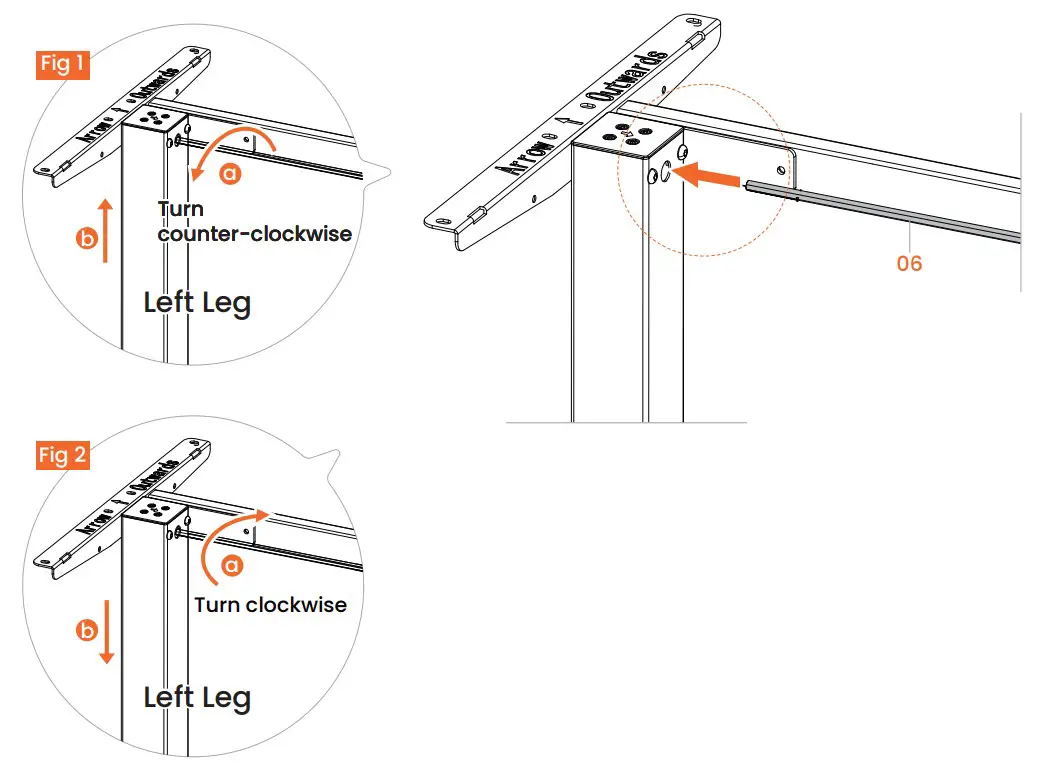

Before attaching the transmission rod, measure the height of each desk leg to see if they are set at the same level. If not, insert the transmission rod into the hole in the left leg. Turn the rod to adjust the left leg until it is level with the right leg. Turn the rod clockwise to lower the left leg or counter-clockwise to raise it.

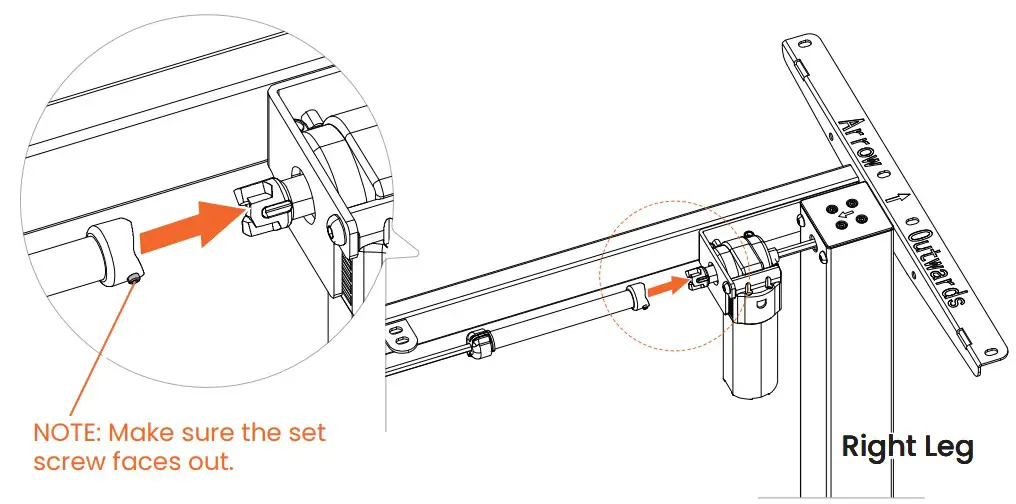

Ensure the transmission rod is properly inserted into the hole in the left leg. Smoothly connect the other end of the rod to the end of the motor drive shaft on the right leg.

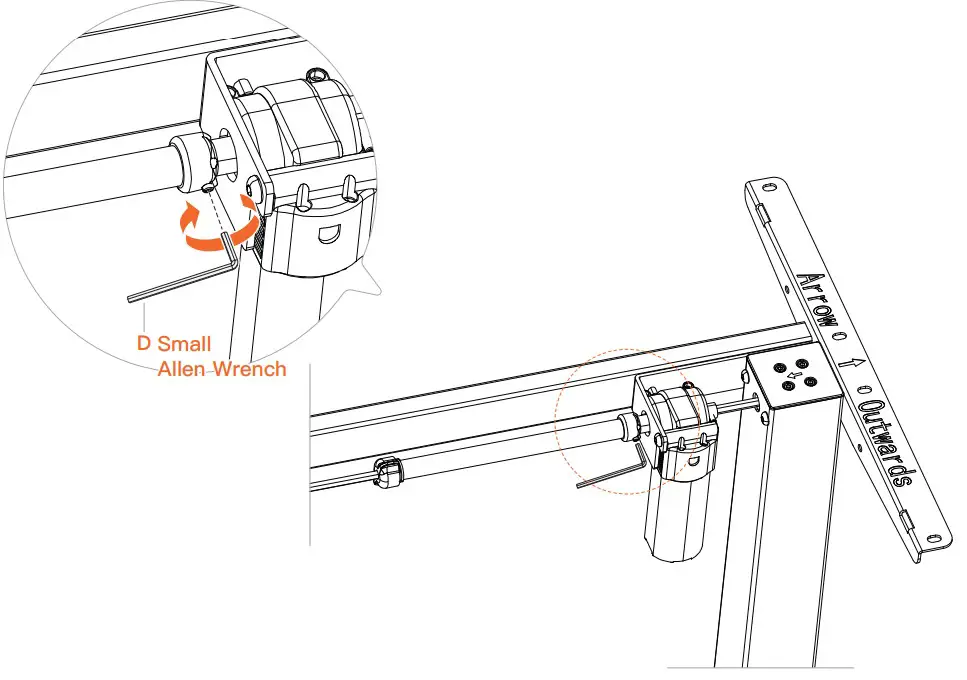

Secure the transmission rod to the motor drive shaft by turning the set screw clockwise.
Tighten the coupling nut to fine-tune transmission rod fit.
Step 3 Using the Cable Management Tray

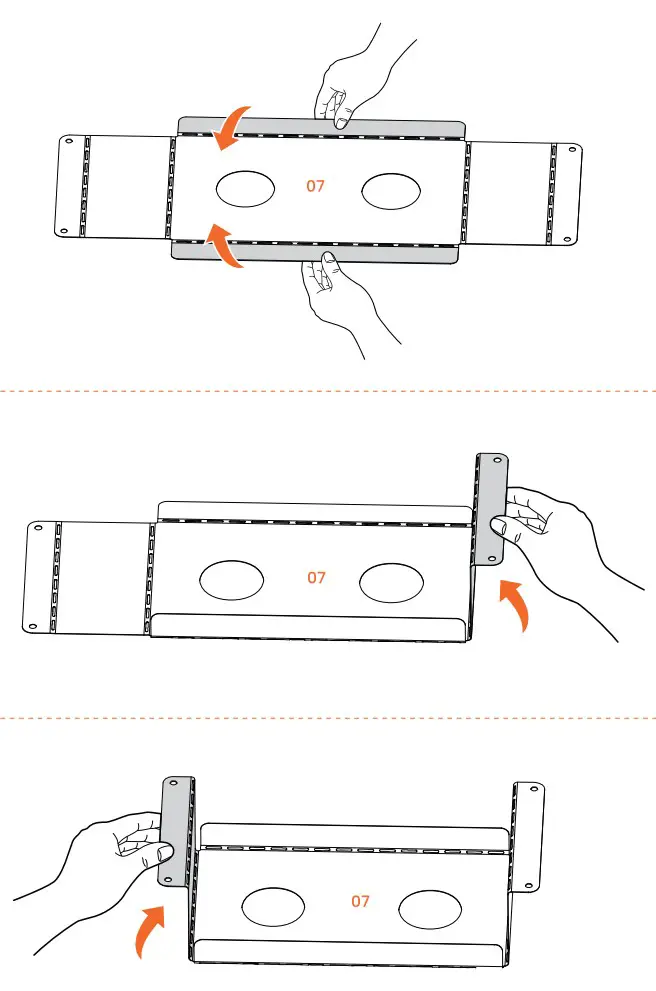

Fold the cable management tray [07] along the dashed line.
WARNING:
Be careful not to cut your fingers.
Step 4 Assembling and Attaching the Desktop

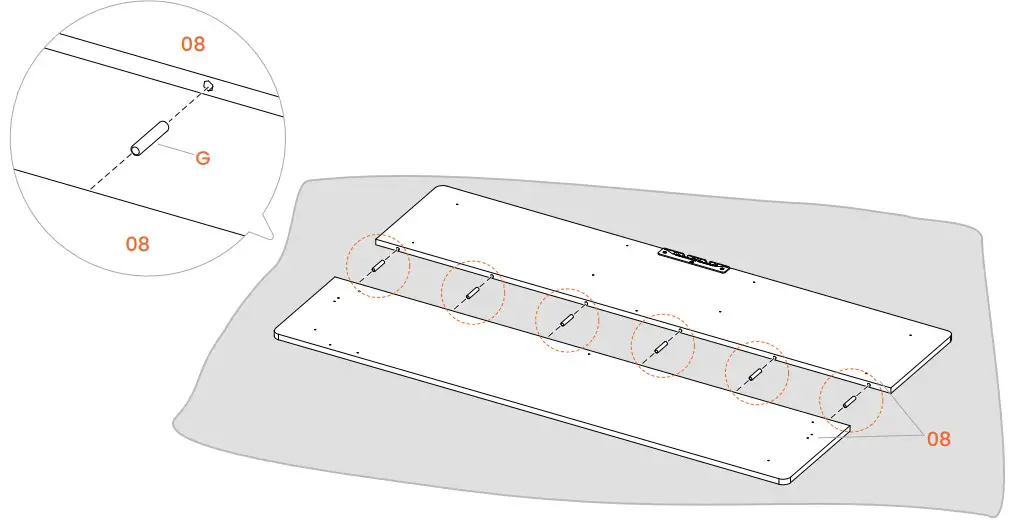

Assemble the desktop.

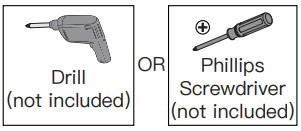

You can use a drill (with suitable torque and speed) or a Phillips screwdriver.
Attach the desktop to the frame.

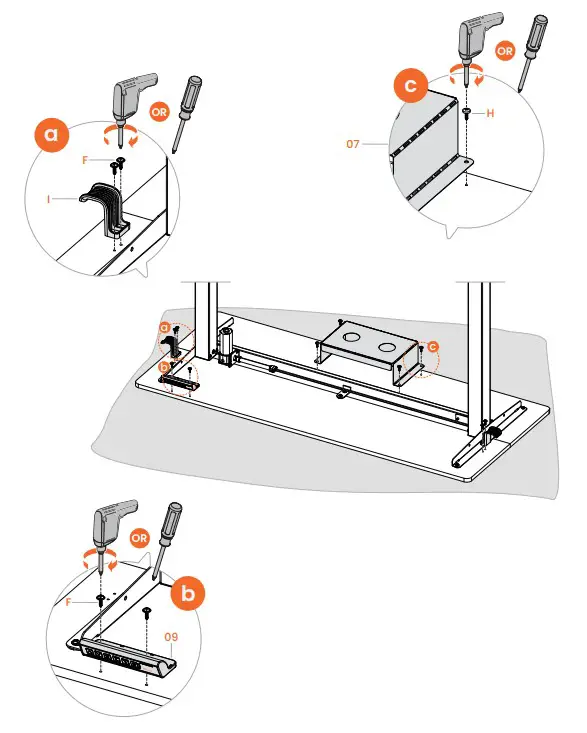

Attach the controller, storage hooks and cable management tray to the desktop.
Step 5 Attaching the Felt Board and Felt Storage Bag to the Desktop
Attach the felt board and felt storage bag on the left or right side.

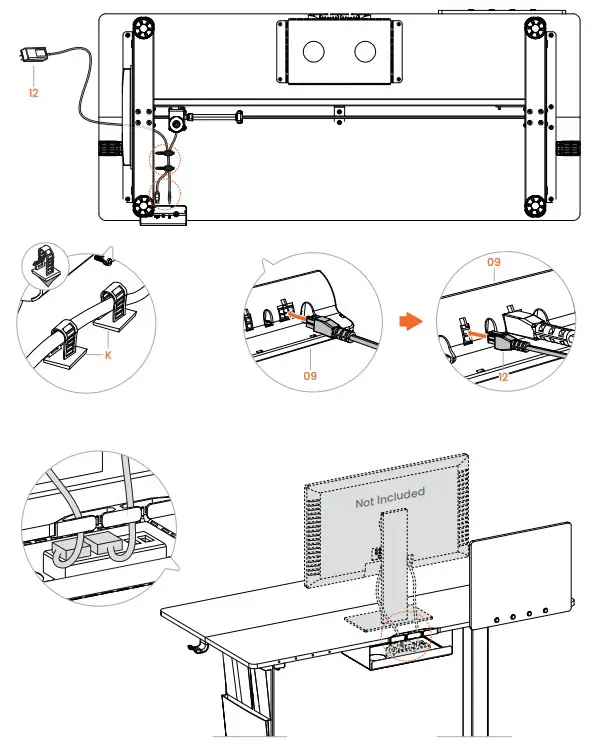

Step 6 Connecting the Cables

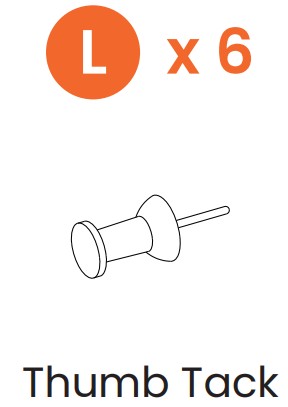

Step 7 Using the Felt Board

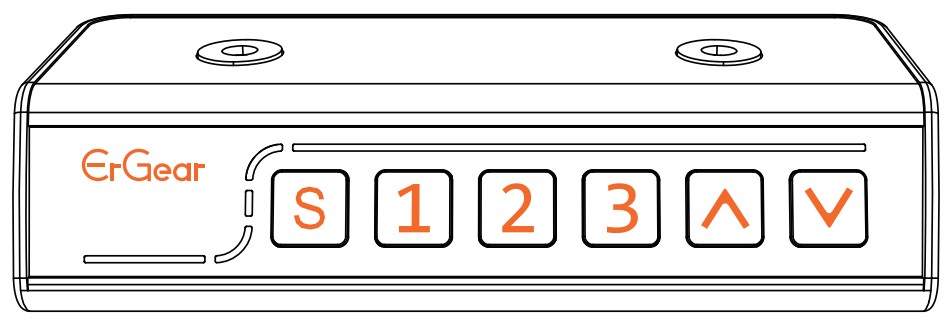

Using the Controller
Save Current Height Setting
Short-press the
button, and the display will flash. Press the
,
, or
button to save the current height setting to that button.
Select Height Setting 1
Press the button, and the desk will move to the height that was previously set for that button.
Select Height Setting 2
Press the button, and the desk will move to the height that was previously set for that button.
Select Height Setting 3
Press the button, and the desk will move to the height that was previously set for that button.
Raise the Desk
Press the
button to raise the desk continuously until it reaches the highest position of 46.5” (118cm) or the button is released.
Lower the Desk
Press the
button to lower the desk continuously until it reaches the lowest position of 28.3” (72cm) or the button is released.
Settings
| Change Display Height Units | Press and hold the button until a flashing ‘S-’ is displayed. Press again, and ‘Un’ is displayed. Press to select it, press or to switch between ‘IN’ (imperial) and ‘SI’ (metric), and press to save your choice. |
| Change Collision Detection Sensitivity |
Long press the button, ‘S-‘ shows and flashes. Press again and the display shows ‘Un.‘ Press or to switch to ‘CF.‘ Press to select. Press or to switch between ‘OFF,‘ Low (L), Normal (n) or Heavy (H) collision force detection. Press to save your choice. |
| Reset | Press and hold the button for 5 seconds, and the screen will show ‘RES.’ Continue holding until the desk goes down to its lowest level and comes back up slightly. |
Protection Mode Error Codes
| Hot | Overheating Protection: When the motor has been working continuously for 2 minutes, it will stop operating to prevent damage from overheating. Wait for at least 18 minutes before making any further height adjustment. |
| E10 | Sensor Malfunction Warning: Motor safety sensor can’t be detected. Power off, check the connection between the motor and controller, and power back on again. |
| E20 | Overloading Warning: Max load exceeded. If raising the desk, take the things off the desk and try again. If lowering the desk, power off, take the things off the desk, power back on, and try again. If error code persists, follow the reset instructions. |
| E02 | Operation Status Warning: The desk stops moving if vibration, impact, or incline are detected. If this detection is incorrect, follow the reset instructions before continuing use. |
| E32 | Overvoltage Protection: Input voltage too high. If the correct AC adapter is being used, power off the desk, check the connection between power and the controller, and power on again. |
| E31 | Undervoltage Protection: Input voltage too low. If the correct AC adapter is being used, power off the desk, check the connection between power and the controller, and power on again. |
| E60 | Unequal Leg Height Warning: Power off the desk and check whether the left and right legs are at the same height. Adjust if necessary by following the instructions. Power on again. |
| – | Cable Disconnection Warning: Check motor and controller cable connections. Normal operation should return once all connectors are properly connected. |
Complete Flexibility. Total Freedom
Thank you for choosing this product. We strive to provide you with the best quality products and service in the industry. Should you have any issues, please don’t hesitate to contact us.
Technical Support:
1-800-651-9525 (US/CA) Mon–Fri, 8am–8pm (CST)
44-808-196-3875 (UK) Mon–Fri, 2pm–10pm (UTC)
Other Info: [email protected]
Website: https://ergear.com
860-00967-00 Rev00
