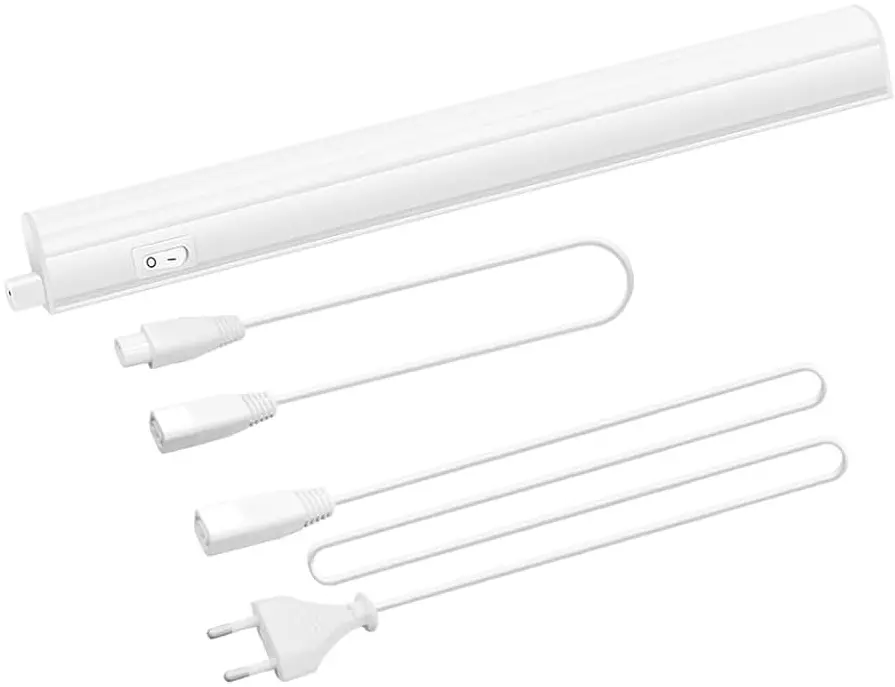

Enuotek LDUL-D07-03-W-CCT LED Under Cabinet Lights
Contents
PACKAGE CONTENT
- LED Lights
- Mount Brackets
- Control Module
- Screws
- Hard Connectors
- Cable Connectors
- Instruction Manual
FUNCTION INSTRUCTIONS
ATTENTION MATTERS
- The working voltage of lamp is DC24V, they are only allowed to work with 24V output dedicated power adapter.
- The LED lighting components inside are not replaceable, not allowed to break the lamp shade to replace components.

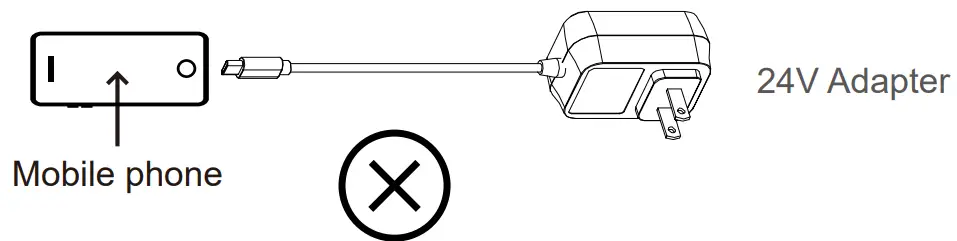

- The Type C interface of power adapter is 24V output, not compatible to charge any mobile phones or other devices.
INSTALLATION PROCESS
- Use metal screws to fix brackets on the mounted surface
- Attach the lamp into metal brackets, connect lamps
- Connect lamp with control module, attach control module into metal bracket
- Connect control module with power adapter, turn on the lamps by sensor switch
Specification
| Seller SKU | EN-C009-23/ EN-C009-33 | EN-C009-26/ EN-C009-36 |
| Manufacturer SKU | LDUL-D07-03-W-CCT | LDUL-D07-06-W-CCT |
| Power Adapter | Input AC220-240V, 0.5A, 50/60Hz Output DC 24V | Input AC220-240V, 0.5A, 50/60Hz Output DC 24V |
| Lamp Voltage | 24V | 24V |
| Power | MAX.5W/ length 300MM lamp | MAX.10W/ length 600MM lamp |
| Brightness | MAX.400Lm/ length 300MM lamp | MAX.1000Lm/ length 600MM lamp |
| Lighting Color | 2700K-3000K-3500K-4000K-5000K | 2700K-3000K-3500K-4000K-5000K |
CUSTOMER SUPPORT
KOVA ASSOCIATES LTD
72a Kingston Road, Portsmouth, Hampshire,
PO2 7PA, United Kingdom
[email protected]
MARWAY Consulting UG(haftungsbeschränkt)
Am Meerbusch 108-110,45883, Gelsenkirchen, Germany
[email protected]
Imported By:
Ningbo Jiangmen Xin Mu Dianzi Keijo Kouxian Gongs
Zhejiang Sheng Ningbo Shi Jiangmen Qu
Changing Lu 689 Long 21 Hao 10 Zhuang 112 Shi
Ningbo, 315000, China
Manufactured By:
Guangzhou LEDIA Lighting Co., Ltd.
Room 302, No.1 Xianke 1st Road, Heading Town,
Hued District, Guangzhou, Guangdong, China 510890
[email protected]
www.enuotek.com
Made in China
