enjoysolar ES-AHV 02 ALU Master Bracket
Product Information
The ES-AHV 02 is a solar panel mounting system that comes with adjustable lang brackets, short brackets, rubber pads, and M8 hexagonal screws (ST6,3 * 80). The dimensions of the system are not specified in the user manual.
Product Usage Instructions
- Make sure you have all the necessary tools, including an Allen key, a 10mm and 13mm open-end wrench for M6 and M8 screws, or a cordless screwdriver.
- Begin by assembling the frame of the solar panel.
- Next, attach the solar panel to the frame using the provided brackets and screws.
- Make sure to tighten all screws and bolts to secure the system in place.
Dimension (mm)
-

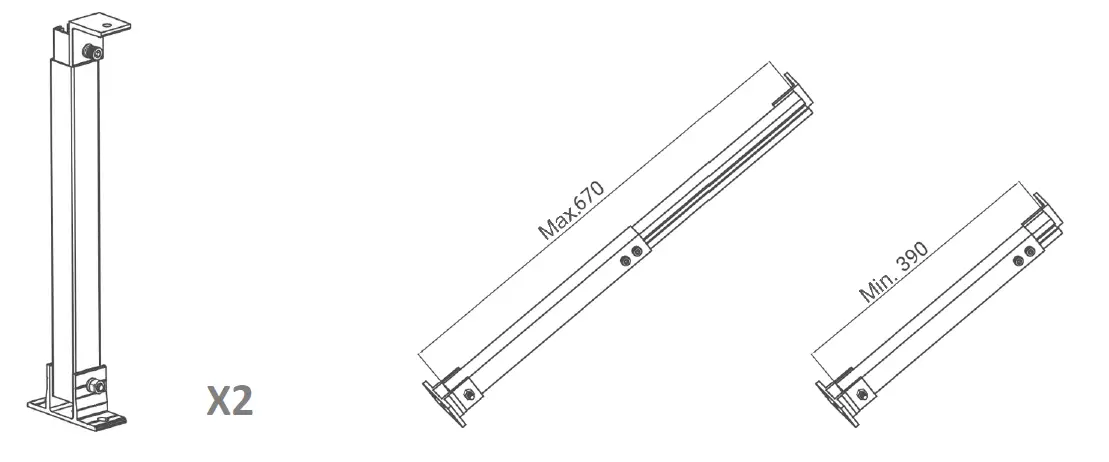

Adjustable lang brackets

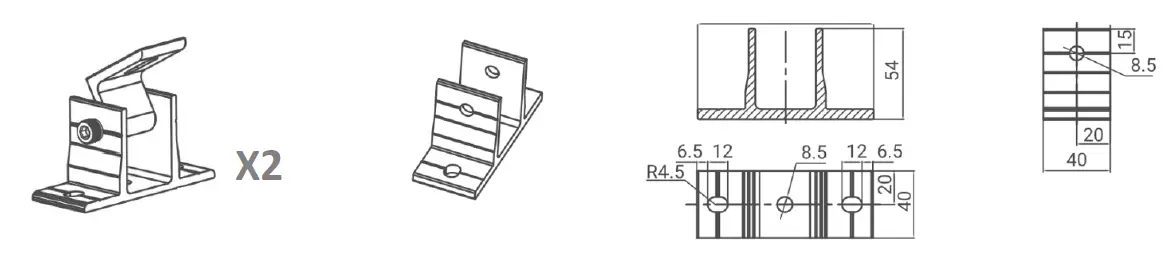

- Short brackets

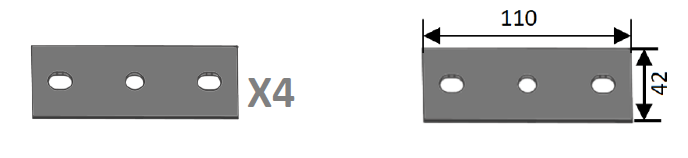

- Rubber pads

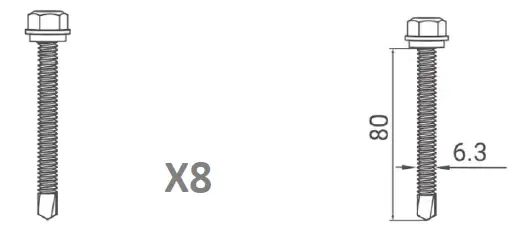

- M8 Hexagonal Screws (ST6,3 * 80)
Prepare for assembly

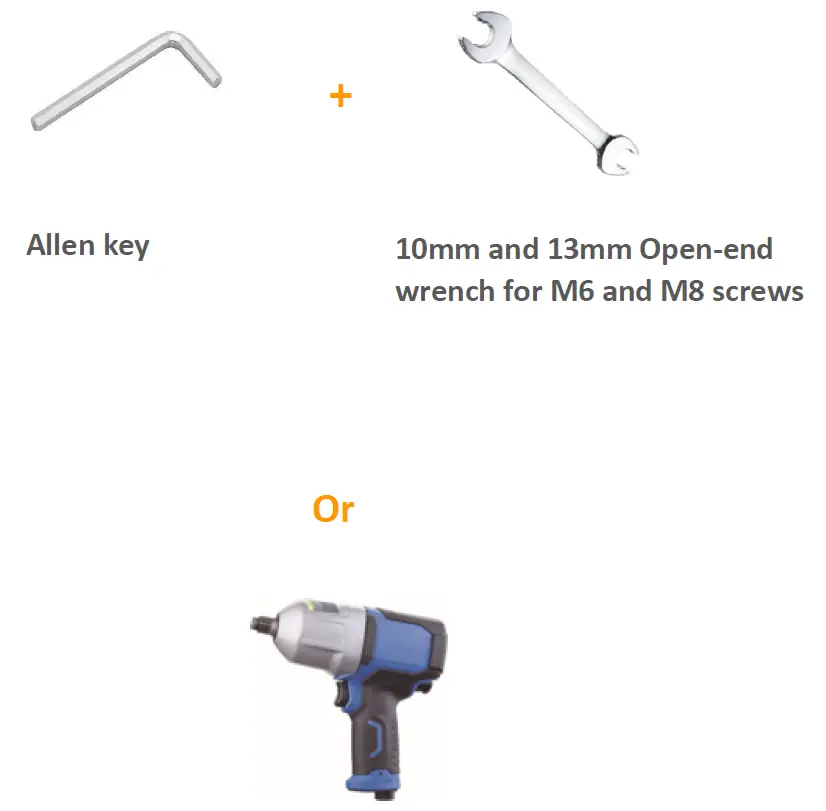

Tools (not incl.)
Assembly instructions
- Copyright© 2022 SolarV GmbH All rights reserved.

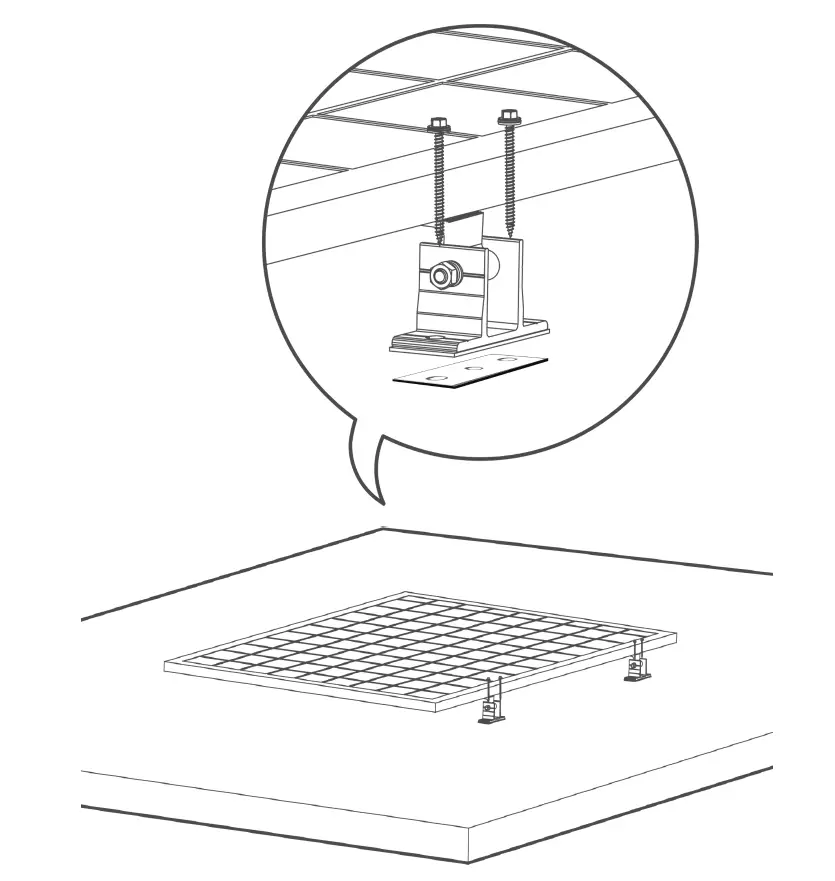

Mount the short brackets to th e bottom frame of the solar panel:
- Assemble the short brackets with the rubber pad s on the surface with M8 screws
- Mount the lang brackets to the top fra me of the solar panel:
- Assemble the lang brackets with the rubber pads on the surfacCopyrige wht© i2022 Sth M8 olarV GmbHscrews All rights reserved.
- Tighten all screws and bolts to secure the system
