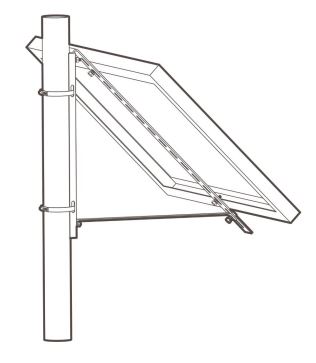

enjoy solar ES-AHV 03 ALU Bracket for Single Panel

Dimension

Prepare for assembly
Tools (not incl.)
10mm and 13mm Open-end wrench for M6 and M8 screws Or
Cordless screwdriver
Assembly instructions
- Mount the panel bracket to the bracket connector with M8 bolts:

- Mount the inclination adjustment bracket with M8 bolts:

- Fasten the brackets to the mast with the hose clamps

- Mount the solar module to the panel bracket with M6 bolts

- Tighten all screws and bolts to secure the system
