enjoy solar ES-AHS 11 Monocrystalline Solar Panel Instruction Manual

ES-AHS 11/12
ES-AHS 55
Monocrystalline Solar Panel
Instruction Manual

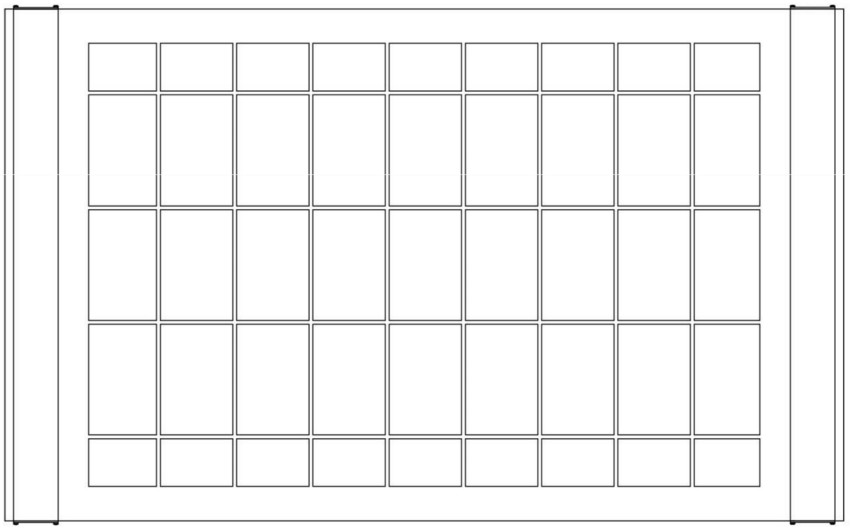

ES-AHS 11 Monocrystalline Solar Panel

5402550 (Black)
5401670 (Silver)
5402670 (Black)
ES-AHS 11/12

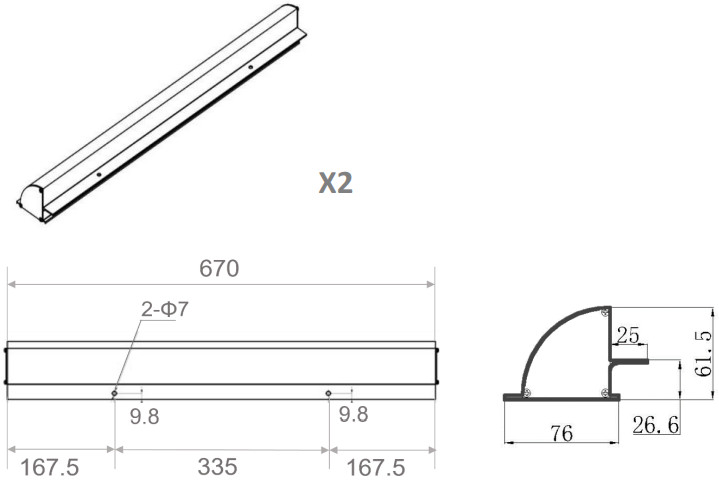

enjoysolar® ALU Bracket 670mm
Dimension (mm)

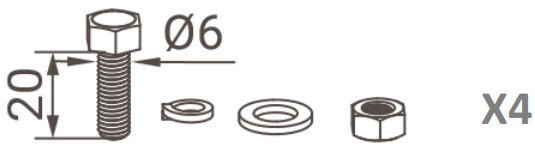

➢ ALU bracket 670mm ➢ M6 Hexagonal Bolt
ES-AHS 55
enjoysolar® ALU Bracket 550mm
Dimension (mm)
➢ ALU bracket 550mm➢ M6 Hexagonal Bolt

Prepare for assembly

Tools (not incl.)

	Sikaflex® – 554 construction adhesive
Or	10mm and 13mm Open-end wrench for M6 and M8 screws
	Cordless screwdriver

Tipps:
Surfaces must be clean, dry and free from all traces of grease, oil, wax and dust.

Assembly instructions

1. Mount the solar module on the brackets:

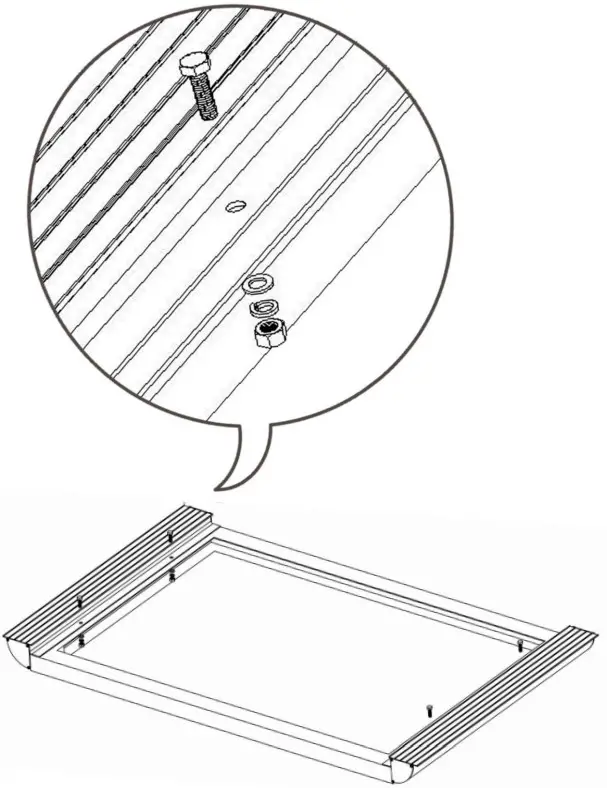

   Method A: glue with Sikaflex®-554Method B: fix with M6 hexagonal bolts
2. Apply the Sikaflex®-554 construction adhesive
3. glue onto the surface and done!
