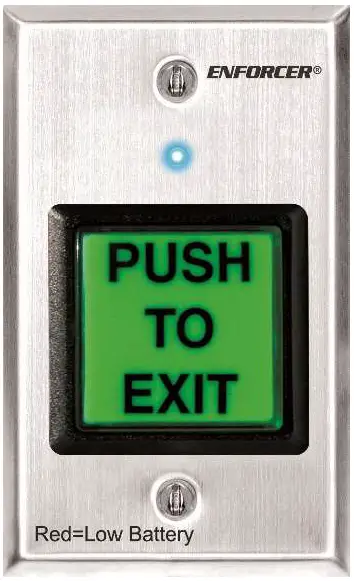

ENFORCER SD-8202GT-PEQ Wireless RF Request-to-Exit Plate
Wireless RF Request-to-Exit Plate
SD-8202GT-PEQ
Green 2″ Square Button The ENFORCER® Wireless RF Request-to-Exit Plate is the ideal solution for difficult access control installations. The RTE plate allows egress from protected areas by easily connecting to an electric door-strike or electromagnetic lock without wires.
Features
- Built-in RF transmitter:
- Powered by 9VDC (battery included)
- Range up to 250 feet, 315MHz
- Over 68 billion possible codes
- Dual-colored LED to indicate transmission:
- Blue: Normal operation
- Red: Low battery
- Stainless steel single-gang plate
- English “Push to Exit” and Spanish “Presione para Salir” messages included
Specifications
- Operating voltage: 9VDC
- Operating frequency: 315MHz
- Battery life: Up to four (4) years (60 uses per day)
- Dimensions: 41/2″ x 23/4″ x 21/4″ (114x70x57 mm)

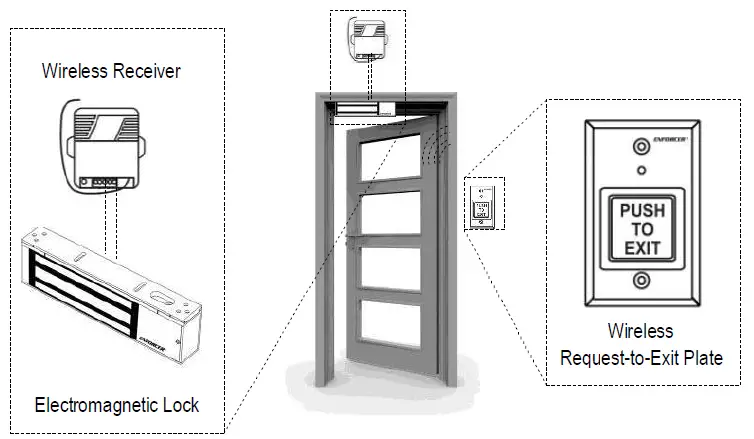

Sample Application
