Elo Edge Connect™
2D Barcode Scanner
For Self-Service and
Price-Checker Applications
Contents
Product Overview
Improve self-service and price-checker applications with Elo’s 2D Barcode Scanner that easily integrates with a variety of Elo touchscreens. The fast, hands-free device provides rapid and accurate scanning of barcodes including linear barcodes and QR codes. Whether on paper, etched into a product or on a mobile screen, the reader can return quick, reliable results.
Our modular design provides our customers with the building blocks to configure a multitude of solutions – making it easy to deploy a variety of solutions from price checkers and self-checkout to visitor management. Start changing the way your customers and employees interact in-store and at work by deploying a new generation of interactive technologies.

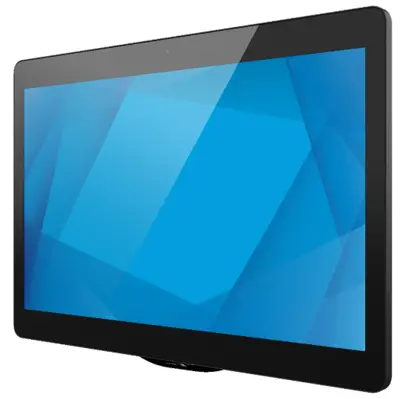

Easily and securely attached the camera to any side of the display via Elo Edge Connect™ technology
Next Gen Price Checkers – Offer price-checking plus in-depth product information, virtual customer service, endless aisle and related item recommendations, wayfinding, BOPIS, loyalty and assisted selling.
Simplify contactless entry for employees and guests by enabling barcodes & QR codes to be scanned on badges and personal devices
Elo Edge Connect™ 2D Barcode Scanner
| Model | E384627 & E454122 | E245047 & E454318 | E393160 & E551946 |
| Color | Black & White | ||
| Compatibility | I-Series for Android I-Series for Windows EloPOS Touchscreen Monitors – 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L Touchscreen Signage – 3202L, 3203L, 4202L, 4303L, 4602L, 5053L, 5502L, 5503L, 5553L, 6553L |
||
| Barcode Engine | SE4720 | SE4107 | SE2707 |
| Supported Terminal Modes | SNAPI, HID, CDC, OPOS / IBM Handheld, IBM Tabletop | SNAPI, HID*, CDC, OPOS / IBM Handheld, IBM Tabletop * Only supports the North American USB country keyboard type * USB HID POS is not supported |
|
| Standard Configuration | SNAPI with Imaging Interface, Presentation Mode | ||
| Resolution | 1280 X 800 | 1280 X 960 | 640 x 400 pixel |
| Illumination & Aiming | LED illumination, LED aimer dot | LED illumination, LED aimer | LED illumination, LED dot aimer |
| Ideal Scan Distance | 1.6″ – 30.0″ / 4.06 cm – 76.2 cm (depends on barcode quality, size and evironmental conditions) |
1.2″ – 19.5″ / 3.05 cm – 49.5 cm (depends on barcode quality, size and evironmental conditions) |
1.5″ – 19.5″ / 3.8 cm – 49.5 cm (depends on barcode quality, size and evironmental conditions) |
| Viewing Angle | Horizontal: 48°, Vertical: 30° | Horizontal: 44.5°, Vertical: 33.5° | Horizontal: 42°, Vertical: 28° |
| Beeper Support | Yes | Yes | |
| Supported Symbologies | 1D: All major 1D 2D: PDF417, MicroPDF417, Data Matrix, MaxiCode*, QR Code, Micro QR Code, Aztec, Grid Matrix*, DotCode*, Macro PDF Postal*: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), Mailmark. *Default setting may be disabled. |
1D symbologies: All major 1D 2D symbologies: All major 2D including: PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec MaxiCode; Grid Matrix |
|
| Dimensions | 4.67″ x 1.40″ x 0.81″ / 118.5 mm x 35.46 mm x 20.60 mm |
4.67″ x 1.05″ x 0.76″ / 118.5 mm x 26.6 mm x 19.1 mm | |
| Shipping Dimensions | 6.89″ x 4.49″ x 2.72″ / 175 mm x 114 mm x 69 mm | ||
| Weight Unpackaged | 0.071 lbs / 0.032 kg | 0.049 lbs / 0.022 kg | |
| Weight Packaged | 0.291 lbs / 0.132 kg | 0.26 lbs / 0.12 kg | |
| Temperature | Operating: 10° C to 40° C (50° F to 104° F) / Storage: 0° C to 50° C (32° F to 122° F) | ||
| Humidity (non-condensing) | Operating: 20% – 80% / Storage: 10% – 90% | ||
| Warranty | 2 year standard warranty | ||
| What’s in the Box | 2D Barcode Scanner, 2 Mounting screws, QIG | ||
Ordering Information
| Part Number | Description | Color |
| E384627 | Elo Edge Connect 2D Barcode Scanner (4720) | Black |
| E454122 | Elo Edge Connect 2D Barcode Scanner (4720) | White |
| E245047 | Elo Edge Connect 2D Barcode Scanner (4107) | Black |
| E454318 | Elo Edge Connect 2D Barcode Scanner (4107) | White |
| E393160 | Elo Edge Connect 2D Barcode Scanner (2707) | Black |
| E551946 | Elo Edge Connect 2D Barcode Scanner (2707) | White |
