AIR COOKING SERIES
NIKOLATESLA SWITCH
Contents
ENS436BL Air Cooking Series Nikolatesla Switch
ELICA’S EXCLUSIVE
PLUS FEATURES

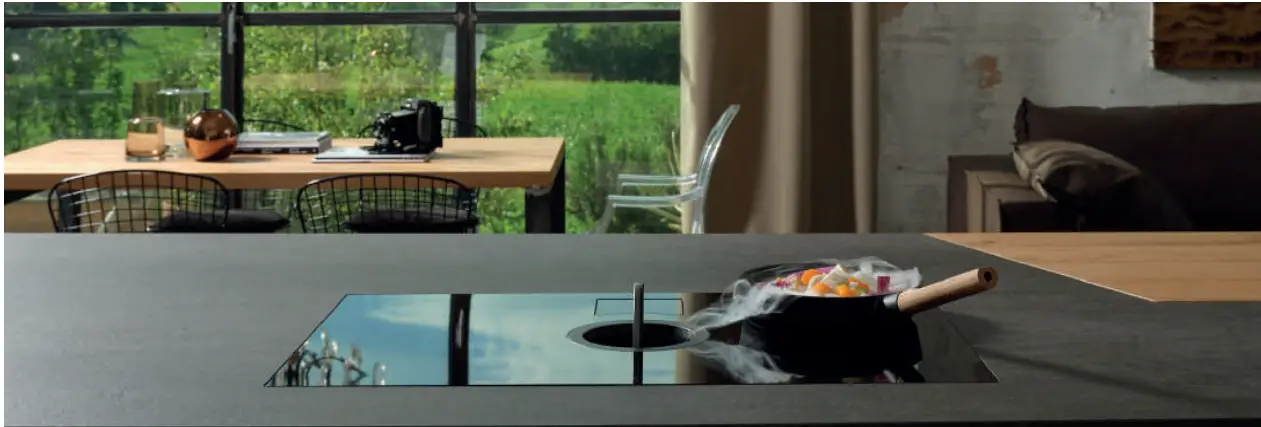

Extremely clean lines give life to a truly exclusive appliance, NikolaTesla Switch, a concentrate of design and technology through which Elica has revolutionized the daily cooking experience.

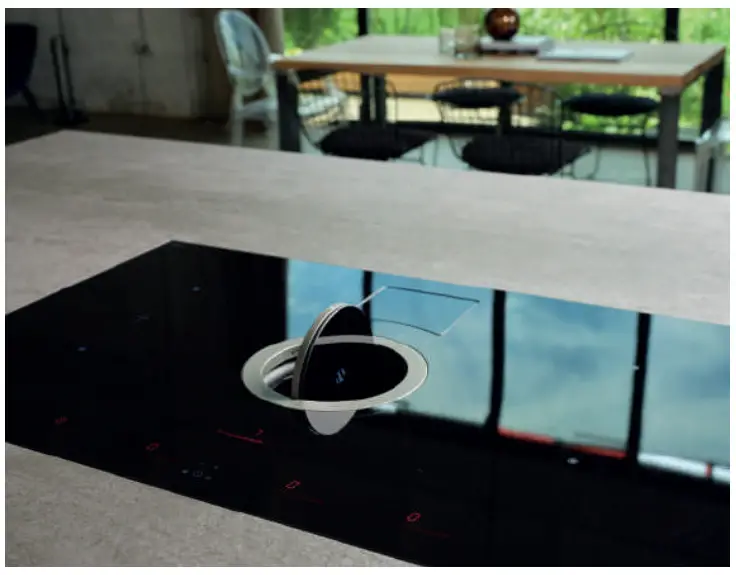

A return to the origins with a simple induction cooktop, featuring continuous surfaces and a display that becomes completely invisible in stand-by mode. The extraction area is cleverly hidden by a black glass and steel disk, characterizing the product without clashing with the other elements.
PLUS FEATURES
 |
POT DETECTOR – Automatically detects a pot on a cooking zones and sends a signal to the hood. Elica hoods with STREAM technology will turn on automatically. |
 |
TOUCH CONTROL – Enjoy effortless cooking, and fully control each cooking zone with the tip of a single finger. |
 |
TEMPERATURE MANAGER – For speed and convenience, pre-set cooking zones to automatically turn on to a desired temperature. |
 |
BRIDGE ZONES – Bridge Zones can work individually or automatically combine into an extra large zone that accommodates larger pots and pans. No need to worry about pot size, the cooking surface adapts for you. |
 |
STOP & GO – Switch off all of the cooking zones at once. Walk away with complete confidence and safety. |
 |
AIRMATIC – The auto aspiration adjusts automatically to the number and power of the used cooking zones. |
 |
ODOR FILTERS – This recirculating filter is suitable for the most challenging cooking environment, given its superior ability to filter and purify the air. The new Elica Technology is able to achieve filtering threshold of 82% against the market average of 60%. it can be regenerated up to 5 years if placed in oven at 390° F for 45 minutes every 2/3 months. |
AIR COOKING SERIES
NIKOLATESLA SWITCH
SPECIFICATIONS
| 36” UNIT | |
| Model: Dimensions: Cooking Zones: Range Hood/ Ventilation Controls: Heating Level: Installation Type: Duct Transition: Blower Type: Noise (sones): Grease Filter: Recirculation Filter:Electrical: |
ENS436BL 36 1/2” x 20 1/4” x 8 1/4” 4 Cooking Zones 4 (2,1 – 3,7kW) – 7,1 x 7,9 inches Slider Touch Control 3S + Booster Ventilation 9 Levels + Booster *(see details in chart below) Ducted Out or Recirculating 3 1/4 x 10” rectangular 400 CFM (Booster) 5.9 Sones 6 Layer Dishwasher-safe Anodized Aluminum Mesh 3 Ceramic Carbon Filters Included 208 – 240 V – 60 Hz 440 Watts at 3.3 Amps 240V – 7.8kW at 32.5 Amps 208V – 7.1kW at 34.1 Amps |
| WARRANTY:*** | Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com. |
| Cooking Level | Power (W) |
| Low | 53 W |
| Level 1 | 63 W |
| Level 2 | 105 W |
| Level 3 | 168 W |
| Level 4 | 252 W |
| Level 5 | 378 W |
| Level 6 | 588 W |
| Level 7 | 882 W |
| Level 8 | 1344 W |
| Level 9 | 2100 W |
| Booster | 3700 W |
*The product images shown are for illustration purposes only and may not be an exact representation of the product.
AWARDS
| Glass Specifications | |
| Material Appearance Thickness Color in reflexion Color in transmission Surface structure |
Glass-ceramic cooking panel Deep – black color 4mm Black Amber Though crystal smooth scratch and stain-resistant |
* The glass featured in NikolaTesla models is environmentally friendly, manufactured without arsenic or antimony metals.
CUT OUT DIMENSIONS
SELF RIMMING INSTALLATION
FLUSH MOUNTED INSTALLATION
