User Manual

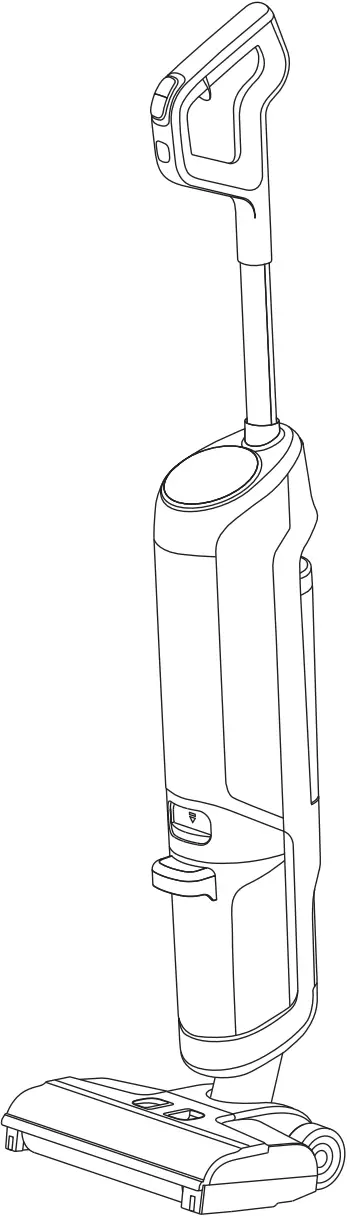

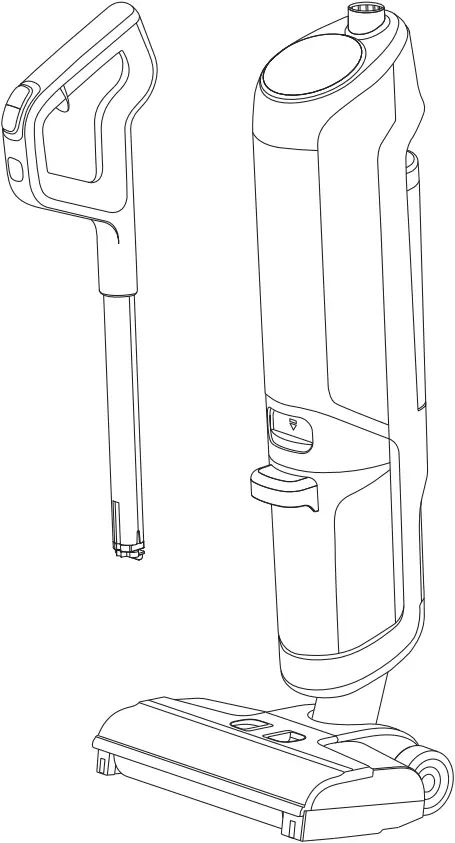

ULTIMATEHOME 700
EFW71711 / EFW71311
*Actual product may differ from illustration.
 USE ONLY:  |
|
| SINGAPORE / MALAYSIA/ MENCA | KSA-30C-260110HK |
| THAILAND/ INDONESIA | KSA-30C-260110HT |
| AUSTRALIA & NEW ZEALAND | KSA-30C-260110HA (EFW71711) |
| KSA-30C-260085HA (EFW71311) | |
| KOREA | KSA-30C-260110HO |
Accessories
Additional Parts
*Actual product may differ from illustration.
*Actual product may differ from illustration.
*Actual product may differ from illustration.
EF162 4055838538

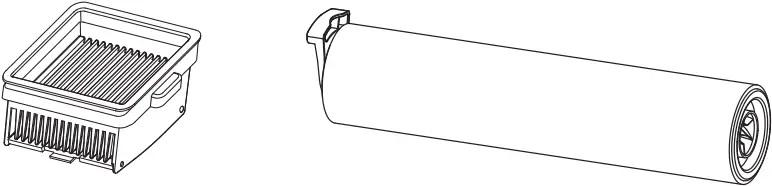

Fine Dust Filter Brush Roll
*Availability of item varies by region and country.
Troubleshooting
| Common issue | Possible reason | Solutions |
| The floor washer is not working | Water shortage in clean tank | Add clean water in the clean tank |
| The dirty tank is full | Empty the dirty tank | |
| Brush roll is not installed | Install the brush roll or replace it | |
| Low battery power | Fully charge the product | |
| The brush roll is entangled with hair or other things | Clean the brush roll | |
| Abnormal connection of electronic parts inside the handlebar | Return the product to the service network for repair | |

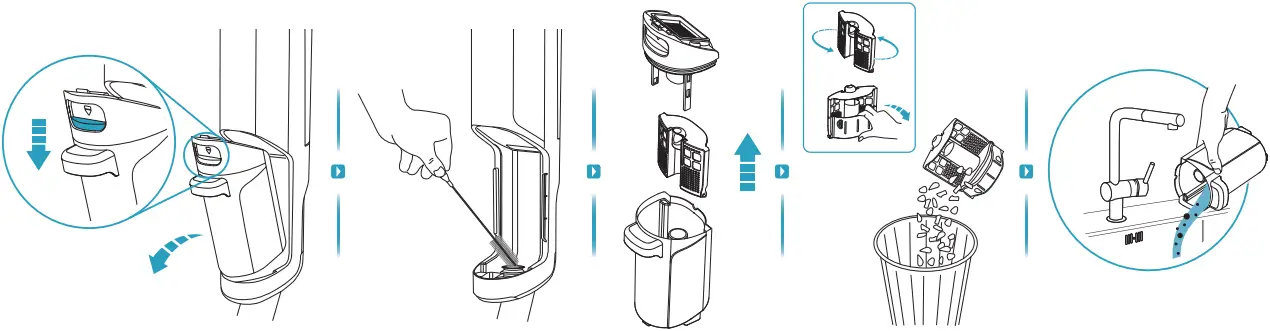

| The suction is weakened | The dirty tank has reached its designated capacity | Take out the dirty tank, and empty the dirty water |
| The brush roll, Brush roll cover, dirty tank are not installed properly | Detached and install properly. | |
| Nozzle or nozzle air tube is blocked | Clean up the nozzle and nozzle air tube | |
| The filter is dirty or blocked | Clean or install the filter before using | |

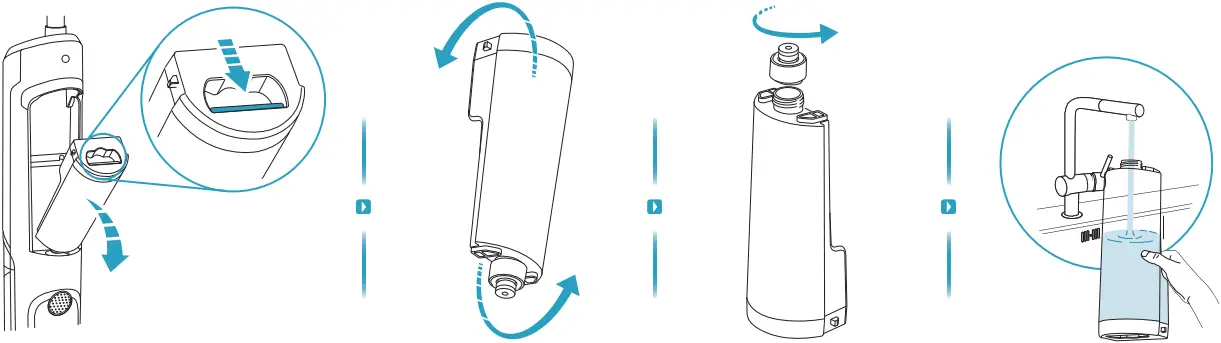

| No water come out from the nozzle | No water in clean tank | Add water in clean tank |
| The clean tank is not installed properly | Reinstall the clean tank | |
| The clean tank check valve is blocked | Replace the clean tank | |
| Pump blockage | Return the product to the service network for repair | |
| Waterway blocked | Return the product to the service network for check and repair | |
| The product cannot be charged | The charging stand is not plugged in properly | Check that the plug is properly connected |
| The machine is not fully plugged into the charging stand | Check that the machine is positioned correctly | |
| The adaptor is in poor contact with the charging stand | Check that the adaptor is properly connected to charging stand | |
| The power level could not be automatically adjusted in AUTO mode | The bottom tube is dirty and blocked | Use the cleaning brush to clean up the bottom tube |

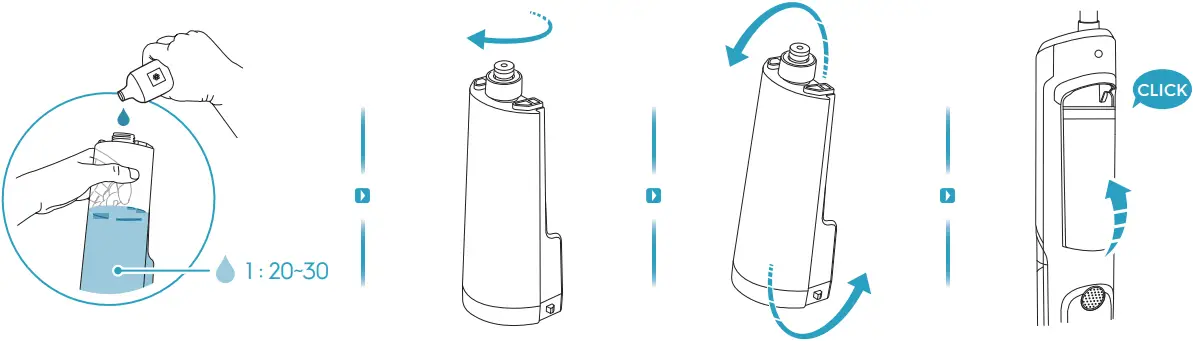

| Dirty water tank false alarm (The level of dirty water is much lower than max level) | Excessive cleaning solution is added, resulting in a large amount of foam | Follow the instructions for adding the amount of cleaning solution |

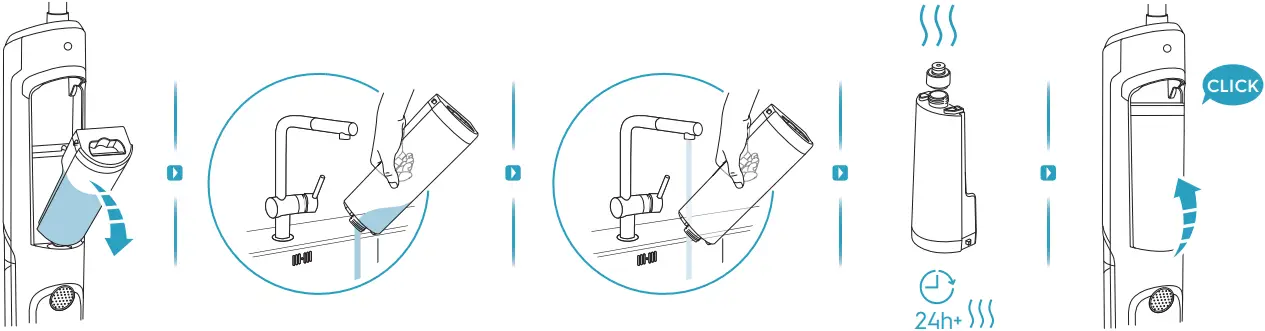

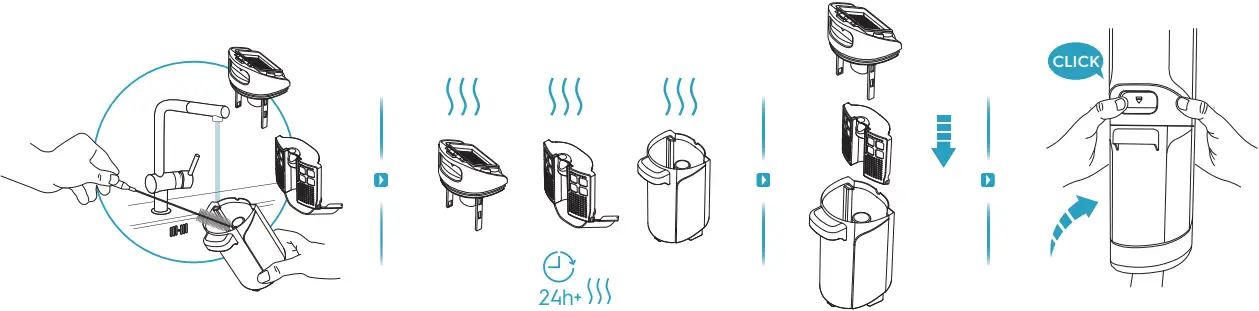

| The top cover of dirty water tank and solid-liquid separation holder are dirty | Use clean water to clean the top cover of dirty water tank and solid-liquid separation holder, and dry them with paper towels or towels, or let them dry for 24 hours before using | |
“Dirty Water Tank Full” icon blinks |
The dirty water tank is full | Dump the dirty water before using |
| The dirty water tank not installed properly (EFW71711) | Reinstall the dirty water tank | |
| Self-cleaning is suspended or completed | The dirty water tank icon keeps flashing for 1 min, press the on/off button to stop blinking and enter the charging mode. | |
 Icon blinks for clean water tank water shortage |
Water shortage in clean water tank | Add water in clean water tank before using |
 Nozzle icon blinks |

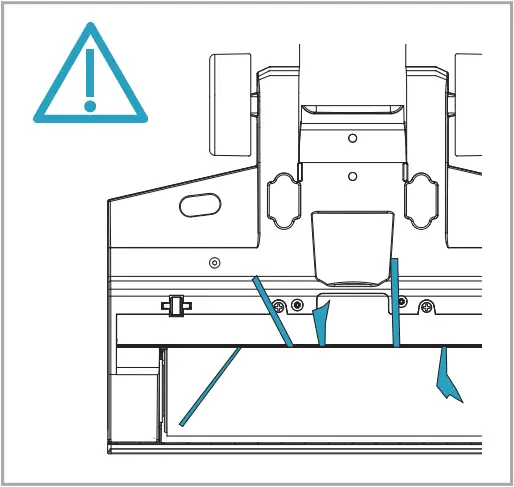

Brush roll is entangled with an object such as hair or the brush roll is not installed | Clean or install the brush roll |

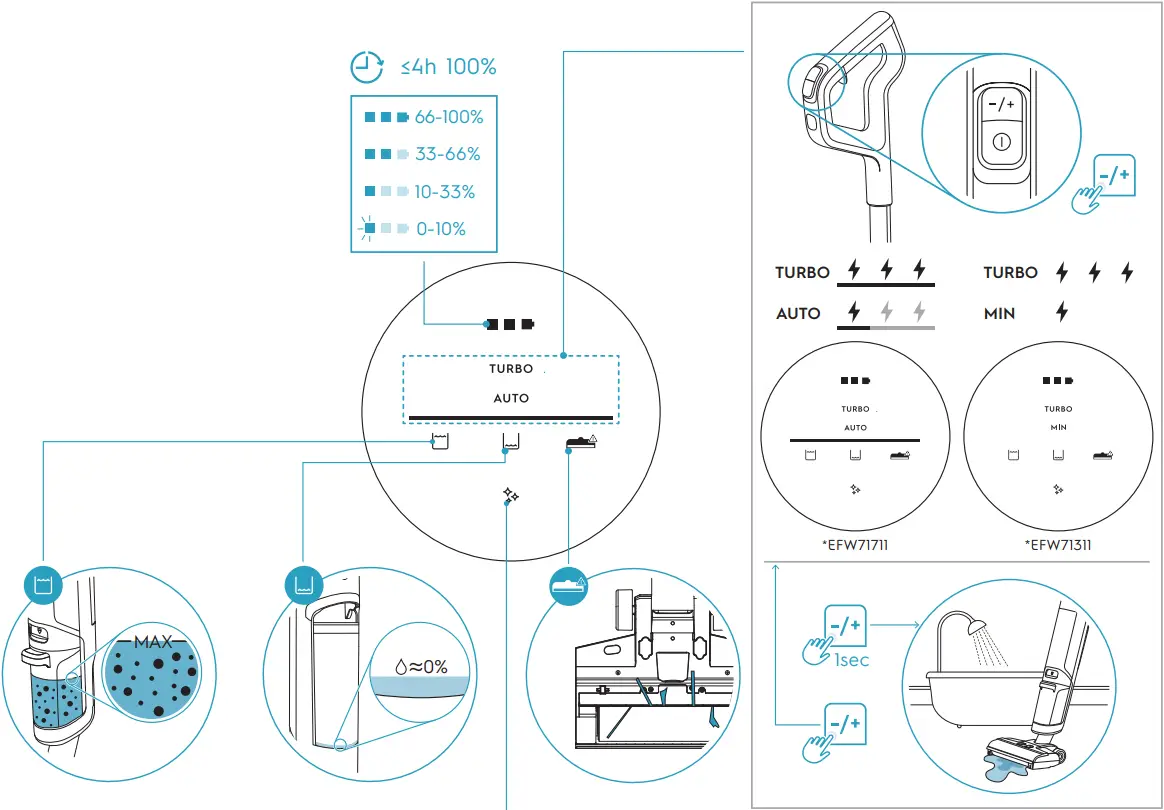

 Power display (3 LED lights) flash three times before turning off |
The battery is out of power under undervoltage protection | Put it back in the charging base and charge it |
 Power display (3 LED lights) flash four times before turning off |
Discharge overtemperature, the machine temperature is too high | Turn it off and let it sit for a while |
 Press the self-cleaning button when the unit is placed on the charging stand, but the self-cleaning does not start, while the self-cleaning icon and power display flash 5 times, then the unit returns to charging mode |
Self-cleaning is not allowed to start when the battery is less than 33% | Keep charging until LED1 of power display is always on, then self-cleaning function will be available |
 “TURBO” flashes on the display |

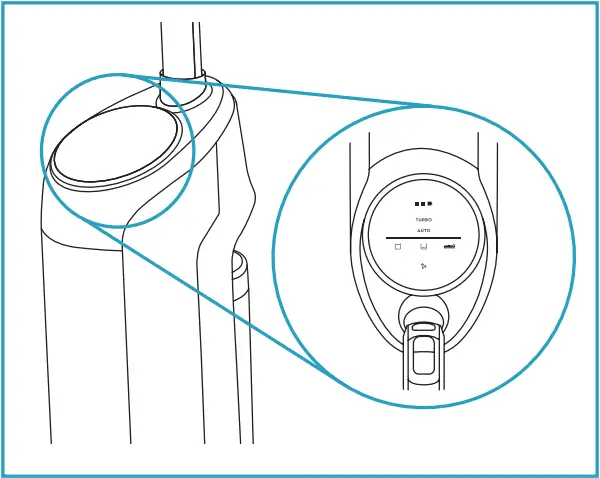

Suction mode is activated by pressing “+/-“ button for one second. (Refer to the graphic on the center-right side of UI(display) introduction page) | Press the “+/-“ button again to exit the Suction mode. |
