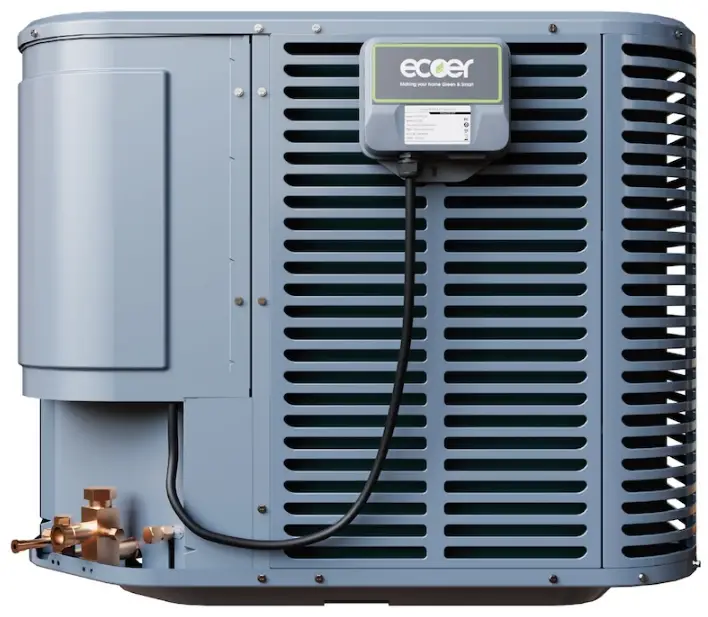

ecoer EODA19H-4860A Up to 5 Ton Inverter Split System Heat Pump
Product Specifications
| OUTDOOR UNIT | EODA19H-4860A |
| Voltage-Phase-Hz | 208/230-1-60 |
| Minimum Circuit Ampacity | 32.5 |
| Max. Over-current Protection | 50 |
| COMPRESSOR | Variable rotary |
| RLA | 24.0 |
| LRA | 58.1 |
| Drive Method | Inverter |
| Noise-cancelling Jacket | Factory installed |
| Crankcase Heater | Internal heating |
| OUTDOOR FAN | Propeller |
| Condenser Fan Motor Type | Brushless DC Motor |
| Horse Power (HP) | 1/3 |
| Motor Speed RPM | 1030 |
| CFM @ 0 in. W.G | 3550 |
| FLA | 2.5 |
- OUTDOOR COIL TYPE / Copper tube with hydrophilic aluminum fins
- Rows 2.7
- Tube Size (in.) 9/32
- Heating Metering Device EEV
- Cooling Metering Device (Indoor side) TXV
- Factory Supplied Refrigerant Charge (R-410A, oz) / Data on nameplate
- Liquid Line Size( in. O.D.) 3/8
- Suction Line Size (in. O.D.) 7/8
- Dimensions (W X H X D) 29-1/8 × 33-3/16 × 29-1/8
- Net Weight (LBS) 214
- Shipping Weight (LBS) 249
- Max. Line Length (FT) 150
- Max. Elevation Difference (FT) 50
Sound pressure level (dB)
| EODA19H-4860A | 4Ton * | 5Ton |
| Standard | 68 | 70 |
| Silent mode | 64 | 66 |
| Super silent mode | 61 | 62 |
* Refer to the installation manual for capacity selection.

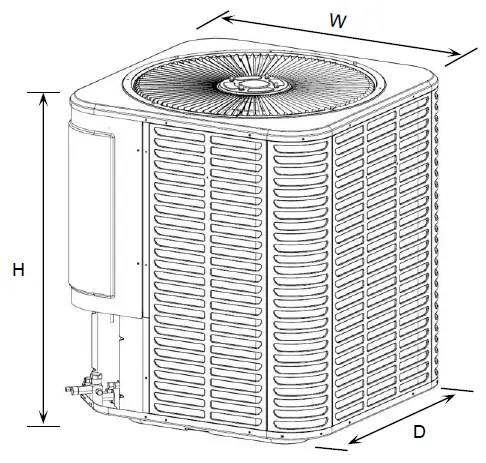

Dimension
Using Instructions
Mechanical Specifications
Communication Method
- Non-Communicating Inverter condensing units which are compatible with most 24Vac controlled thermostats and R-410A indoor units (TXV required).
General
The EODA19H-4860A is fully charged up to 25ft line set from the factory. This unit is designed to operate at outdoor ambient temperatures as high as 125℉(and as low as 20℉) in cooling mode, and as low as -4℉ in heating mode. Cooling/Heating capacities are matched with air handler that are AHRI certified. The units are certified to ETL.
Casing
- Unit casing is constructed of heavy gauge, Galvanized steel and painted with a weather resistant powder paint on all grilles, panels.
Refrigerant Controls
- Refrigeration system controls include condenser fan, compressor inverter drive, electronic expansion valve and reversing valve.
Rotary Compressor
- Flexible capacity output from 25%-110%.
- Compressor is equipped with Noise-cancelling Jacket.
Condenser Coil
- The outdoor coil provides low airflow resistance and efficient heat transfer.
- The coil is protected on all four sides by grille panels.
Manufacturer reserves the right to change specifications or designs without notice.
