EATON C22-PVT45P-K02 Kill Switch Instruction Manual

EATON C22-PVT45P-K02 Kill Switch

Electric current! Danger to life!
Only skilled or instructed persons may carry out the following operations.

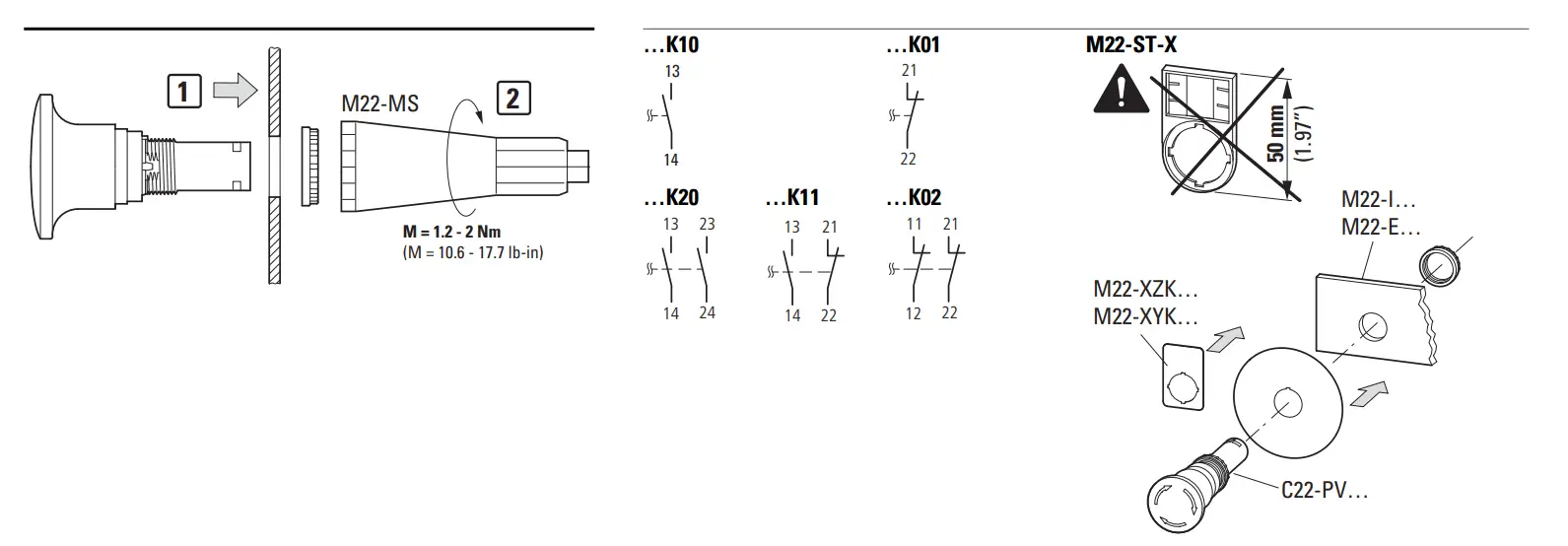

C22-PV…
M22-XPV
M22-X(Z)(A)(B)K…

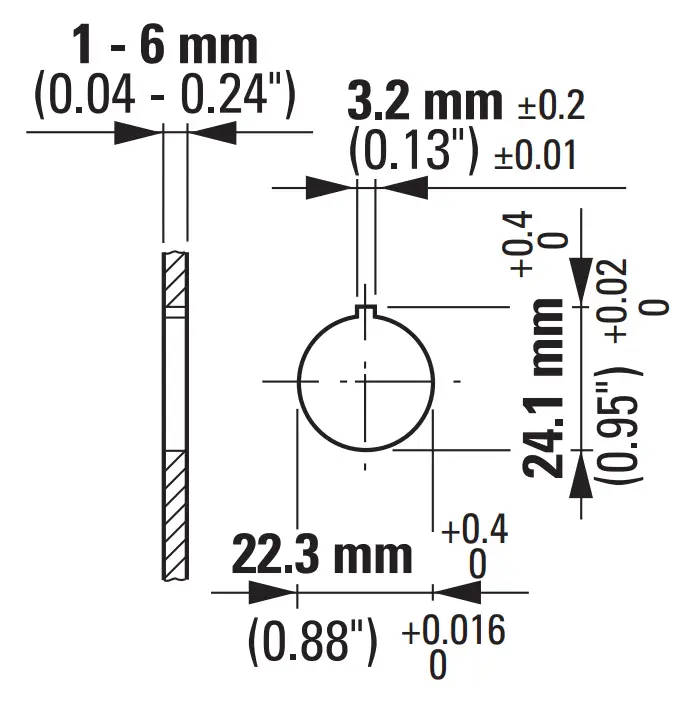

mm			in
	a ≧	b ≧	a ≧	b ≧
C22-PV…45…	55	55	2.17	2.17
C22-PV…60…	70	70	2.76	2.76
M22-XPV60-Y-…	70	70	2.76	2.76

M22-XPV…

M22-XPV60-Y-24

M22-XPV60-Y-120
M22-XPV60-Y-230

		M22-(C)K...	M22-(C)K…	C22–PV...	M22–PV…
Ie AC-15	24 V	–	–	4A	–
	115V	6A	6A	2A	–
	220 V 230 V 240 V	6A	6A	1.5 A	–
	380 V 400 V 415 V	4A	–	–	–
	500V	2A	–	–	–
Ie DC-13	24 V	3A	3A	3A	–
	42V	1.7 A	–	–	–
	60V	1.2 A	1 A	1 A	–
	110 V	0.6 A	0.6 A	0.6 A	–
	220V	0.3A	0.3A	0.3 A	–
Ue AC		500 V	230V	230 V	–
Ue DC		220 V	220 V	220 V	–
U·I		500 V	250 V	250V	–
Uimn		6000 V AC	4000 V AC	4000 V AC	–
In		1 kA	1 kA	1 kA	–
IP		20	20	67,69	66, 67,69

Safety and application notes

• Can be installed in any position.
• Install the emergency stop unit in such a way that the operator is protected against penetrating foreign particles, e.g., swarf, sand, etc.
• If emergency stop devices are connected in series, the performance level as defined in EN ISO 13849-1 may become lower due to reduced fault detection capabilities.
• When using emergency stop applications, it is required for the overall system to be validated as specified in EN ISO 13849-2.

Regular maintenance activities

• Check the emergency stop unit to ensure that it has a secure mechanical fit.
• Check the cable connections to make sure they are in good condition.

Max. short-circuit protective devi ce	M22-(C)K...	M22-(C)K…	C22-PV…	M22-PV.. .
Fuseless	PKZM0-10/ FAZ-86/1	–	–	–
	10 A	10 A	10 A	–

CAUTION

The devices can be used for the emergency-stop/ emergency-off functions. The definition of the functions/symbols to be used is specified in the following standards:
– IEC 60204-1 – DIN EN 60204-1

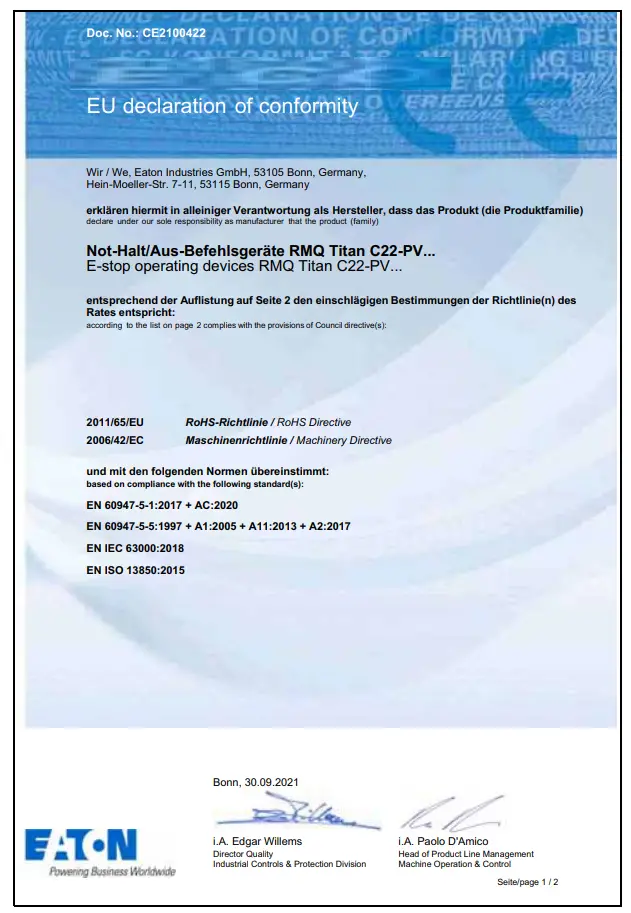

– ISO 13850 – DIN EN ISO 13850 or in the relevant national standards
