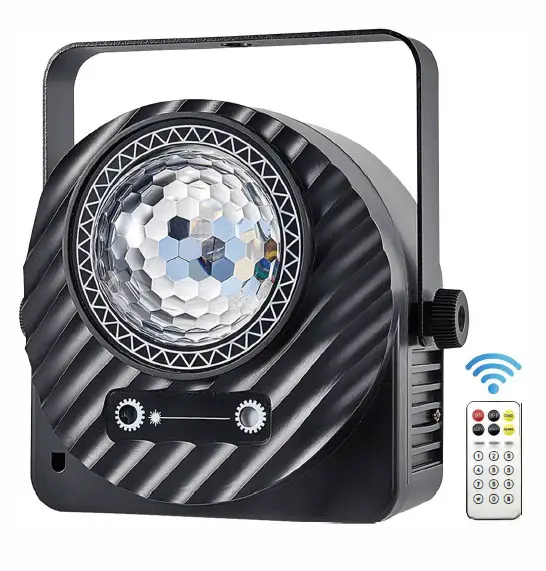

Eagou DMX512 Diary Multi in One Effect Light
Thank you for purchasing our product Please Read before Operating the Light Fixture
Technology Parameters
- Working Voltage: AC95V-245V/50Hz
- Product Power: 30W
- Light Parameters: 4PCS 3W Gobo LEDs, 1 PCS 1 OW flash LED, 30mW red-green beam
- Control Mode: International General DMX512, 13 Channels
- Working mode: DMX512, master/slave, self-propelled, voice control
- Dimming mode: 0-100% ultra-smooth dimming
- Flash: 20 times per second
Control LED Display Instruction
| Number | Menu | Value Range | Description |
|
1 |
A001 |
001-512 |
DMX512 address setting |
|
2 |
A1-9 |
1-9 |
Red LED mode, motor speed from slow to fast |
|
3 |
A2-9 |
1-9 |
Green LED mode, motor speed from slow to fast |
|
4 |
A3-9 |
1-9 |
Blue LED mode, motor speed from slow to fast |
|
5 |
A4-9 |
1-9 |
White LED mode, motor speed from slow to fast |
|
6 |
A5-9 |
1-9 |
RG Beam auto mode, motor speed from slow to fast |
|
7 |
A6-9 |
1-9 |
LED+Beam combination mode, speed from slow to fast |
|
8 |
A7-9 |
1-9 |
Macro auto mode, motor speed from slow to fast |
|
9 |
S1-9 |
1-9 |
Sound 1 mode, sensitivity from low to high |
|
10 |
S2-9 |
1-9 |
Sound 2 mode, sensitivity from low to high |
DMX512, 13CH Description
| Number | Function | VOaMluXe | Description |
|
1 |
Gobo motor |
0-255 |
0-127 rotation position: 0-180 degrees,
128-255 motor self-rotation from slow to fast |
|
2 |
Rotation amplitude |
0-255 |
Control motor self-moving range 0-255 (0-150 degrees). Channel 1 greater than
128 valid. |
| 3 | Beam motor | 0-255 | 0-9(stop), 10-255 from slow to fast |
| 4 | Dimmer | 0-255 | Linear dimming from dark to bright |
|
5 |
Flash |
0-9
10-255 |
None
Flash from slow to fast |
| 6 | Gobo1 dimmer | 0-255 | Gobo1 brightness from dark to bright |
| 7 | Gobo2 dimmer | 0-255 | Gobo2 brightness from dark to bright |
| 8 | Gobo3 dimmer | 0-255 | Gobo3 brightness from dark to bright |
| 9 | Gobo4 dimmer | 0-255 | Gobo4 brightness from dark to bright |
| 10 | R beam dimmer | 0-255 | Red beam from dark to bright |
| 11 | G beam dimmer | 0-255 | Green beam from dark to bright |
| 12 | W Flash | 0-255 | Flash from slow to fast |
|
13 |
Macro function control |
0-50 | Channel 1 to channel 11 is valid. |
| 51-150 | Auto run | ||
| 151-255 | Sound |
IR Remote Control Instruction
Note: Before using the remote control, please pull out the plastic sheet so that the remote control can work.
