E-IMAGE EI-A08R Mini Ball Head

E--IMAGE-EI-A08R-Mini-Ball-Head-FIG-1

Removeable shoe mount on bottom and an adjustable plate with 1/4″-20 screw on top allows for multiple applications. Single locking knob for safe and fast operation.

DIMENSION

E--IMAGE-EI-A08R-Mini-Ball-Head-FIG-2

Specifications

  • Max. Length 7.5cm / 3.0in
  • Net Weight 150g / 0.31bs
  • Payload 3.0kg / 6.61bs

Features

  1. Universal 1/4″ screws for attach camera, light and so on.
  2. 360 degree swivel, can be adjust to any angle, lower the platform into the notch when need a 90-degree angle.

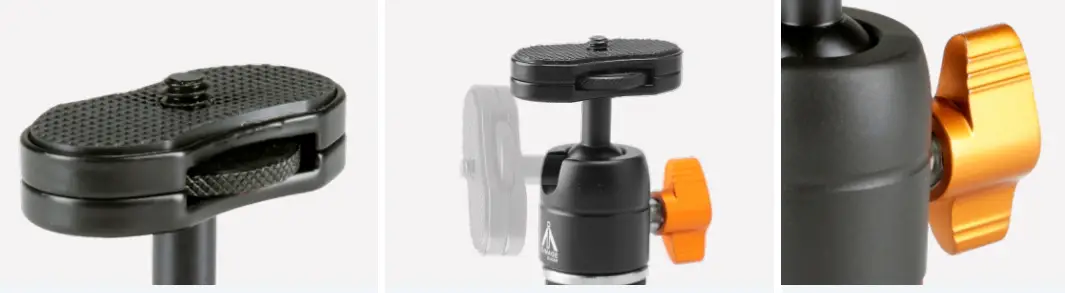

  3. Ergonomic rigid lockup takes just a quick twist of one control.E--IMAGE-EI-A08R-Mini-Ball-Head-FIG-3
  4. Base can be unscrewed, comes with 1/4 screw hole, can be used separately.
  5. Cold shoe base for DSLR Camera LED Light Monitor.
  6. Usage scenario.E--IMAGE-EI-A08R-Mini-Ball-Head-FIG-4

www.eimagevideo.com
