DUMOS B0CKTBD2BM Electric Standing Desk Instruction Manual

Home » DUMOS » DUMOS B0CKTBD2BM Electric Standing Desk Instruction Manual

DUMOS logoElectric Standing Desk
Instruction Manual
D-JHED121-5524
DUMOS B0CKTBD2BM Electric Standing Desk

Specifications

Height Adjustment Range 28.3”–46.4” (72–118cm)

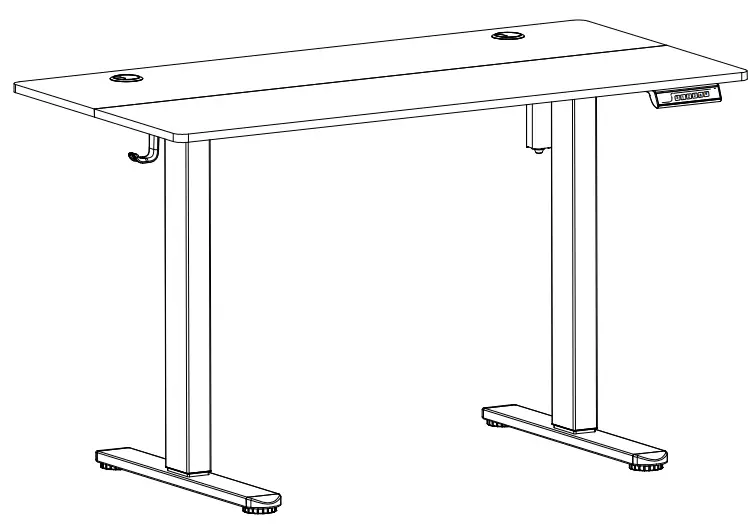

DUMOS B0CKTBD2BM Electric Standing Desk - Height Adjustment Range

  1. Supplied Parts and HardwareDUMOS B0CKTBD2BM Electric Standing Desk - Parts and Hardware

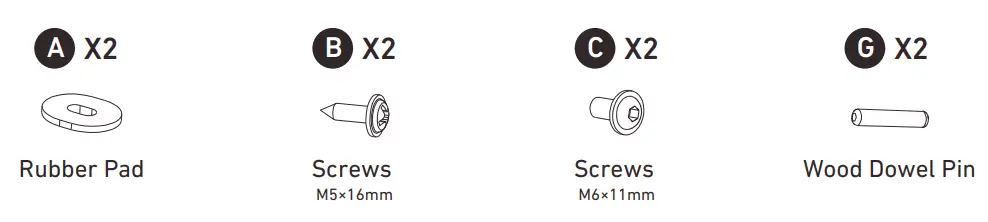

  2. Extra PartsDUMOS B0CKTBD2BM Electric Standing Desk - Extra Parts

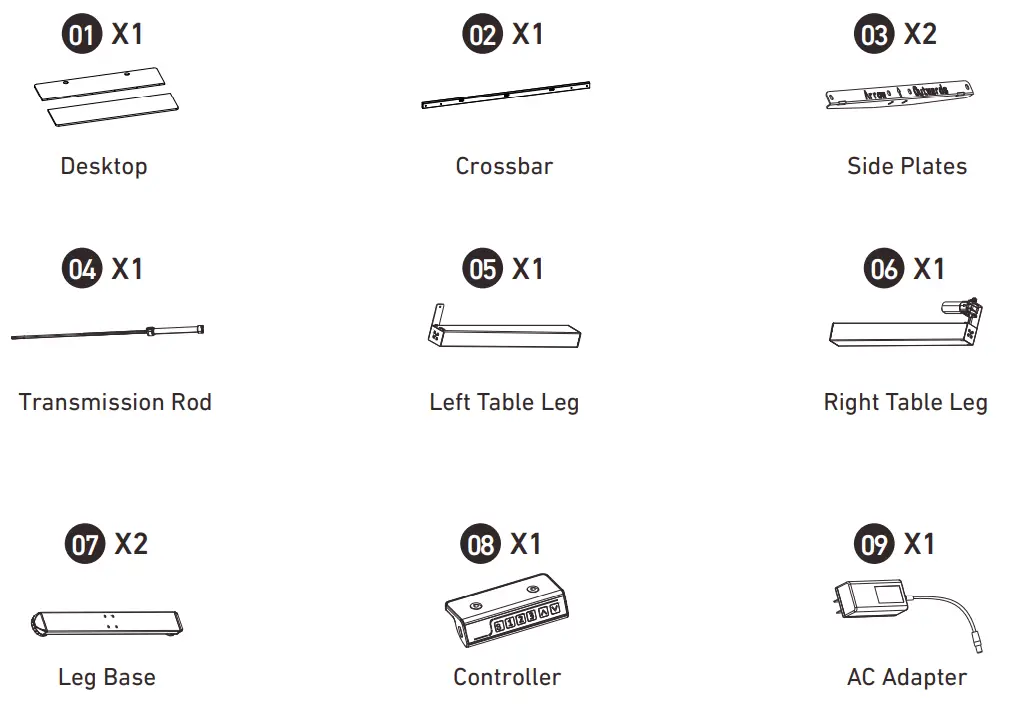

  3. Component ListDUMOS B0CKTBD2BM Electric Standing Desk - Component ListDUMOS B0CKTBD2BM Electric Standing Desk - fig1

Setting the Desk Legs to the Same Height

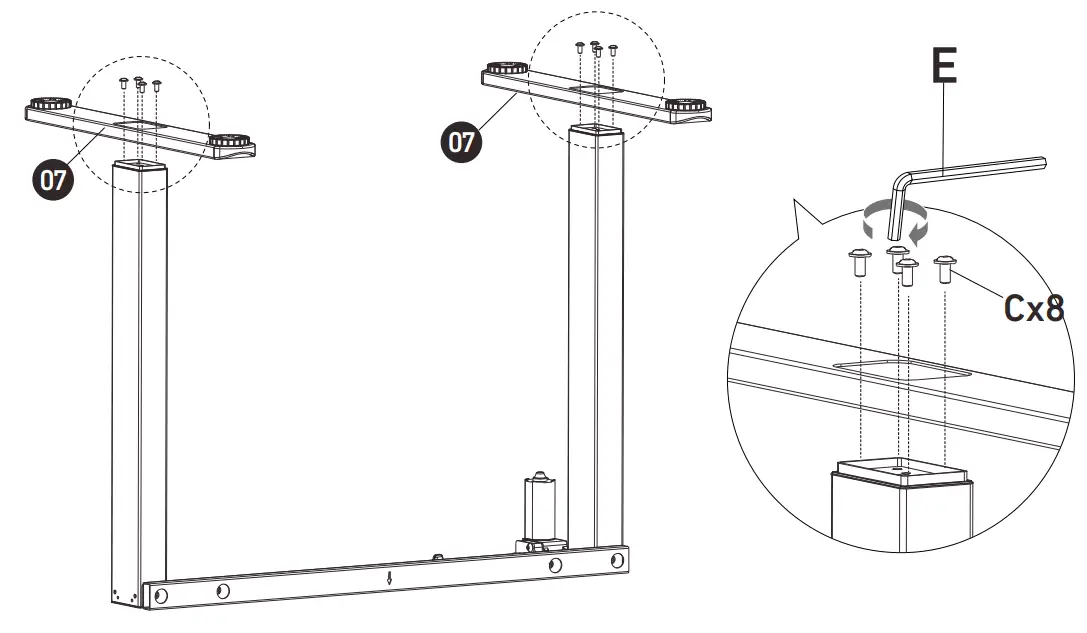

DUMOS B0CKTBD2BM Electric Standing Desk - Desk LegsDUMOS B0CKTBD2BM Electric Standing Desk - Desk Legs2

Setting the Desk Legs to the Same Height

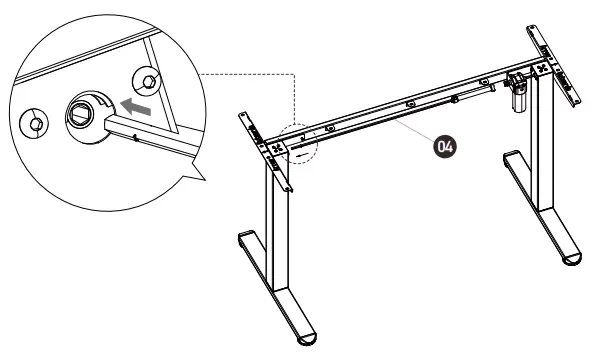

DUMOS B0CKTBD2BM Electric Standing Desk - the Same HeightDUMOS B0CKTBD2BM Electric Standing Desk - Loosen the knob

Insert the transmission rod into the hex hole and turn the transmission rod clockwise until the left leg goes to the lowest position.

DUMOS B0CKTBD2BM Electric Standing Desk - lowest position

Insert the other end of transmission rod to the slot on the leg (You may rotate the rod slightly for better installation).
Secure the transmission rod to the slot by tightening the pre-assembled set screw using the allen key.

DUMOS B0CKTBD2BM Electric Standing Desk - Tighten the knobDUMOS B0CKTBD2BM Electric Standing Desk - rubber pads

Assembling and Attaching the Desktop

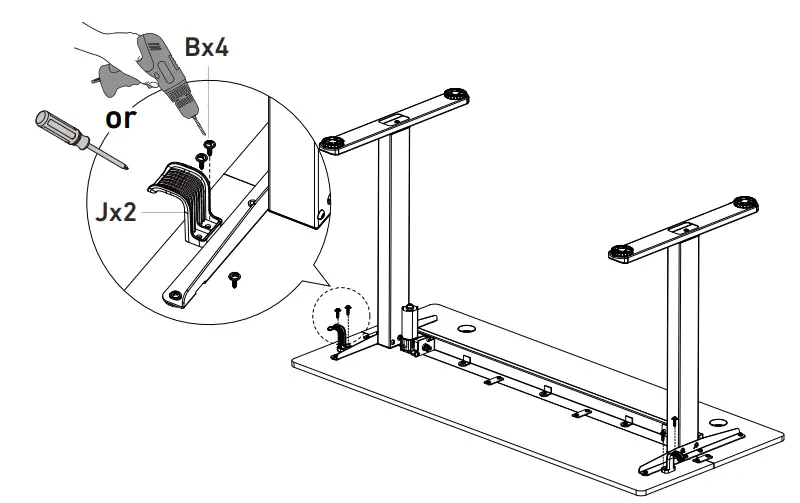

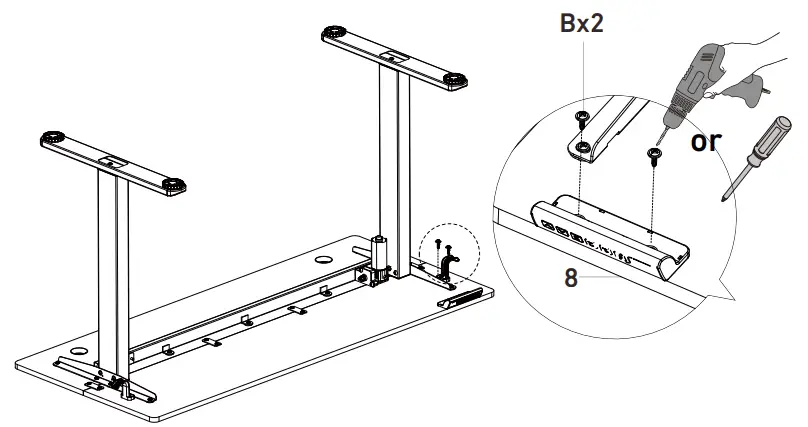

DUMOS B0CKTBD2BM Electric Standing Desk - DesktopDUMOS B0CKTBD2BM Electric Standing Desk - ScrewdriverDUMOS B0CKTBD2BM Electric Standing Desk - DrillDUMOS B0CKTBD2BM Electric Standing Desk - Drill2DUMOS B0CKTBD2BM Electric Standing Desk - Drill3

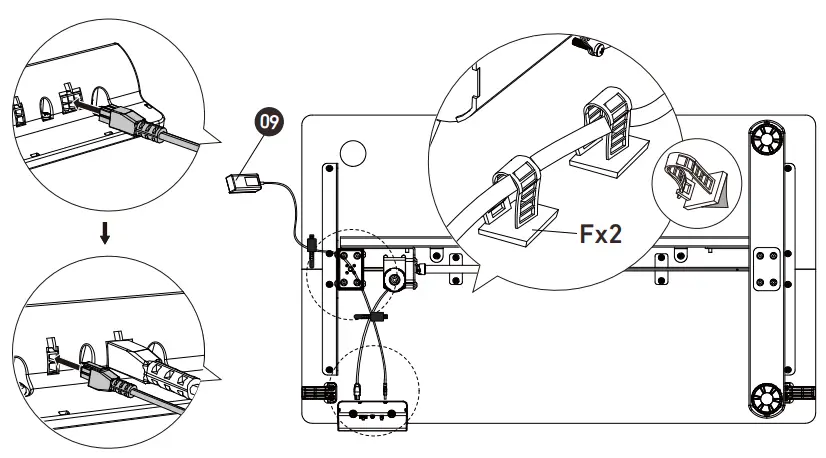

Connecting the Cables

DUMOS B0CKTBD2BM Electric Standing Desk - Connecting the CablesDUMOS B0CKTBD2BM Electric Standing Desk - Connecting the Cables2

Using the Controller

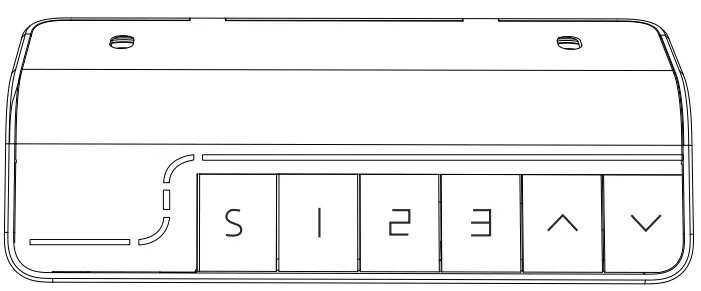

DUMOS B0CKTBD2BM Electric Standing Desk - Controller

Short-press theDUMOS B0CKTBD2BM Electric Standing Desk - buttonbutton, and the display will flash. Press the1 ,2 ,or3 button to save the current height setting to that button.
Press theDUMOS B0CKTBD2BM Electric Standing Desk - button1 button, and the desk will move to the height that was previously set for that button.
Press theDUMOS B0CKTBD2BM Electric Standing Desk - button2 button, and the desk will move to the height that was previously set for that button.
Press theDUMOS B0CKTBD2BM Electric Standing Desk - button3button, and the desk will move to the height that was previously set for that button.
Press the DUMOS B0CKTBD2BM Electric Standing Desk - button4 button to raise the desk continuously until it reaches the highest position of 46.5″ (118cm) or the button is released.
Press theDUMOS B0CKTBD2BM Electric Standing Desk - button5 button to lower the desk continuously until it reaches the lowest position of 28.3″ (72cm) or the button is released.

Settings

  1. Change Display Height Units
    Press and hold theDUMOS B0CKTBD2BM Electric Standing Desk - button button until a flashing’S–‘is displayed. Press DUMOS B0CKTBD2BM Electric Standing Desk - buttonagain and’Un’is displayed. PressDUMOS B0CKTBD2BM Electric Standing Desk - button to select it, press DUMOS B0CKTBD2BM Electric Standing Desk - button4or DUMOS B0CKTBD2BM Electric Standing Desk - button5to switch between ‘IN'(imperial) and’SI’ (metric), and press to save your choice.
  2. Change Collision Detection Sensitivity
    Press and hold DUMOS B0CKTBD2BM Electric Standing Desk - buttonthe button until a flashing’S–‘is displayed. PressDUMOS B0CKTBD2BM Electric Standing Desk - button again and’Un’is displayed. Press DUMOS B0CKTBD2BM Electric Standing Desk - button4or DUMOS B0CKTBD2BM Electric Standing Desk - button5  to switch to’CF’and press to select it.
    Press or to switch between off, low, normal, and high sensitivity.
    Press DUMOS B0CKTBD2BM Electric Standing Desk - buttonto save your choice.
  3. Reset
    Press and hold the button for 5 seconds, and the screen will show ‘RES’.Continue holding until the desk goes down to its lowest level and comes back up slightly.
  4. Protection Mode Error Codes

Protection Mode Error Codes

Hot Overheating Protection: When the motor has been working continuously for 2 minutes, it will stop operating to prevent damage from overheating. Wait for at least 18 minutes before making any further height adjustment.
E10 Sensor Malfunction Warning: Motor safety sensor can’t be detected. Power off, check the connection between the motor and controller, and power back on again.
E20 Overloading Warning: Max load exceeded. If raising the desk take the things off the desk and try again. If lowering the desk, power off, take the things off the desk, power back on
and try again.
E02 Operation Status Warning: The desk stops moving if vibration, impact, or incline are detected. If this detection is incorrect, follow the reset instructions before continuing use.
E32 Overvoltage Protection: Input voltage too high. If the correct AC adapter is being used, power off the desk, check the connection between power and the controller, and power on again.
E31 Undervoltage Protection: Input voltage too low. If the correct AC adapter is being used, power off the desk check the connection between power and the controller and power
on again.
E60 Unequal Leg Height Warning: Power off the desk and check whether the left and right legs are at the same height. Adjust if necessary by following the instructions. Power on again.
Cable Disconnection Warning: Check motor and controller cable connections. Normal operation should return once all connectors are properly connected.

Thank you for choosing this product. We strive to provide you with the best quality products and service in the industry. Should you have any issues, please don’t hesitate to contact us.
