DOMUS Lighting MIRROR-15 Wall Vanity Picture Light Installation Guide

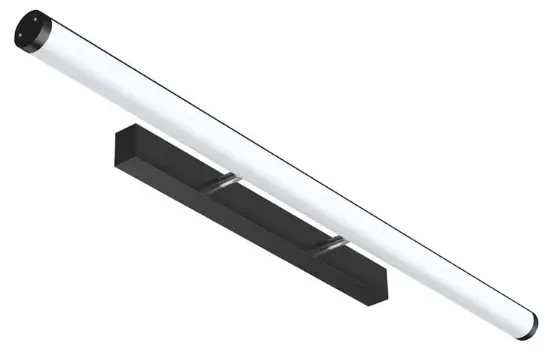

DOMUS Lighting MIRROR-15 Wall Vanity Picture Light

Product Information

• Product Name: LED MIRROR-15
• Variants:
  • Item No. 12011: MIRROR-15-BLK – 15W Vanity light, black finish. Trio colour technology.
  • Item No. 12013: MIRROR-15-CHR – 15W Vanity light, chrome finish. Trio colour technology.
  • Item No. 12015: MIRROR-15-SCHR – 15W Vanity light, satin chrome finish. Trio colour technology.
  • Item No. 12017: MIRROR-15-WHT – 15W Vanity light, white finish.Trio colour technology.
• Specifications:
  • Voltage: 240V AC
  • Power: 15W
  • IP Rating: IP40
  • CRI: 80
  • Beam Angle: Warm White 3000K – 1590lm, Neutral White 4000K – 1718lm, White 5700K – 1845lm
  • CCT: 3000K – 4000K – 5700K (Switchable)
  • Lifespan: 50,000hrs
  • Dimmable: Yes
  • Operating Temp: N/A

Product Usage Instructions

1. Remove the LED MIRROR-15 from the box.
2. Press the hasp to take out the bracket.
3. Knock-in the plastic anchor into the wall.
4. Remove the link pressing clip and fix the bracket with screws into the wall.
5. Connect the wires correspondingly.
6. Fix the lamp to the bracket before turning it on.
7. Slide the preferred CCT (Color Correlated Temperature) setting.
8. Switch on the power supply.

Note:

• The lamp must be installed by a professional electrician.
• Ensure the power supply is switched off before fitting this product.
• Do not touch the lamp when in use.
• Keep away from hot steam and corrosive gas.

MIRROR-15

Variant Item No. Description

12011	MIRROR-15-BLK	15W Vanity light, black finish. Trio colour technology.
12013	MIRROR-15-CHR	15W Vanity light, chrome finish. Trio colour technology.
12015	MIRROR-15-SCHR	15W Vanity light, satin chrome finish. Trio colour technology.
12017	MIRROR-15-WHT	15W Vanity light, white finish. Trio colour technology.

Thank you for purchasing your new LED MIRROR-15, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.

Specifications

Voltage:	240V AC	Lumen (±5%):	Warm White 3000K – 1590lm Neutral White 4000K – 1718lm White 5700K – 1845lm	Dimmable:	No
Power:	15W	Beam Angle:	120°	Operating Temp:	-20°C~45°C
IP Rating:	IP40	CCT:	3000K – 4000K – 5700K (Switchable)
CRI:	≥80	Lifespan:	50,000hrs

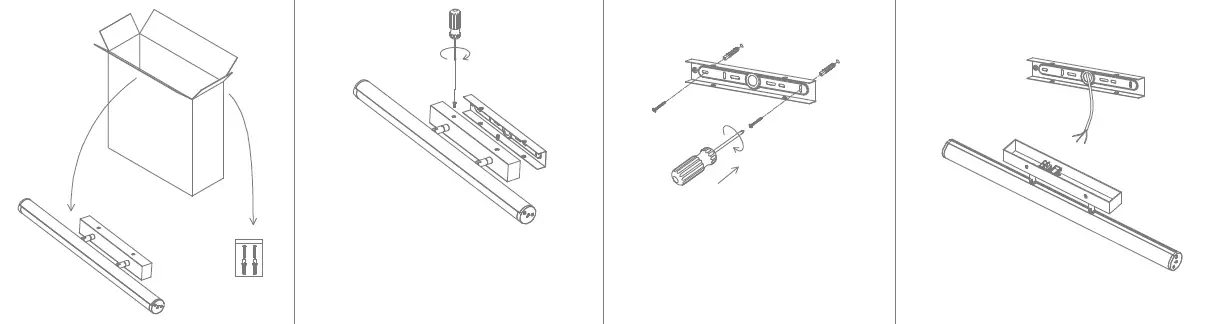

Installation

1. Remove from box
2. Press the hasp to take out the bracket
3. Knock-in the plastic anchor into the wall. Fix bracket with screw into the wall
4. Remove the link pressing clip, connect the wires correspondingly

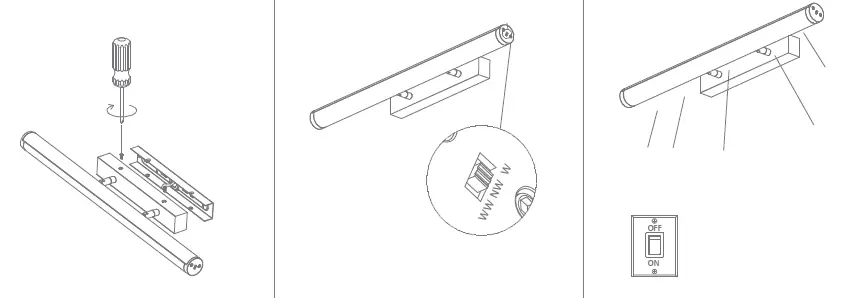

5. Fix the lamp to the bracket
6. Slide the preferred CCT before turning on the lamp.
7. Switch on

Note:

• The lamp must be installed by professional electrician
• Ensure the power supply is switched off before fitting this product
• Do not touch the lamp when in use
• Keep away from hot steam and corrosive gas

29-31 Richland St. Kingsgrove. Sydney NSW 2208 Australia
Phone: 02 9554 9600 | Fax: 02 9554 9433
[email protected] | www.domuslighting.com.au
