Type-C to HDMI/USB-Ax2/RJ45/SD/Mciro
SD/Type-C PD Charging with DP1.4 Alt mode
User Manual
Contents
DE0006 USB C Dongle 7 in 1 with 4K 60Hz HDMI Port
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference.
INTRODUCTION
This is a Type-C 7-in-1 hub with HDMI, 2 USB-A ，RJ45 ，SD/TF card slots and Type-C female port, providing an ideal solution for extending the port of Type-C or Thunderbolt 3 host (PC/Laptop/Mobile phone,etc.),especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2 USB-A ports allow you to connect 2 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host.RJ45 ports allows the host to get access to Gigabit Ethernet. Besides, the Type-C female supports PD 3.0 with max 100W PD Charging. It can work on all DP Alt mode supported Type-C host.
FEATURES
Upstream:
- Type-C Malex1(Connect to host)
- Support DP1.4 Alt mode, downward compatible with DP1.2 Alt mode
Note: To get max bandwidth, the host should support DP1.4 Alt mode with DSC format.
Downstream:
- HDMI
- Support HDMI max 4K/60Hz，4：4 ：4，8bit with 18Gbps Bandwidth
- Support 6/8/10/12 bit color depth output
- Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
- Support HDCP 2.2&HDCP1.4
- Support HDR
Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz; When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4k/30Hz due to bandwidth limitation
- USB-A 3.0X2
- 1 USB-A port supports max 7.5W([email protected]) downstream charging, 2 USB-A share max 8W (5V/1.6A) downstream charging.
- Max 5Gbps bandwidth per USB-A port
- SD/Micro SD
- Support Secure Digital v3.0 UHS-I (Ultra High Speed)：SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(5 0Mbyte/s)/SDR104(104Mbyte/s)
- RJ45 (Gigabit Ethernet ）
- Support 10M/100M/1000M
- Type-C Femalex1(for PD Charging)
- Support PD Charging 100W (20V/5A) Support
- Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
- 8W is dedicated to the functioning of this product, the rest power (max 92W) will be passed to charge for the host
SPECIFICATIONS
| Input/Output Connector | |
| Input | Type-C Male xl |
| Output | HDMI Female xl USB-A Femalex2 SD Card Slotxl 12345X1 Micro SD Card Slotxl Type-C femalexl ( PD&Data) |
| Warranty | |
| Limited Warranty | 1 Year |
| Environmental | |
| Operating Temperature | 0 C to +45 C |
| Operating Humidity | 10% to 90 % RH (no condensation) |
| Storage Temperature | -10’C to +70 C |
| Storage Humidity | 10% to 90 % RH (no condensation) |
| Electronic Parameter | |
| Input Voltage | 5V |
| Power Consumption | Max 2W |
| Power Supply | |
| USB-C PD Charging Port | 100W(20V/5A) |
| Regulatory Approvals | |
| Certifications | FCC,CE |
| Accessory Adapter | |
| User Manual | English Version |
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
- Main unit x1
- User Manual x1

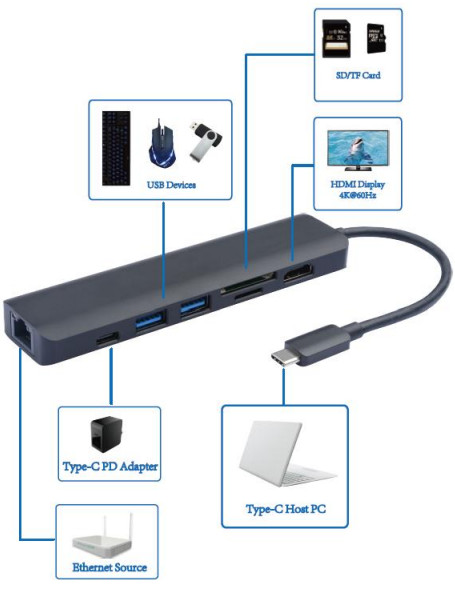

CONNECTION DIAGRAM
