RoboMaster competition. The S1 offers® comprehensive control and an immersive driving experience, thanks to the omnidirectional chassis, agile Mecanum wheels, flexible gimbal, and stable, low-latency image transmission in first person view (FPV). Users can also target objects and battle other robots with the S1’s blaster.
The ROBOMASTER S1 is an educational robot inspired by the DJI The S1 supports Scratch and Python programming. With DJI’s project-based graded tutorials, users can gradually master programming theory and robot system knowledge.
The S1 features Solo mode and Battle mode where users can practice their skills and compete against others. To control the robot, users can choose from the RoboMaster app on a mobile device, the gamepad, or the keyboard and mouse.
Downloading the RoboMaster App and Watching Tutorial Videos
https://www.dji.com/robomaster-s1/video
Search for the RoboMaster app in the App Store or Google Play or scan the QR code to download the app on your mobile device.
Visit the official DJI website https://www.dji.com/robomaster-s1/video or go to the app and enter the Guide page to watch the tutorial videos for assembly and use. You can also assemble the robot according to the assembly guide in the quick start guide.
The RoboMaster app supports iOS 10.0.2 or later or Android 5.0 or later.
Users can also download the RoboMaster software for Windows from the official DJI website on a computer to control the robot with a keyboard and mouse. https://www.dji.com/robomaster_app
After assembly, use your DJI account to activate the robot in the RoboMaster app. Activation requires an internet connection.
Specifications
| Structure | |
| Dimensions | 320 × 240 × 270 mm (L × W × H) |
| Weight | Approx. 3.3 kg |
| Intelligent Controller | |
| Operating Frequency | 2.4 GHz, 5.8 GHz, 5.1 GHz (limited to indoor use) |
| Intelligent Battery | |
| Capacity | 2400 mAh |
| Charging Voltage | 12.6 V |
| Battery Type | LiPo 3S |
| Energy | 25.92 Wh |
In the Box
Check that all of the following items are in your package. If any item is missing, contact DJI or your local dealer.

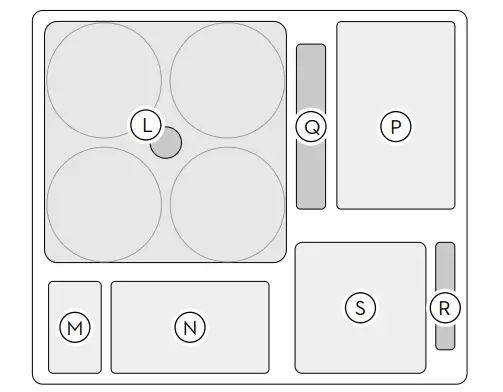

Top Layer:
Middle Layer:
A
Manuals
- Quick Start Guide
- Disclaimer and Safety Guidelines
– At a Glance
Vision Marker
B
×48 (+2)*
B1
Meconium Wheel Roller
C1
Blaster (Gel Bead Container included)
D1

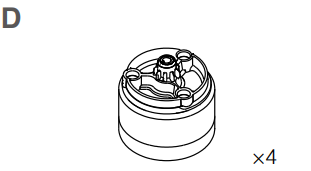

M3508I Brushless Motor and ESC
E1
Damping Ring Bracket
E2
Bottled Gel Beads
F1

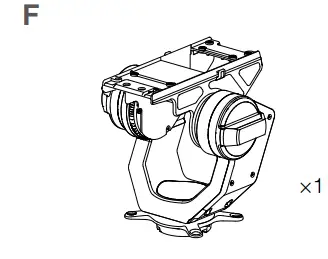

Gimbal
G1
Camera
H1
Front Axle Cover
H2

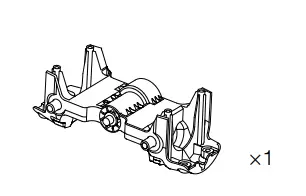

Front Axle Module Base
H4
Chassis Middle Frame (Intelligent Battery included)
H5
Chassis Cabin Cover*
* Attached to the chassis middle frame before delivery.
I1
Hit Detector
J1
Intelligent Controller
K1
Speaker
Bottom Layer:
Overview
| 1. Left-Threaded Mecanum Wheels | 13. Chassis Front Armor |
| 2. Right-Threaded Mecanum Wheels | 14. M3508I Brushless Motors and ESCs |
| 3. Chassis Cover | 15. Motor Mounting Plates |
| 4. Chassis Middle Frame | 16. Gimbal |
| 5. Front Axle Cover | 17. Blaster |
| 6. Front Axle Module Base | 18. Gel Bead Container |
| 7. X-Shaped Front Shaft Cover | 19. Speaker |
| 8. Motion Controller | 20. Intelligent Controller |
| 9. Chassis Left Armor | 21. Camera |
| 10. Chassis Right Armor | 22. Chassis Cabin Cover |
| 11. Chassis Rear Armor | 23. Intelligent Battery |
| 12. Hit Detectors |

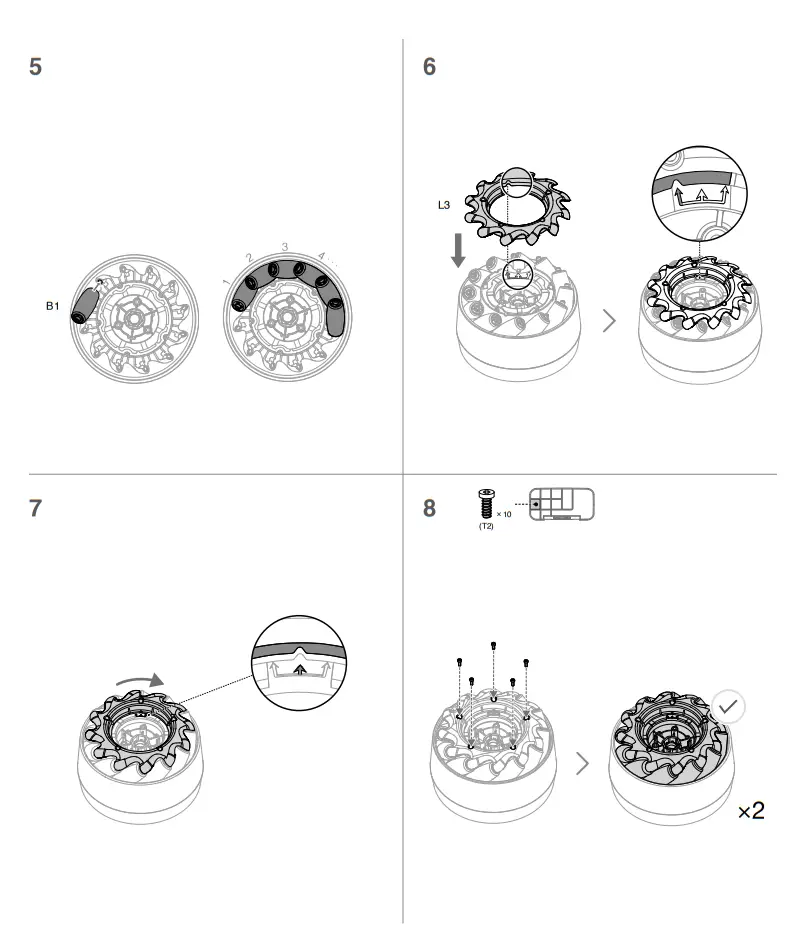

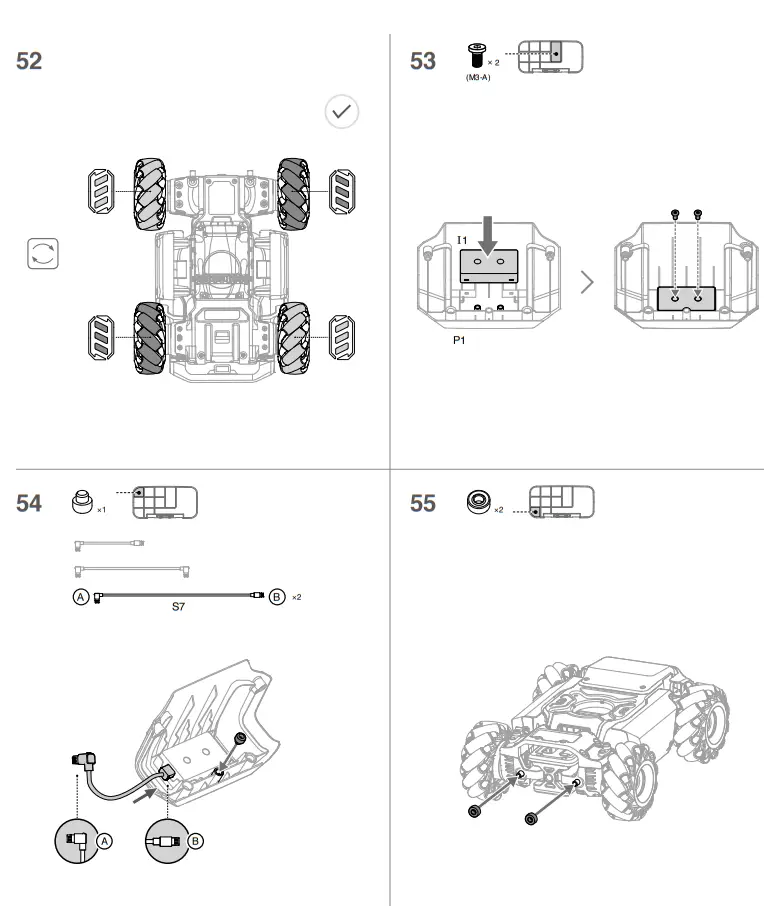

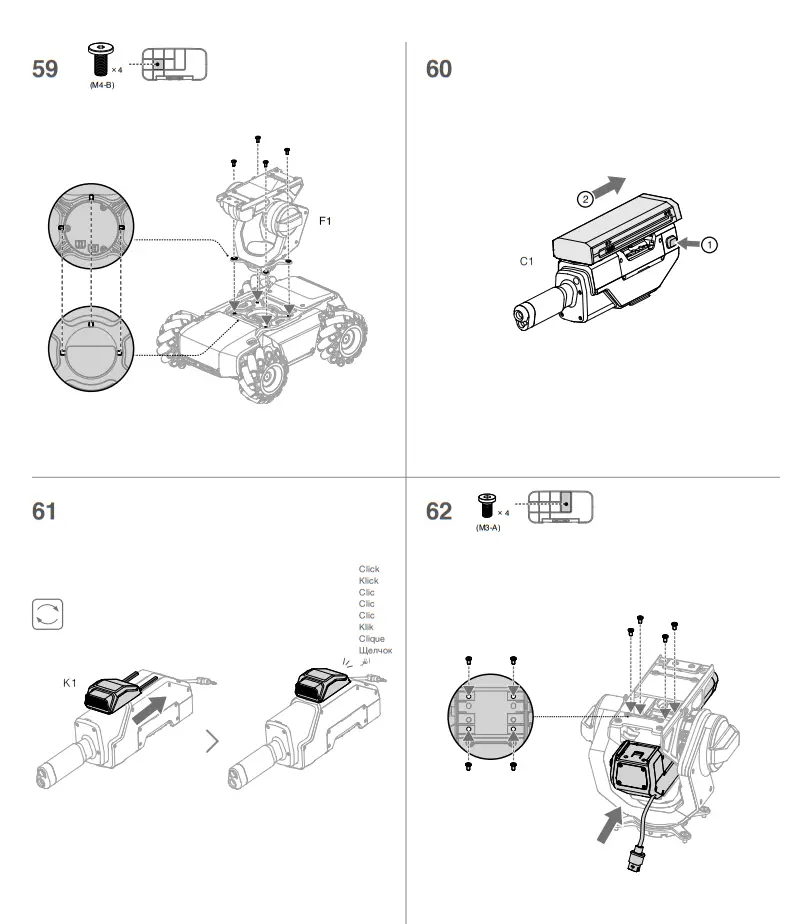

Assembly Guide
Each item has a code. Refer to the In the Box section and check the corresponding code to find out where each item is located in the package.
Powering On and Activating the S1

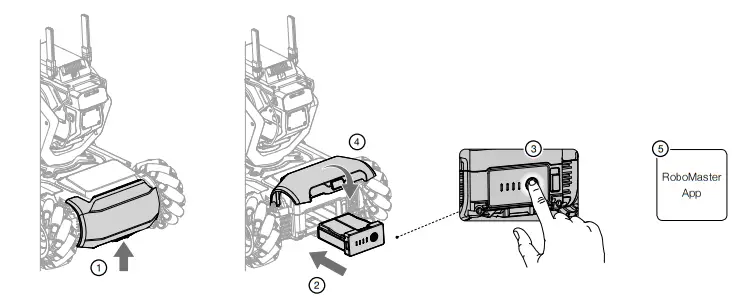

Insert the Intelligent Battery into the S1, press and hold the power button on the Intelligent Battery to power it on, and connect to the app to activate the S1.
The content is subject to change without prior notice.
Visit the product page on the official DJI website for more information.
