DIGITUS DN-95357 Gigabit PoE Switch
Introduction
DN-95357 has a CCTV function for 250 meters of ultra-long-distance transmission. Users can choose to turn on or off the CCTV function. Improve network security and restrain network storms, facilitate management and maintenance, and meet the networking and access requirements of enterprises, communities, and hotels. office networks, and campus networks.
Main Features
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
- Stand-up output power up to 30W
- Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control
- Panel lights to monitor the working state and help with fault analysis
- Perfect security mechanism
- Line-speed forwarding intelligent identification
- Support CCTV Function
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
- Support PD-ALIVE function
Package Contents
- PoE Switch
- User Guide
- Power Cord
Product Specification
| Technical | |
| Interface | 10＊10/100/1000Mbps auto-negotiation RJ45 port |
| PoE port | 1 ~ 8 |
| PoE stand | IEEE802.3af/at |
| PoE total | 60 W |
| Power supply | 65 W |
| Key function | CCTV |
| PoE port output | Max 30W |
| RJ45 PoE power supply | Mode A, Anode 1/2,
Cathode 3/6 |
| Indicator | PWR (Green), LNK/ACT (Green)
PoE (Orange) |
| Network media | 10 BASE-T: UTP category 3,4,5 cable (≤100m),
100 BASE-TX: UTP category 5, 5e cable (≤100m), 1000 BASE-T: UTP category 5, 5e cable (≤100m) |
| MAC Address Table | 2K, Automatic study,
automatic updates |
| Jumbo frame | 9216 Bytes |
| Packet buffer | 2Mbit |
| Transfer Mode | Store-and-forward |
| Packet Forward Speed | 14.88Mpps |
| Bandwidth | 20Gbps |
| Device Dimension | 168 x 93 x 32mm |
| Green energy saving | Support IEEE (802.3az) |
| Mains input | 100 ~ 240V AC, 50/60Hz |
| Operating Temperature | 0°C ~ 40 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Surge Protection | Common mode ± 2KV,
differential mode ± 1KV |
| MTBF | >50000 hour |
| Electrostatic standard | Contact ±6KV, air ± 8KV |
Hardware Description
Front Panel

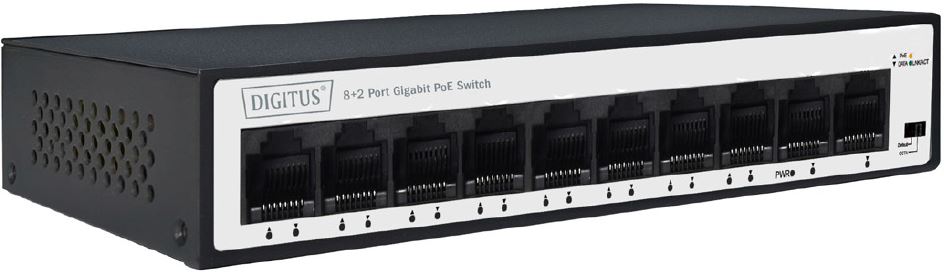

The Front Panel Consists of Ethernet Ports. The LED indicators are also located on the panel.
DIP Switch: The DIP switch is located on the right of the panel.
Default: the factory default mode, can normal communication between ports 1~10.
CCTV mode: 1-8 ports can be isolated from each other, but 1-8 ports can connect to 9, 10 ports after opening CCTV to stop broadcast storm to increase the forwarding rate of the frame. The CCTV mode, up to 250m PoE distance allows you to expand your network via Ethernet cable to where there is no power line or outlet but where you want to fix devices such as IP Cameras.
Note: After changing the mode, there is no need to restart manually to make the corresponding configuration take effect.
LED indicator
|
LED |
Color |
Function |
| PWR | Green | Off: No Power supply.
Light: Indicates the switch has power. |
|
LNK/ ACT |
Green |
Off: No device is connected to the corresponding port.
Light: Indicates the link through that port is successfully established at 10/100Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port. |
|
PoE |
Orange |
Off: No PoE-powered device (PD) connected.
Light: There is a PoE PD connected to be port, which supplies power successfully. Blink: Indicates port abnormal power supply. |
Rear Panel
The rear panel of the PoE Switch indicates an AC inlet power socket, which accepts input power from 100 to 240V AC, 50/60HZ.
Power socket
Connect the female connector of the power cord here, and the male connector to the AC (Alternating Current) power outlet. Please make sure the voltage of the power supply meets the requirement of the input voltage.
Grounding column
The switch already comes with a lightning protection mechanism. You can also ground the switch through the PE (Protecting Earth) cable of the AC cord or with Ground Cable.
Installation the Switch
This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions to avoid incorrect installation causing device damage and security threat.
- Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with a wet cloth or liquid;
- Do not place the switch near water or any damp area. Prevent water or moisture from entering the switch chassis;
- Do not place the switch on an unstable case or desk. The switch might be damaged severely in case of a fall;
- Ensure proper ventilation of the equipment room and keep the ventilation vents of the switch free of obstruction;
- Make sure that the operating voltage is the same one labeled on the switch;
- To avoid the danger of electric shock, do not open the chassis without authorization;
Desktop Installation
- Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each corner of the Switch in case of external vibration. Allow adequate space for ventilation between the device and the objects around it.
Wall-mounted installation
- In the first two fixed screw on the wall as shown in the figure below. Aim at the two fixed hole switches (M4 screw, nut diameter 7mm) and the machine smoothly on the screw.
Turn on the switch
Please connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded). When the switch is powered on, the LED indicators flash momentarily for one second, which represents a resetting of the system. The Power LED indicator turns on green.
Note: Please confirm the voltage is correct before powering on, otherwise the switch will be damaged. (The power input is: 100V-240Vac, 50/60Hz)
