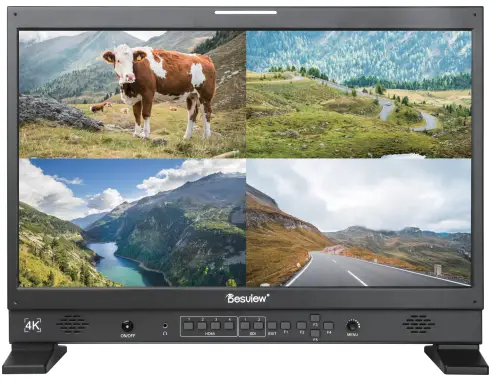

Desview S24-HDR 24 Inch 4K HDR Multi View Broadcast Director Monitor
Welcome
Thank you for choosing the Desview 4K HDR broadcast monitor which for the professional film make using.It adopts a 24-inch 3840×2160 4K LCD full-view display panel, which supports 4 channels of 4K HDMI video signal input and 1 channel HDMI output, 2x 3G-SDI video signals input and 1 x 3G-SDI output. It perfectly equipped with the vast majority of cameras on the market.
Precautions
- Make sure to read the instruction carefully before using.
- Please check and confirm that the product accessories are complete after unpacking. If there is anything missing, please contact the seller.

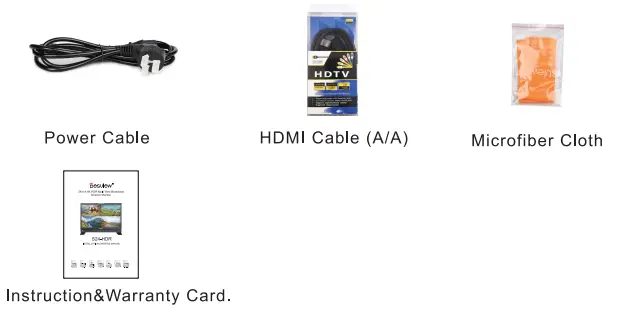

Accessories

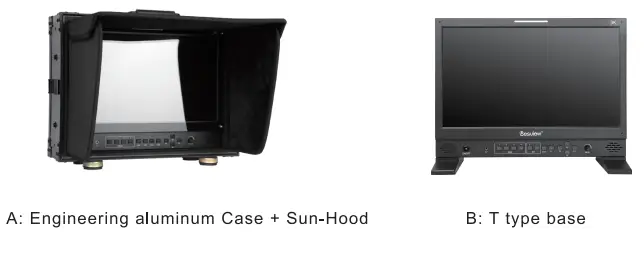

Assembly Option

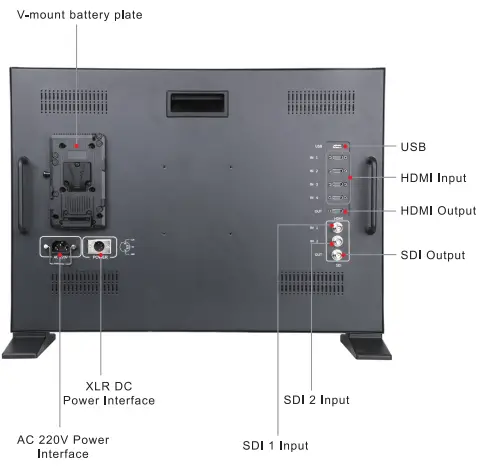

Signal connect
| HDMI | 3G-SDI | USB | |||
| Input | x4 | x2 | |||
|
Output |
x1 |
x1 |
x1
(5V/2A) |
Power

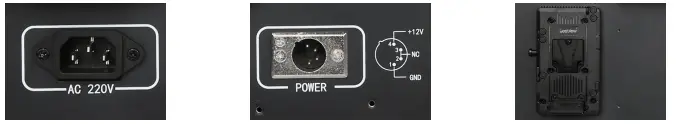

Power Connect
- AC 220V Power Interface
- XLR Power Interface
- V-mount battery plate
Power Button
Connect the power cable > Find the Power Button in front > Press to turn on/off.

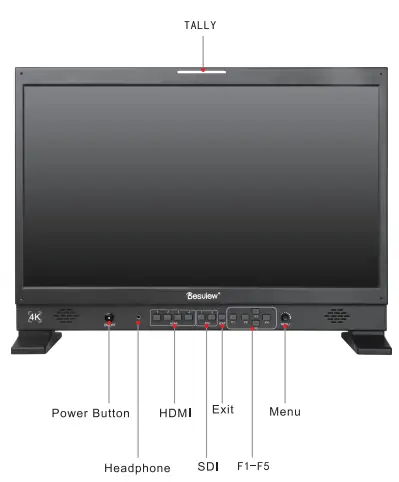

Control Panel
Specifications
|
Display |
Screen Size: 24inch | Resolution: 3840×2160 |
| Brightness: 400cd/m2 | Contrast Ratio: 1000: 1 | |
| Viewing Angel: 178° ( HIV) | ||
|
Signal |
Input Signal | Output Signal |
| 4x HDMI | 1x HDMI | |
| 2x 3G-SDI | 1x 3G-SDI | |
| HDMI | 3G-SDI | |
|
720x480i&[email protected], 60Hz |
720x480i&@59.94, 60Hz |
|
| 720x576i& 720x576p@50 Hz | 720x576i&@50Hz | |
| 1280x720p@50, 59.94, 60Hz | 1280x720p@50, 59.94, 60Hz | |
| 1920x1080i@50, 59.94, 60Hz | 1920x1080i@50, 59.94, 60Hz | |
| Signal | 1920x1080psf@24, 25, 29.97, 30Hz | 1920x1080psf@24, 25, 29.97, 30Hz |
| Forma | [email protected], 24, 25, 29.97,30, | [email protected], 24, 25, 29.97, |
| 50,59.94,60Hz | 30Hz | |
| 3840x2160p@24,25,30Hz [(HDMI 2)] | ||
| [email protected],24,25,29.97,30Hz | ||
| [(HDMI 2)] | ||
|
Power |
AC:100-240V,50/60Hz DC:12-24V | |
| Power Consumption: e,36W Typ | ||
|
Working Environment |
Working Temperature:-20 “C- 60 C Stored Temperature: -30·c-70·c | |
| Relative Humidity:No condensation operating humidity10%-90% | ||

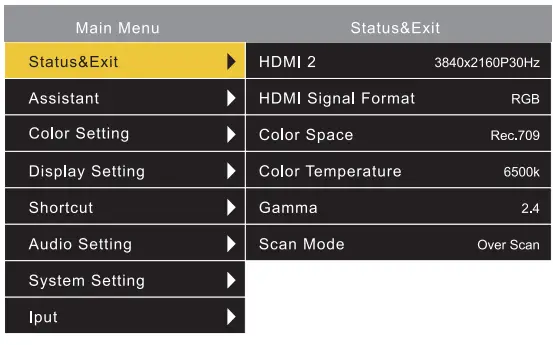

OSD
Assistant
| Monochrome | Off, Red, Green, Blue, Black/White |
| Center Mark | Off, On |
| False Color | Off, On |
| Safety Border | Off, 80%, 85%, 90%, 93%, 95% |
| Make Ratio | Off, 1 6: 1 O, 4: 3, 2. 35 : 1 , 1 . 85 : 1 |
| Make Color | While, Red, Green, Blue |
| Display Border | Off, On |
| Battery | Off, On |
| Exit |
Color Setting
| Color Space | Off, EBU, SMPTE_C, Rec.709, DCI-P3 |
| HOR | Off, ST2084 |
| Gamma | Off, 2.2, 2.4, 2.6 |
| Color Temperature | 5600K, 6500K, 9300K, User |
| Brightness | 0-100 ( User) |
| Contrast | 0-100 ( User) |
| Saturstion | 0-100 ( User) |
| Sharpness | 0-100 ( User) |
| Backlight | 0-100 |
| Red | 0-255 ( User) |
| Green | 0-255 ( User) |
| Blue | 0-255 ( User) |
| Exit |
Display Setting
| Aspect Ratio | Auto, 4:3, 16:9, 16:10, 2.35:1, 1.85:1, Full Screen |
| Scan Mode | Over Scan, Standard |
| Pixel to Pixel | Off, On |
| U/0 Rotation | Off, On |
| Freeze | Off, On |
| Display Mode | 1P, 2P_LR, 2P_TB, 2P_PIP, 4P |
| Display Swap | Off, On |
| Exit |
Shortcut
| F1 | Display (Default, Custom) |
| F2 | Mute (Default, Custom) |
| F3 | Center Mark (Default, Custom) |
| F4 | Make Ratio (Default, Custom) |
| F5 | Safty Border (Default, Custom) |
| Exit |
Audio Setting
| Volume | 0-100 |
| Mute | Off, On |
| Audio Source | HDMI |
| Exit |
System Setting
| Language | Chinese, English |
| OSD Background | Black, Gray |
| OSD Time | Off, 5s, 10s, 15s |
| OSD Transparency | 0-10 |
| Rsset | Cancel, Confirm |
| Servicesupport | www.bestview.cc |
| +86-755-2844 7130 | |
| Exit |
Input
| Input | SDI 1, SDI 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 |
| Exit |
Attention: There will not be a notice for the update, this instruction is for reference only. Please be subject to the actual product
