Desview S21 HB High Brightness Desktop Monitor Owner’s Manual
Contents
Welcome
Thank you for choosing the Desview HDR broadcast monitor which for the profes- sional film make using.It adopts a 21.5 inch 1920X1080 LCD full-view display panel, which supports 4 channels of 4K HDMI video signal input and 1 channel HDMI output, 2x 3G-SDI video signals input and 1x 3G-SDI output. It perfectly equipped with the vast majority of cameras on the market.
Precautions:
- Make sure to read the instruction carefully before using.
- Please check and confirm that the product accessories are complete after unpacking. If there is anything missing, please contact the seller.
Accessories:
Power Cable
HDMI Cable (A/A)
Microfiber Cloth
Instruction &Warranty Card.
Assembly Option

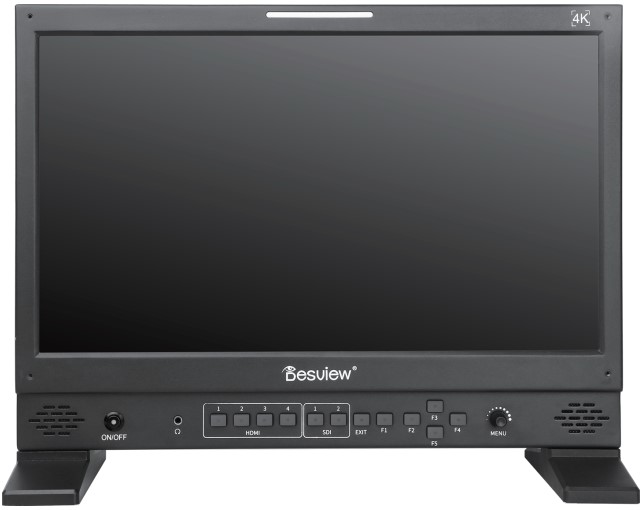

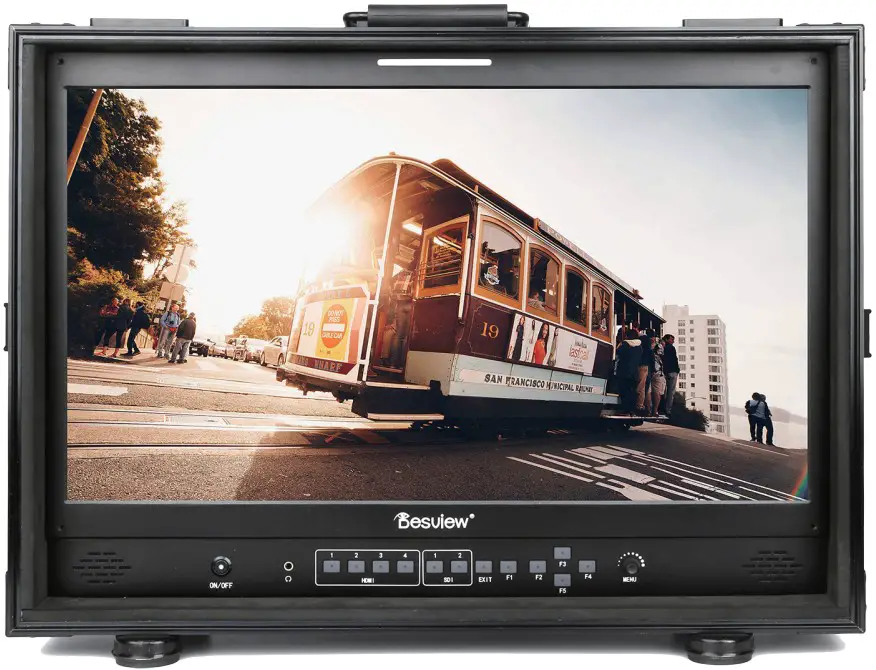

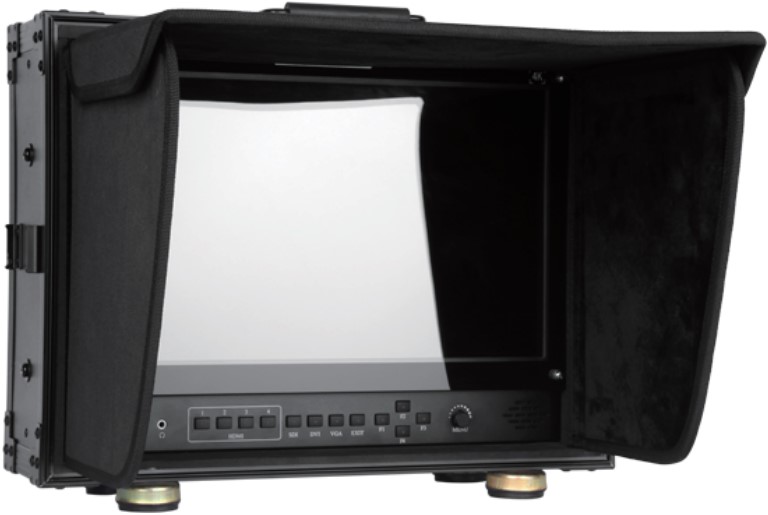

A: Engineering aluminum Case + Sun-Hood
B: T type base
Signal connect
| HDMI | 3G-SDI | USB | |
| Input | X 4 | X 2 | |
| Output | X 1 | x1 | x1 (5v/2A) |

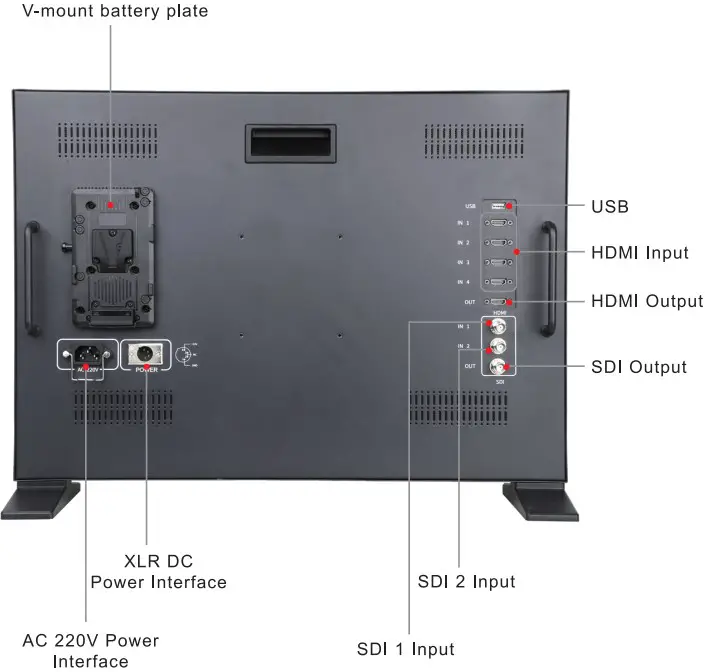

Power Connect
AC 220V Power Interface

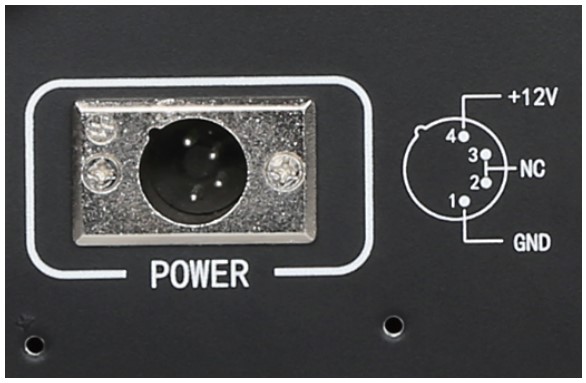

XLR Power Interface

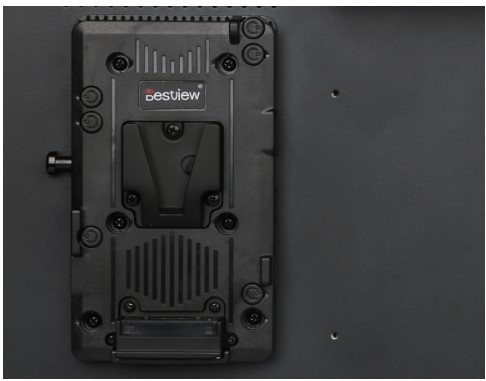

V-mount battery plate
Power Button

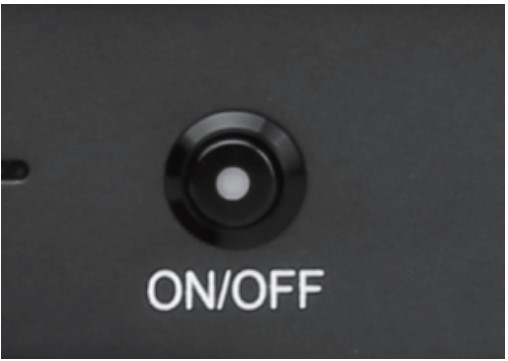

Connect the power cable > Find the Power Button in front > Press to turn on/off.

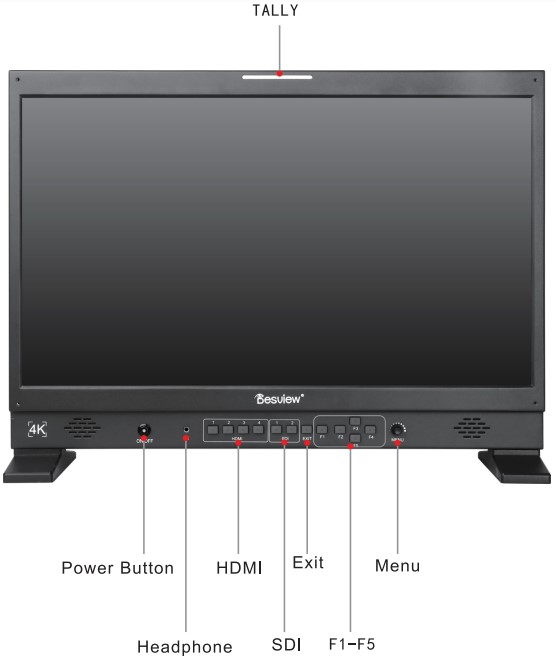

Control Panel
Control Panel
Specification
| Display | Screen Size: 21.5 inch | Resolution: 1920×1080 |
| Brightness: 1000cd/m? | Contrast Ratio: 1000: 1 | |
| Viewing Angel: 178° (H/V) | ||
| signal | Input Signal | Output Signal |
| 4x HDMI | 1x HDMI | |
| 2x 3G-SDI | 1x 3G-SDI | |
| Signal Forma | HOMI | 3G-SDI |
| 720x480i&[email protected], 60Hz 720×5761&720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 20.97,30, 50,59.94,60Hz 3840x2160p@24,25,30Hz[(HDMI 1/2)] [email protected],24,25,29.97,30Hz ((HDMI 1/2)] |
[email protected], 60Hz 720×57618@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 29.97, 50,59.94,60Hz 30Hz |
|
| Power | AC:100-240V,50/60Hz DC:12-24V | |
| Power Consumption: = 26 w Typ | ||
| Working Environment | Working Temperature:-20 C— 60 C Stored Temperature: -30 C—70C | |
| Relative Humidity:No condensation operating humidity10%-90% | ||

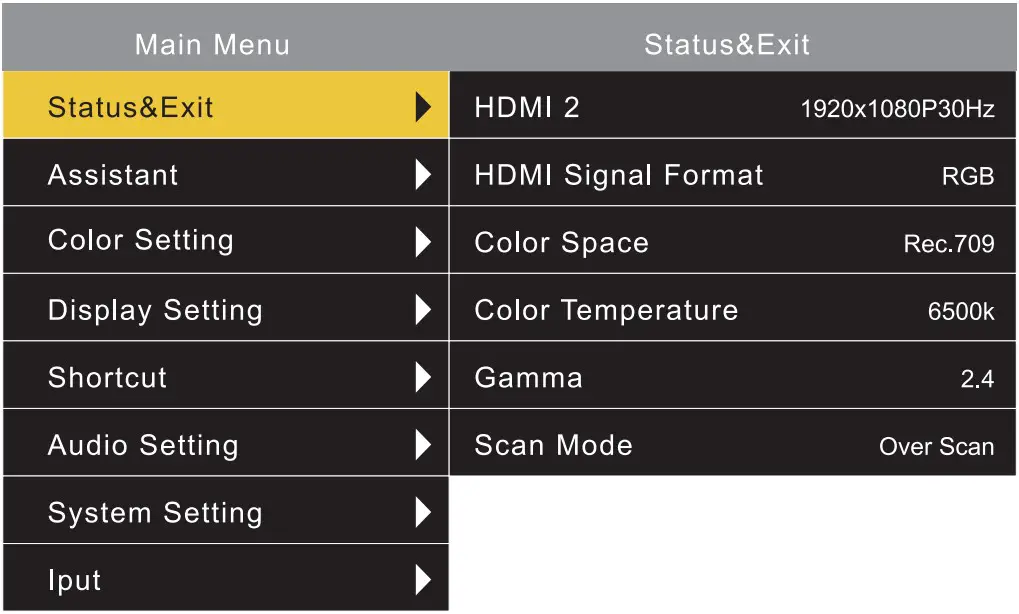

OSD
Assistant
| Monochrome | Off. Red. Green. Blue. Black/White |
| Center Mark | off. On |
| False Color | off. On |
| Safety Border | Off. 80%-. 85%-. 90%-. 93%-. 95% |
| Make Ratio | Off, 16:10, 4:3, 2.35:1, 1.85:1 |
| Make Color | White. Red. Green. Blue |
| Display Border | off. On |
| Battery | off. On |
| Exit |
OSD
Color Setting
| Color Space | Off. EBU. SMPTE_C. Rec.709. DCI-P3 |
| HDR | Off. S8T2084 |
| Gamma | Off. 2.2, 2.4. 2.6 |
| Color Temperature | 5600K. 6500K. 9300K. User |
| Brightness | 0-255 |
| Contrast | 0-255 |
| Saturstion | 0-255 |
| Sharpness | 0-255 |
| Backlight | 0-255 |
| Red | 0-255 |
| Green | 0-255 |
| Blue | 0-255 |
| Exit | 0-255 |
| Display Setting | |
| Aspect Ratio | Auto. 4:3. 16:9. 16:10. 2.35:1. 1.85:1. Full Screen |
| Scan Mode | Over Scan. Standard |
| Pixel to Pixel | Off. On |
| U/D Rotation | Off. On |
| Freeze | Off. On |
| Display Mode | 1P. 2P_LR. 2P_TB. 2P_PIP. 4P |
| Display Swap | off. On |
| Exit | |
Shortcut
| F1 | Display (Default, Custom) |
| F2 | Mute (Default, Custom) |
| F3 | Center Mark (Default, Custom) |
| Fa4 | Make Ratio (Default, Custom) |
| F5 | Safty Border (Default, Custom) |
| Exit | |
| Audio Setting | |
| Volume | 0-100 |
| Mute | Off. On |
| Audio Source | HDMI1. HDMI2. HDMI3. HDMI4. SDI1. SDI2 |
| Exit | |
| System Setting | |
| Language | Chinese. English |
| 0SD Background | Black. Gray |
| OSD Time | Off. 5s. 10s. 15s |
| 0SD Transparency | 0-10 |
| Rsset | Cancel. Confirm |
| Services upport | www.desview.com |
| +86-755-28447130 | |
| Exit | |
Input
| Main screen input source | [SDI 1. SDI 2. HDMI 1. HDMI 2. HDMI 3. HDMI 4 |
| Subscreen input source | [SDI 1. SDI 2. HDMI 1. HDMI 2. HDMI 3. HDMI 4 |
| Exit |
Attenton: There will not be a notice for the update, this instruction is for reference only. Please be subject to the actual product.
