Welcome!
Thank you for choosing the Desview 4K HDR broadcast monitor which for the professional film make using.It adopts a 17 .3-inch 3840×2160 4K LCD full-view display panel, which supports 4 channels of 4K HDMI video signal input and 1 channel HDMI output, 2x 3G-SDI video signals input and 1x 3G-SDI output. It perfectly equipped with the vast majority of cameras on the market.
Features
Precautions
- Make sure to read the instruction carefully before using.
- Please check and confirm that the product accessories are complete after unpacking.
If there is anything missing, please contact the seller.
Accessories
- Power Cable
- HDMI Cable (A/A)
- Microfiber Cloth
- Instruction & Warranty Card.
Assembly Option

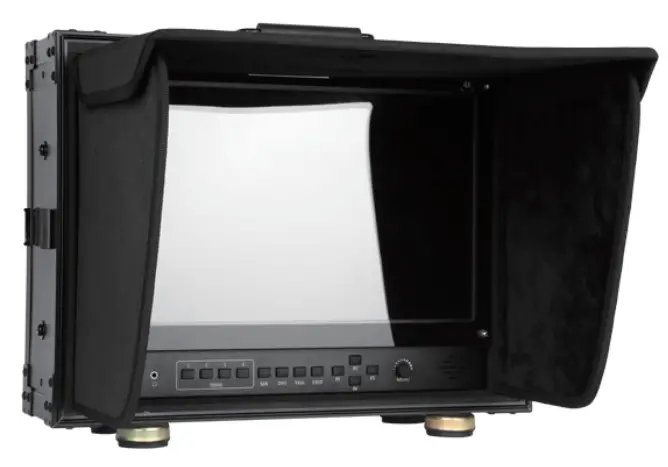

A: Engineering aluminum Case + Sun-Hood
B: T type base
Signal connect
| HDMI | 3G-SDI | USB | |
| Input | x2 | x2 | |
| Output | x1 | x1 | x1 (5V/2A) |
Power Connect
- AC 220V Power Interface
- XLR Power Interface
- V-mount battery plate
Power Button
Connect the power cable > Find the Power Button in front > Press to turn on/off.
Control Panel
Specifications
| Display | Screen Size: 17.3inch | Resolution: 3840×2160 |
| Brightness: 400cd/m2 | Contrast Ratio: 1000: 1 | |
| Viewing Angel: 178° ( HI V) | ||
| Signal | Input Signa l | Output Signal |
| 4x HDMI | 1x HDMI | |
| 2x 3G-SDI | 1x 3G-SDI | |
| Signal Forma | HDMI | 3G- SDI |
| 720 x480 i&720x480p@59 .94, 60Hz 720x576i&720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50 , 59.94, 60Hz 1920x1080psf@24, 25 , 29.97, 30Hz [email protected], 24, 25, 29.91 7,30, 50,59.94,60Hz 3840x2160p @24, 25,30Hz [(HDM I 12)] [email protected],24,25,29 .97,30Hz [(HDMI 12)] |
720x480i&@59.94, 60Hz 720x576i&@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 29.97, 30Hz |
|
| Power | AC:100-240V,50/60Hz DC:12-24V | |
| Power Consumption : $21.6W Typ | ||
| Working Environment | Working Temperature:-20 C- 60 C Stored Temperature: -30 C- 70 C | |
| Relative Humidity:No condensation operating humidity 10%- 90% | ||
OSD
Assistant
| Monochrome | Off, Red, Green, Blue. Black/White |
| Center Mark | Off.. On |
| False Color | Off.. On |
| Safety Border | Off .. 80%-. 85%-. 90%-. 93%-. 95% |
| Make Ratio | Off, 1 6: 1 0, 4: 3, 2. 35 : 1 , 1 . 85 : 1 |
| Make Color | White, Red, Green, Blue |
| Display Border | Off On |
| Battery | Off On |
| Exit |
Color Setting
| Color Space | Off, EBU, SMPTE C, Rec. 709, DCI-P3 |
| HOR | Off, ST2084 |
| Gamma | Off, 2.2 , 2.4, 2.6 |
| Color Temperature | 5600K, 6500K, 9300K, User |
| Brightness | 0-100 ( User) |
| Contrast | 0-100 ( User) |
| Saturation | 0-100 ( User) |
| Sharpness | 0-100 ( User) |
| Backlight | 0-100 |
| Red | 0-255 ( User) |
| Green | 0-255 ( User) |
| Blue | 0-255 ( User) |
| Exit |
Display Setting
| Aspect Ratio | Auto” 4:3″ 16:9″ 16:10″ 2.35:1″ 1.85:1″ Full Screen |
| Scan Mode | Over Scan” Standard |
| Pixel to Pixel | Off On |
| U/D Rotation | Off On |
| Freeze | Off On |
| Display Mode | 1 P” 2P- LR” 2P- TB-. 2P- PIP-. 4P |
| Display Swap | Off On |
| Exit |
Shortcut
| F1 | Display (Default, Custom) |
| F2 | Mute (Default, Custom) |
| F3 | Center Mark (Default, Custom) |
| F4 | Make Ratio (Default, Custom) |
| F5 | Safty Border (Default, Custom) |
| Exit |
Audio Setting
| Volume | 0-100 |
| Mute | Off On |
| Audio Source | HDMI |
| Exit |
System Setting
| Language | Chinese, English |
| OSD Background | Black, Gray |
| OSD Time | Off, 5s, 1 Os, 15s |
| OSD Transparency | 0-10 |
| Reset | Cancel, Confirm |
| Service Support | www.bestview.cc |
| +86-755-28447130 | |
| Exit |
Input
| Input | SDI 1″ SDI 2″ HDMI 1″ HDMI 2″ HDMI 3″ HDMI 4 |
| Exit |
Attention: There will not be a notice for the update, this instruction is for reference only. Please be subject to the actual product.
