DEPSTECH DS530 Triple Lens Endoscope Inspection Camera User Manual

DS530 Triple Lens Endoscope Inspection Camera
User Manual

DS530 Triple Lens Endoscope Inspection Camera

DS530

Product Features

DEPSTECH is an S&T company with robust development status. It is specialized in manufacturing of various endoscopes to improve your working efficiency.

• DS530 is a high-performance industrial endoscope, equipped with 5 inch IPS high-definition display has the camera and video functions and saves into TF memory card (Micro-SD card).
• DS530 is also fitted with microphone and loudspeaker to bring clearer audio and video effect.
• It is also designed with 2,200mA ultra-large capacity battery to ensure long endurance and premium experience.
• High-performance CMOS chip, supporting record high frame rate, obtaining clear images with Blurt 3.0 technology, widely used in industrial maintenance, home appliance repair, machinery repair and design, etc.

Safety and Protection

• Probe of camera is an electronic device of high precision, so please do not hit the probe of camera or pull the cables, which may lead to failure of the device.
• With IP67 waterproof layer, the probe shall be used with extra care and protected from scratches!
• Camera probe is made from materials that are not high temperature resistant, so make sure the internal temperature of any internal combustion engine or other equipment whose internal temperature is higher has been cooled  when they are examined, otherwise the device will be directly damaged!
• In case of device damaged, please do not dismantle it by yourself, but contact the seller or the supplier for more professional maintenance services.
• Children may not use this device independently without the guidance of adults.

Operating and Storage Environments

• The device should be operated at an ambient temperature of 32~113℉(0~45℃).
• The device should be stored in a dry, clean, oil-free and waterless place without any chemical liquid.

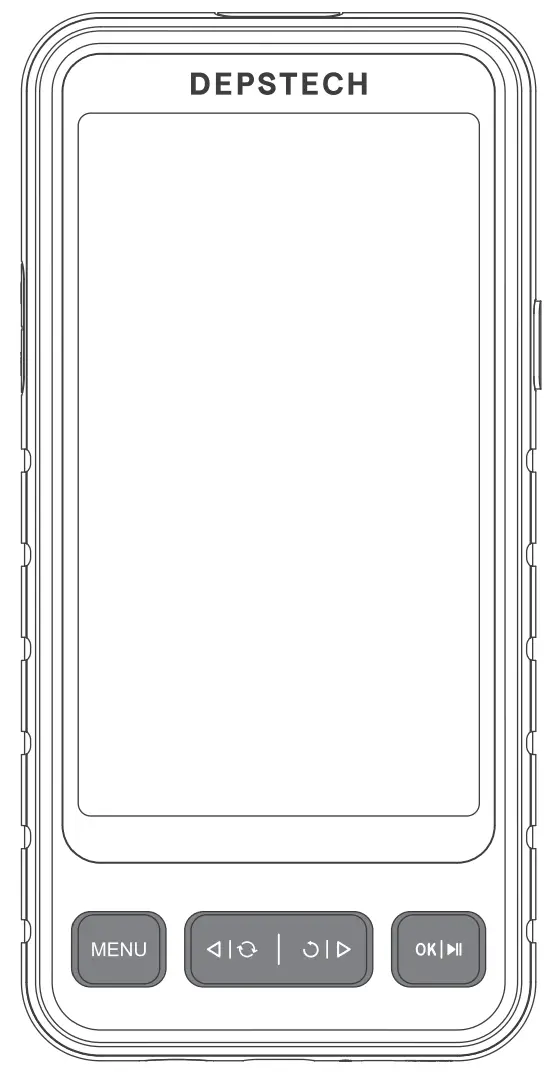

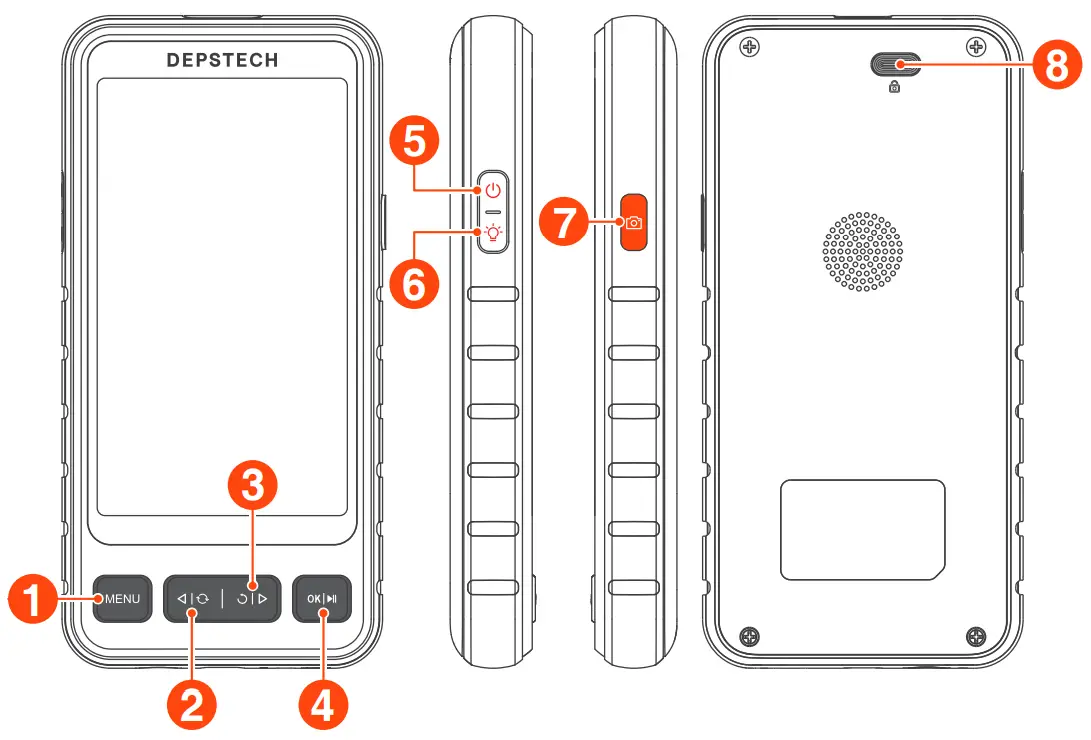

Product Appearance

1.  MENU
   • Click to enter the menu.
2.
   • Click to switch main / side camera
   • Move the cursor up. (In the menu)
3.
   • Click to rotate the real-time image 180°
   • Move the cursor down. (When in the menu)
4.
   • Hold this button for 2s to enter / exit the album.
   • Click to confirm the selections. (When in the menu)
5. • Hold this button for 2s to power on / off the endoscope.
6.
   • Click to adjust the brightness of
   LED light in the lens.
7.
   • Single press to take a photo or end the video record.
   • Hold this button for 2s to start a video record.
8.
   • Press and hold to pull out the camera cable.
9.
   • Support up to 32G TF card
   • Please format it on first use
10.
    • For charging (Type-C cable connected to the adapter)
    • For data transmission (Type-C cable connected to PC client)
11. Reset
    • Short click the reset button to shut down the device
12.
    • Connect the camera cable

UI Introduction

Power on

Hold this button for 2s to power on / off the endoscope.
Tips:
It is recommended to fully charge the equipment before first use.

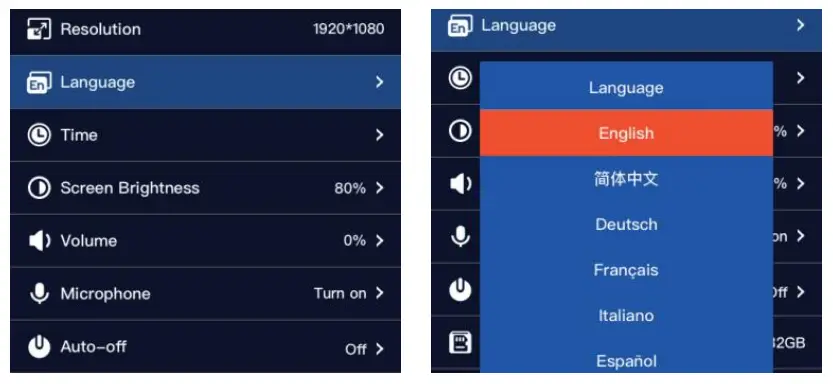

Language Setting

Default language of the device is English; If other language is required, please follow the steps below:

1. Click the MENU button to enter menu interface.
2. Select Language by click the button and then click the button, enter the language setting interface.
3. Click button to select the language you need, and then click the button to switch the language.
4. Click the MENU button to return the main Interface.

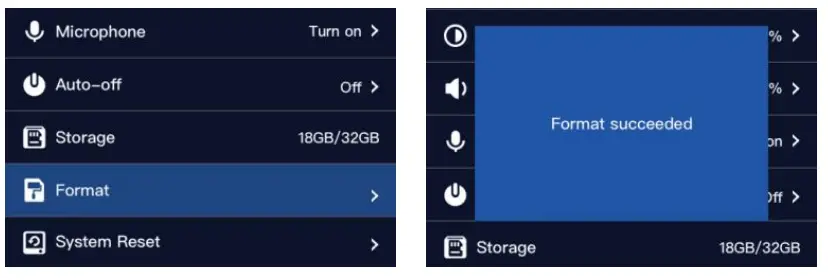

TF Card Formatting

1. Click MENU button to enter the menu.
2. Click to select “Format” options.
3. Click to enter the option interface, Select “OK”.
4. Wait for the formatting to complete.
   Tips: TF card’s maximum support is 128G expansion.
   Memory cards with more than 32G capacity need to be formatted before use, otherwise they cannot be used.

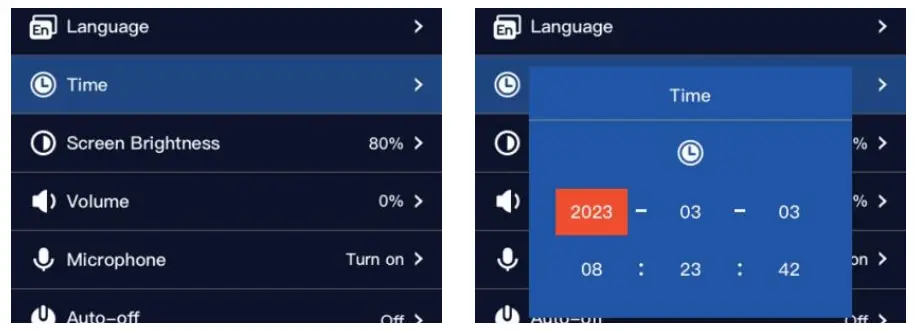

Time Setting

1. Click MENU button to enter the menu.
2. Click to select “Time” options.
3. Click to increase the value and to decrease the value.
4. Click to enter the next numeric setting.
5. After the setting is completed, click button to confirm, and the time setting is completed.
   Tips: Time setting is necessary. Correct time information is helpful to consult documents accurately.

Photo / Video

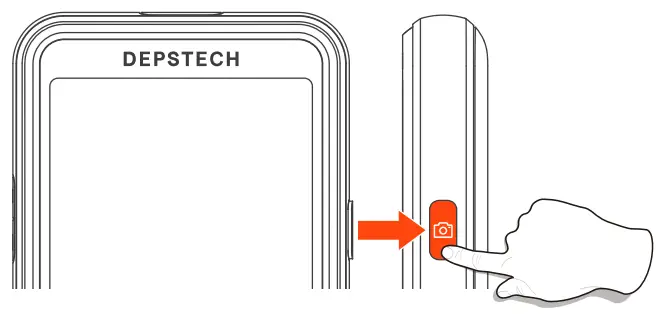

1. Take photos by click button.
2. Long press to start a video recording, single click to the end video recording.


View Photo / Video

1. Long press in preview mode to enter the photo album.
2. Click    to view photos, Click to play videos.
3. Long press to exit the photo album.

View File Properties / Delete Files

In the single material viewing interface.

1. Click the MENU to view the material details.
2. Select Delete or Delete all options.
3. Click to delete the material.

Lens Switching

Only available for dual and triple lens products.
When the product is turned on, it opens the main lens by default.
Click to the button can switch the lens.
Lens LED Light Brightness Adjustment

1. The LED light of the lens defaults to the brightest state.
2. Click the to adjust the brightness of the LED light.
3. The adjustment gears are: Shut down — Low — Medium — High.

Copy Photo And Video Files To Computer

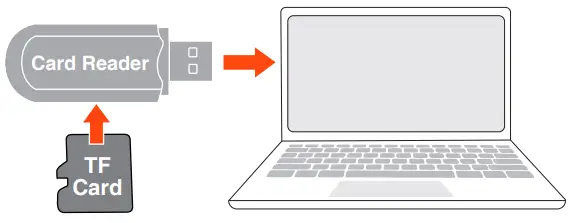

1. Use a TF card reader to copy data directly.
2. Use a Type-C cable to connect to computer.
   1. Please connect the product to your computer.
   2. Select “Data Transmission”.

Charging Instructions

1. Red LED indicator flashes: Charging.
2. Red LED indicator stays on: Charging finished.

Tips:
Connect the device to the DC 5V 2A adapter for charging.
For your safety, please do not try an adapter that does not support DC 5V 2A.

Accessories installation guide

Turn counterclockwise-remove protect cap	Turn clockwise-tighten accessories

Guide to the use of accessories

Turn Off The Microphone

1. Click button to enter the menu.
2. Click to select “Microphone” options.
3. Select “Turn off” and click to confirm the setting.
4. When the microphone is turned off, appears in the preview interface.
   Tips: Please note that when the microphone is turned off, the recorded video will be assonant.

Volume Adjustment

1. Click MENU button to enter the menu.
2. Click to select “Volume” options.
3. Click and to adjust the volume.
4. Click to complete the setting.
5. When the volume is turned off, appears in the preview interface.

Tips: The volume setting only affects the sound volume of the media files, and is invalid for the system sound setting.

Auto-off

1. Click MENU button to enter the menu.
2. Click to select “Auto-off” options.
3. Select “15min” or “30min” and click to confirm the setting.
   Tips: After setting auto-off, the automatic shutdown function is only effective when the equipment is not in operation for a long time, and the auto shutdown is not effective when the device is running.

System Reset

1. Click MENU button to enter the menu.
2. Click to select “System Reset” options.
3. Select “OK” and click to confirm the setting.

Tutorial

1. Click button to enter the menu.
2. Click to select “Tutorial Video” or “Product Tutorials” options.

https://deepsea2019.oss-cn-hongkong.aliyuncs.com/depstech-website/DS530%20User%20Manul.pdf	https://appserver.depstech.com/download/video/20230403-183118.mp4

After Sales Service

If you have a problem with your device, please scan the QR code below and fill in the relevant problem description. We will reply to you as soon as possible, thank you!

https://ten3vv71ae.jiandaoyun.com/f/62f47fe1ea092e0008a4e1f2

Specifications

Model	Dual Camera	Triple Camera
Camera Diameter	7.9 mm (0.31 in)
Best Focal Range	A:3-10 cm (1.18-3.93 in) B:2-6 cm (0.79-2.36 in)	A:3-10 cm (1.18-3.93 in) B:2-6 cm (0.79-2.36 in) C:1.5-2.5 cm (0.59-0.98 in)
Camera View	80°
Screen Spec	5″ IPS Screen
Photo Resolution	1920’1080
Video Spec	1080 p / 15-30 fps
Battery Life	3-4 H
Charging Time	2.5-3 H
Charging Voltage and current	DC 5V/2A

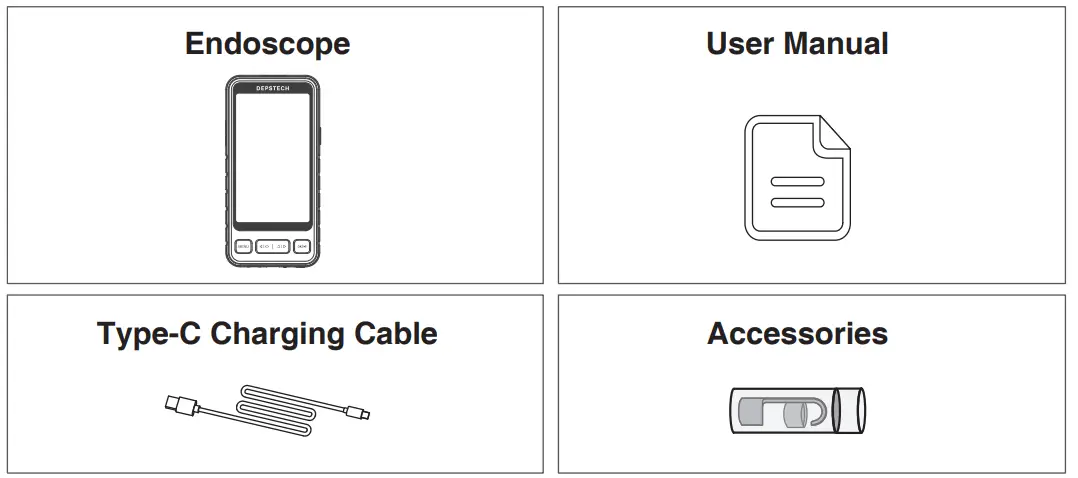

Packing List
