Denver True Wireless Earbuds TWE-52 User Manual

Denver True Wireless Earbuds TWE-52

User Manual

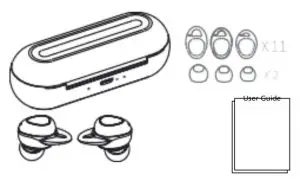

Packing list

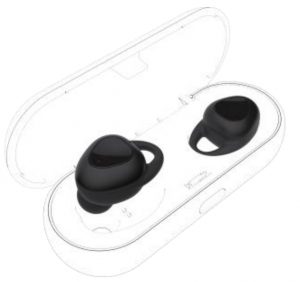

Product Overview

Product Specification

Model name: TWE-52
Bluetooth version: V5.0
Bluetooth name: TWE-52_L (L ear-bud) TWE-52 (R ear-bud, both ear-buds)
Stand-by time: Approx. 150 hrs
Talking time: Approx. 3 hrs
Battery capacity: 2*50 mAh
Battery dock capacity: 500 mAh
Battery temperature: 0℃- 45℃ (32℉- 113℉)

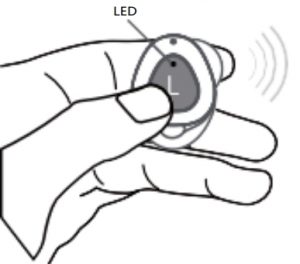

Power ON/OFF

Power on/off: press button 2~4s
*The LED for each ear-bud flashes blue for 2 seconds and then turn off

Pairing

Stereo Mode:

1. Press L&R button for 2s, turn on both ear-buds;

   No need to hold MFB after power on.
   * The L&R will automatically connect, the R LED flashes red & white alternately

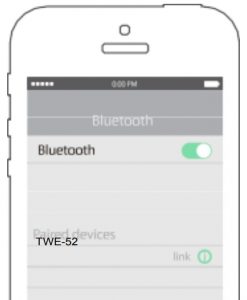

2. Fin d “TWE-52” on the Bluetooth list of your smartphone to pair with your smartphone.

   * When paired with your smartphone, the ear-bud LED flashes blue for 2 seconds.

Mono Mode:

1. Press only L for 2s to turn on

   * The ear-bud LED flashes blue continuosly.
2. Find “TWS-52_L” on the Bluetooth of your smartphone to pair with your smartphone.

   * When paired with your smartphone, the ear-bud LED flashes blue for 2 seconds.

Talking Mode
When make a phone call, for safe reasons only R ear-bud will be enabled to work.

Charging

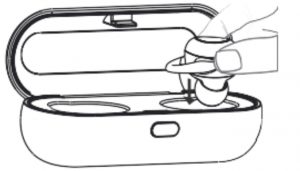

1. Charging the ear-buds

   Charging: the ear-bud LED lights red
   Fully Charged: the ear-bud LED lights blue for 1 minute and then turns off.
2. Charging the dock

   * Charging: the charging case’s LED lights red
   * Fully charged: the charging case’s LED lights blue continuously.

Trouble Shooting

Follow below steps can resolve any pairing or reconnecting issues:

1. Make sure battery dock has enough power:
2. Put the ear-buds into the dock and recharging for a while;
3. Follow the steps of POWER ON and PAIRING of User Guide.
   * If above steps still do not work, please take out both ear-buds of the dock, press both ear-buds button for 10 seconds to turn off the ear-buds, then long press both ear-buds button, L&R will pair with each other automatically.

Care and Maintenance

1. Charge the ear-buds at least once every 6 months.
2. Do not store the ear-buds in extreme temperatures (under 0℃ or over 45℃)
3. Do not us chemicals or detergents to clean the ear-buds
4. Do not drop or knock your ear-buds on hard surfaces.
5. Do not try to take the product apart.
