4.3 Inch LCD Digital Microscope
User Manual
Customer Support:
Email: [email protected]
Buttons
- OK Button
- Left Button
- Right Button
- Menu/Switch
- Indicator Light
- Power Button
- 4.3Inch LCD Digital Screen
- Reset Hole
- Light Wheel
- Focus Wheel
- TF Card Slot
- USB Interface
- Battery Cover
- 8 LED Lights

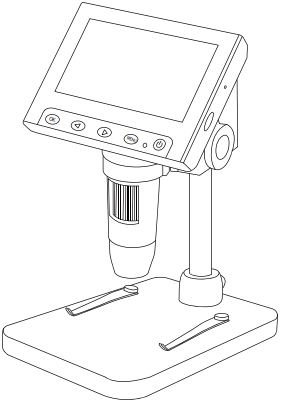

How to install the bracket
 |
 |
| Step 1 | Step 2 |
 |
 |
| Step 3 | Step 4 |
How to adjust the bracket
After loosening the knob, adjust it to a suitable height and then tighten the knob.
How to enter the system settings

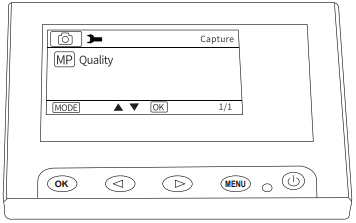

Short press the “menu” key to enter the menu, and short press the “menu” key again to enter the system settings.
Step 1
Step 2
When entering the system settings, you can select “Language” to switch languages.
Notice
Please remove the lens cap before observation.
How to take photos and videos

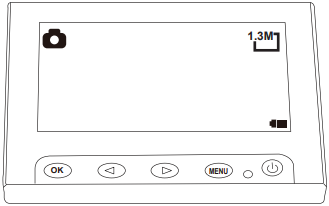

Long press the “MENU” button to switch between photo, video and file modes. Please insert the memory card before taking pictures and videos.
In the photo mode, short press the “OK” button to take a photo.
In video mode, short press the “OK” key to start/stop recording.
How to connect to PC for bigger view

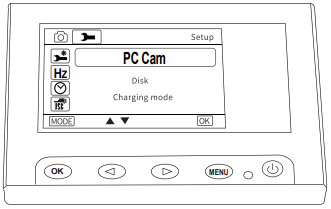

1.Select “PC Cam” mode. (Menu – System settings – USB -PC Cam)
2. Connect the microscope and PC with the USB cable included in the package.
3.Run the software on the PC:
3.1 The default software “Camera” in Win10 system
3.2 “AMcap” (download from Google or CD in the box)
Technical Parameter
| Project | Parameter |
| Name | DMR-05 |
| The biggest pixel | 720P |
| Lens Optical Size | 1/6.5” |
| Photo Resolution | VGA; 1.3M; 2M; 3M |
| Video Resolution | VGA; 720P |
| Data Format | JPG/AVI |
| Focusing Mode | Manual operation |
| Picture Format | JPG/BMP |
| Aperture | F4.5 |
| Light Source | 8 LED lights (adjustable brightness) |
| Focusing Range | 10~40mm(to watch the distant view) |
| PC Resolution And Image Transfer Rate | 640*480/26fps ,1280*720/26fps |
| White Balance | Automatic |
| Exposure | Automatic |
| PC Operating System | Windows XP, win7,win8.1,win10 or higher |
| Support Language | 12 languages |
| Lens Structure | 2G+IR |
| Lens Perspective | 16° |
| USB Interface | Micro/usb2.0 |
| Operating Temperature | -20°C ~ +60°C |
| Working Humidity | 30%~85%Rh |
| Operating Current | 330mA |
| Power Consumption | 1.65W |
| Support TF Card | Max up to 32GB |
If you have any questions, please contact Dcorn: [email protected]
