Product Assembly

accessories explanation

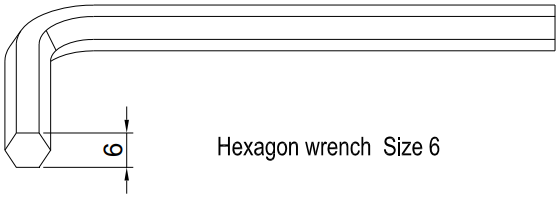

• Hexagon wrench Size 6

• Hexagon wrench Size 5

• Bolt: M6×16

• Shim: M6

• Bot: M8×20

• Sim MB
• Nut: MB

• Bolt: M8x45
• Square Nut: M8×25×25×5

• Handle Bolt M8×15


Assembly Processes

1. Assemble the left and right adjusting plates with 4 pieces of the bolt(M8×20 ) and 4 pieces of the shim (M8)

2. Assemble the pedal support with 4 pieces of the bolt (M8×20) and 4 pieces of the shim (M8)

3. Assemble left and right adjusting stand with 4 pieces of the bolt (M8×45) 、4 pieces of the shim (M8) and 4 pieces of the nut (M8)

4. Assemble the lower fixing stand with 6 pieces of the bolt (M8×45) and 6 pieces of the shim (M8)

5. Assemble the upper connection bracket with 2 pieces of the Handle Bolt (M8×15)

6. . Assemble steering wheel mounting plate retaining stand.

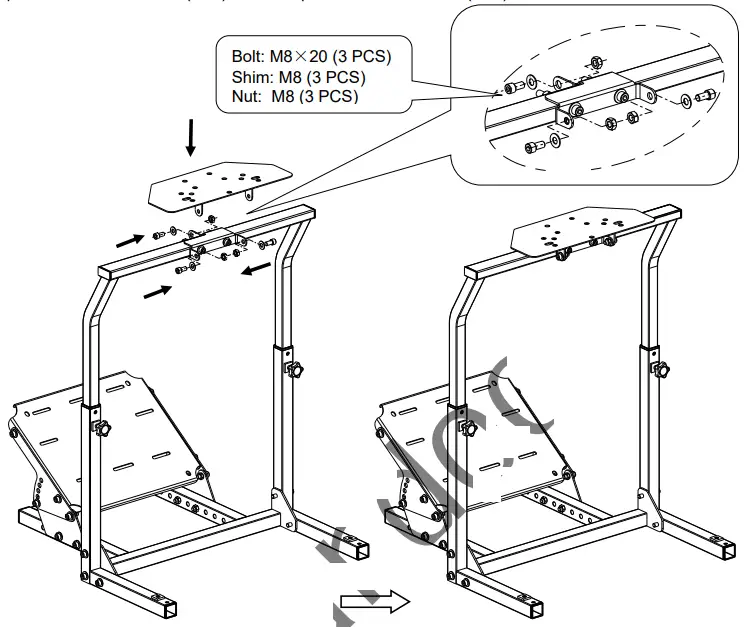

7. Assemble the steering wheel mounting bracket with 3 pieces of the bolt (M8×20) 、 3 pieces of the shim (M8) and 3 pieces of the nut (M8)

8. Assemble the seat mounting stand with 4 pieces of the bolt (M8×20) 、4 pieces of the shim (M8) and 4 pieces of the Square Nut (M8 ×25×25×5)

9. Assemble the seat adjustment stand with 4 pieces of the bolt (M8×20) 、4 pieces of the shim (M8) and 4 pieces of the nut (M8)

10. Assemble the gear mounting stand with 2 pieces of the bolt (M6×16)、 2 pieces of the shim (M6) and 1 pieces of the Handle Bolt (M8×15)

11. Assemble the elbow fixing stand and fixing plate on the left or right as your like to the Seat stand with 2 pieces of the bolt (M8×80) 、2 pieces of the shim (M8) and 2 pieces of the nut (M8)

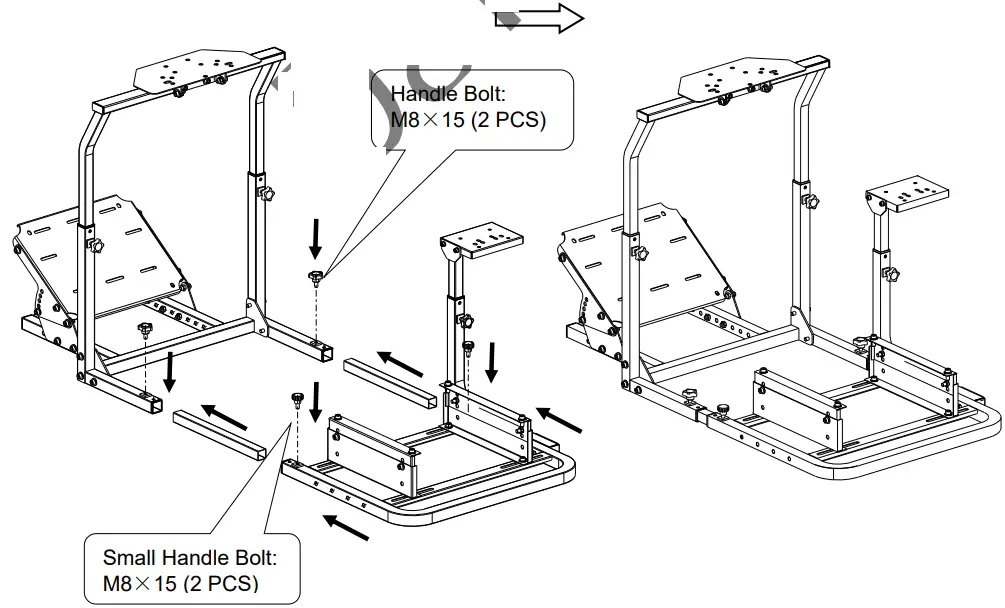

12. Connect the front part stand and the afterpart stand with 4 pieces of the Handle Bolt (M8×15)
