DALI S-100 Phantom Iw Sub Instruction Manual

DALI S-100 Phantom Iw Sub

Carton Contents

• 1 x DALI PHANTOM IW SUB S-100
• 1 x Grille (magnetic)
• 1 x Cut-out template
• 4 x Rubber pads

Installation – In-wall

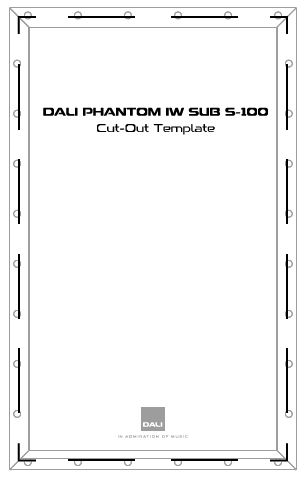

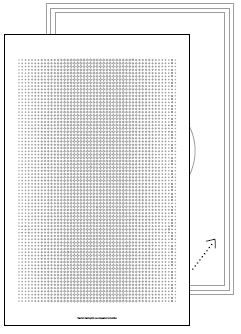

1. Use a cut-out template to prepare the wall for installation.

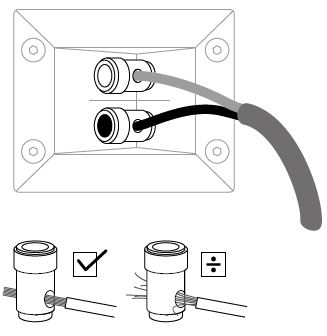

2. Connect cables from the amplifier to the subwoofer.
3. Place subwoofer in wall.

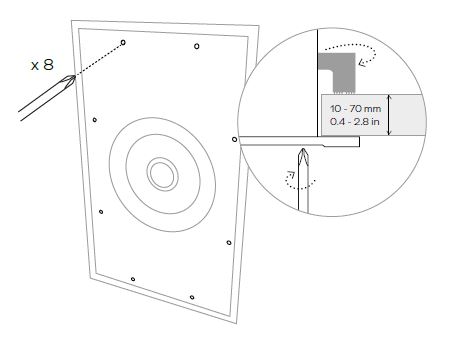

4. Use a cross-head screwdriver or drill bit to tighten the eight dogleg clamp screws.

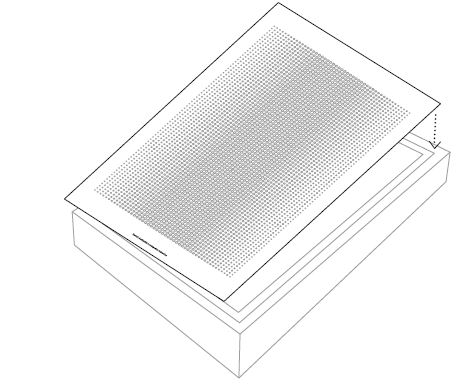

5. Place the grille.

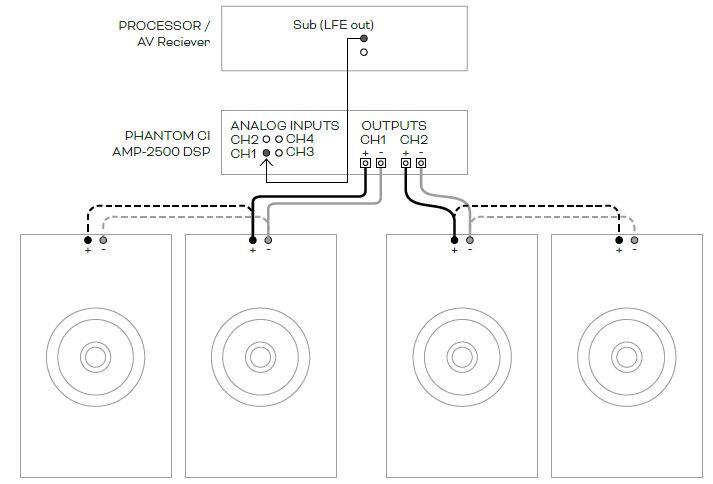

Subwoofer connections

• 1 x Subwoofer (LFE .1)
• 2 x Subwoofer (LFE .1)
• 4 x Subwoofer (LFE .1)

Installation – On-wall frame

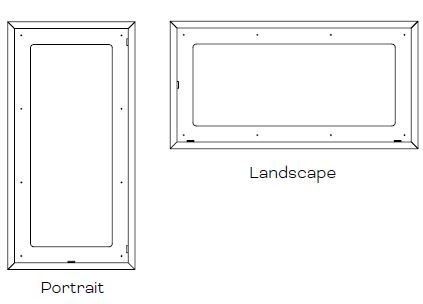

1. Mount the DALI S-80 On-wall frame on the wall in landscape or portrait position.
2. Pass the cable from the amplifier unit through the channels of the frame.

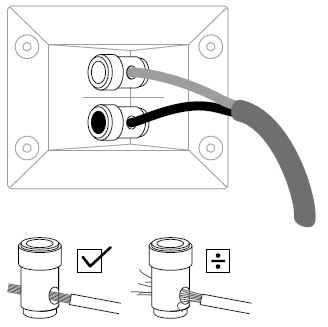

3. Connect cables from the amplifier to the subwoofer.

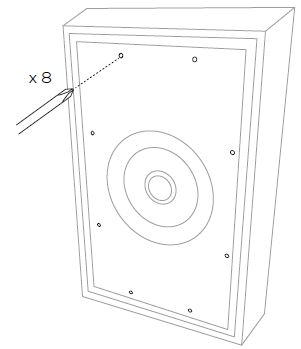

4. Use a cross-head screwdriver or drill bit to 3 tighten the eight dogleg clamp screws.
5. Place the grille.

Unmounted installation

Enable unmounted installation by using the DALI S-80 On-wall frame as an external cabinet for the subwoofer. For example for placement on floor.

1. Place the 4 rubber feet to the rear side of the DALI S-80 On-wall frame.
2. Pass the cable from the amplifier unit through the channels of the frame.
3. Connect cables from the amplifier to the subwoofer
4. Use a cross-head screwdriver or drill bit to tighten the eight dogleg clamp screws.
5. Place the grille.

Go to the User Manual by scanning the QR code.
