dahua DH-PFB302S PTZ Wall Mount Bracket
Product Information
DH-PFB302S Camera Mount Series

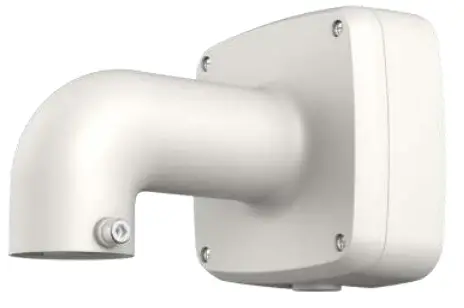

The DH-PFB302S is a wall mount bracket with an IP66 junction box designed for camera mounting. It features a neat and integrated design, with a durable aluminum construction. The IP66 junction box provides protection against dust and water, making it suitable for outdoor use.
This camera mount is designed to securely hold and position cameras, providing a stable and adjustable mounting solution. It is compatible with various camera models.
Product Technical Specifications
| Model | General | Material | Dimension (W x H x D) | Pipe thread | Weight | Load bearing | Color | Protection | Operating temperature | Humidity | Applicable model |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DH-PFB302S | – | Aluminum | – | – | – | – | – | – | – | – | – |
Order Information
| Type | Part Number | Description |
|---|---|---|
| Camera mount | DH-PFB302S | Wall mount bracket with IP66 junction box |
| Camera mount | PFB302S | Wall mount bracket with IP66 junction box |
Package Information
- Wall mount bracket with IP66 junction box *1
- ST4.2×25 screw *4
- Plastic Anchor: 4
- S3.0 wrench *1
Usage Instructions
- Choose a suitable location for mounting the camera.
- Attach the wall mount bracket to the desired surface using the provided screws and plastic anchors.
- Connect the camera to the junction box on the wall mount bracket.
- Adjust the position and angle of the camera as needed.
- Tighten all screws to ensure a secure installation.
- Ensure that the camera is properly connected and functioning before finalizing the installation.
Note: Refer to the specific camera model’s user manual for detailed instructions on camera setup and configuration.
For any further assistance or troubleshooting, please visit the official website at www.dahuasecurity.com.
Features
- Neat & Integrated design
- Material: Aluminum
- Wall mount bracket with IP66 junction box
Technical Specifications
| Model | DH-PFB302S |
| General | |
| Material | Aluminum |
| Dimension (W x H x D) | 134.0mmx133.5mmx187.5mm (5.28”x5.25.”x7.38”) |
| Pipe thread | G3/4” |
| Weight | 0.7kg(1.54lb) |
| Load bearing | 4.0kg(8.82lb) |
| Color | White |
| Protection | IP66 |
| Operating temperature | -40ºC ~60ºC(-40℉~140℉) |
| Humidity | 0~90% RH |
| Applicable model | Please see “Accessory Selection” |
Order Information
| Type | Part Number | Description |
| Camera mount | DH-PFB302S | Wall mount bracket with IP66 junction box |
| PFB302S | Wall mount bracket with IP66 junction box |

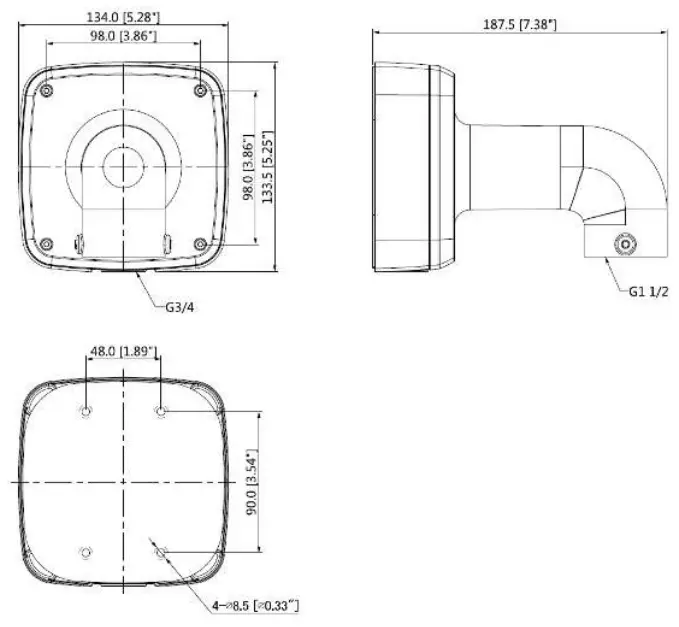

Dimensions
(mm/inch)

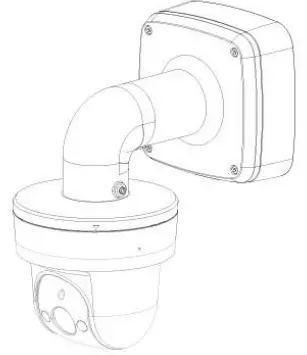

Application
Package Information
- Wall mount bracket with IP66 junction box *1
- ST4.2×25 screw *4
- Plastic Anchor: 4
- S3.0 wrench *1
2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
