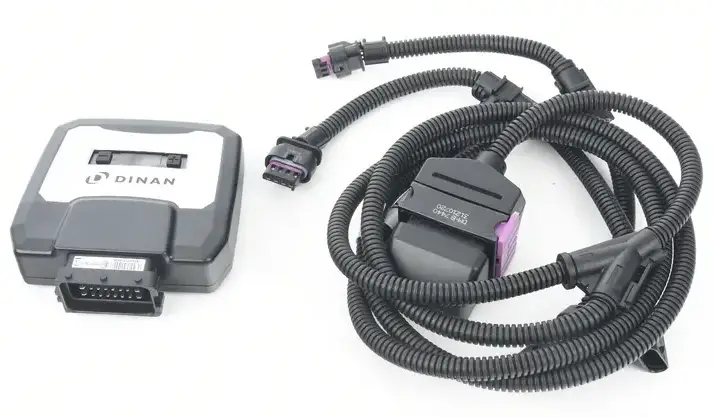

D440-1700 LED Color On Dinan Module
MODULE
|
LED Color On Dinan Module |
Meaning |
|
NO LED |
Device is in bypass mode or not powered, and will not adjust pedal sensitivity |
|
Solid Green |
Amp’d 2.0 has learned your vehicles accelerator pedal and can adjust pedal sensitivity. No Mobile device is currently connected. |
|
Solid Red |
A Mobile device is connected to the Dinan Module |
|
Solid Orange |
A Mobile device is connected to the DinanModule, has learned your vehicles accelerator pedal and can adjust sensitivity |
|
Flickering RED |
Mobile device is communicating with the Dinan Module |
|
Blinking RED |
If the Red LED is continuously blinking slowly, The device may not be able to read the calibration EEPROM. |
Troubleshooting
| Troubleshooting without a Mobile Phone connected to the Dinan Module | ||
|
Symptom |
Possible cause |
Recommended Action |
|
Dinan module LED is not Green |
Dinan harnesses are not fully connected |
Confirm the harnesses are securely connected to the vehicle harness, accelerator pedal and the Dinan module. |
|
A pedal relearn has not been completed |
Complete a pedal relearn. See the quick start guide for instruction |
|
| Dinan module LED is not Orange when a mobile device is connected |
A pedal relearn has not been completed |
Complete a pedal relearn. |
|
Wireless switch is not turning on |
Batteries may be installed incorrectly |
Reinstall batteries. The positive side of the batteries should be visible when in the battery tray. |
|
Wireless switch is not changing the pedal sensitivity |
Wireless switch has not been connected to the DinanModule |
Follow the quick start guide instructions for connecting your wireless switch. |
|
Wireless switch has not been connected to the Dinan Module |
Reset switch pairing with the Mobile app. Follow the quick start guide instructions for connecting your wireless switch. | |
|
A pedal relearn has not been completed |
Complete a pedal relearn. See the quick start guide for instruction |
|
|
Dinan module LED is slowly blinking RED |
Device cannot read the calibration EEPROM |
Hard Reset the device by disconnecting, letting it rest for apprx. 10 seconds, and reconnecting the harnesses. |
| Troubleshooting with a Mobile Phone connected to the Dinan Module | ||
|
Symptom |
Possible cause |
Recommended Action |
|
Dinan module LED is not Red |
Dinan harnesses are not fully connected |
Confirm the harnesses are securely connected to the vehicle harness, accelerator pedal and the Dinan module. |
|
A mobile device is not linked to the Dinan module |
Follow the in App instruction for linking a mobile device. |
|
|
Mobile device will not link to the Dinan module |
The Dinan device cannot be found |
Confirm the harnesses are securely connected to the vehicle harness, accelerator pedal and the Dinan module. |
|
The Dinan device cannot be found |
Follow the in App instruction for linking a mobile device. |
|
|
Bluetooth is not enabled on the mobile device |
Enable Bluetooth connection for the Dinan mobile app. |
|
|
Location services are not enabled on the mobile device |
Enable location services for the Dinan mobile app. |
|
| Mobile device is not change the pedal sensitivity |
A pedal relearn has not been completed |
Complete a pedal relearn. Follow the in app instructions from the devices page (the LED on the Dinan module will be orange when complete) |
| Dinan module LED is slowly blinking RED | Device cannot read the calibration EEPROM | Hard Reset the device by disconnecting, letting it rest for apprx. 10 seconds,
and reconnecting the harnesses. |
