MIL-8012-PN 12 Light Chandelier
Instruction Manual
Contents
MIL-8012-PN 12 Light Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 12-Candelabra Base Bulb 40 Watts recommended 60Watts Max.
USE LED BULBS FOR EXTENDED USE
The fixture is Damp rated.
How to Install
- Pass the wire through the rod then screw the rod onto the frame.
- Decide the desired hanging height and choose the correct length of chain.
- Install the mounting strap onto the outlet box using two outlet box screws.
- Attach the canopy onto the mounting strap.
- Screw the glass ball onto the bottom of finial.

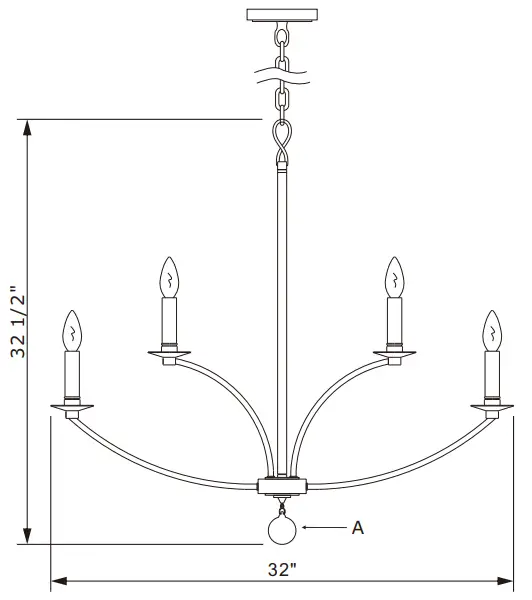

Crystal Sets
A. 1 Piece. (1)Smooth glass Ball-2″

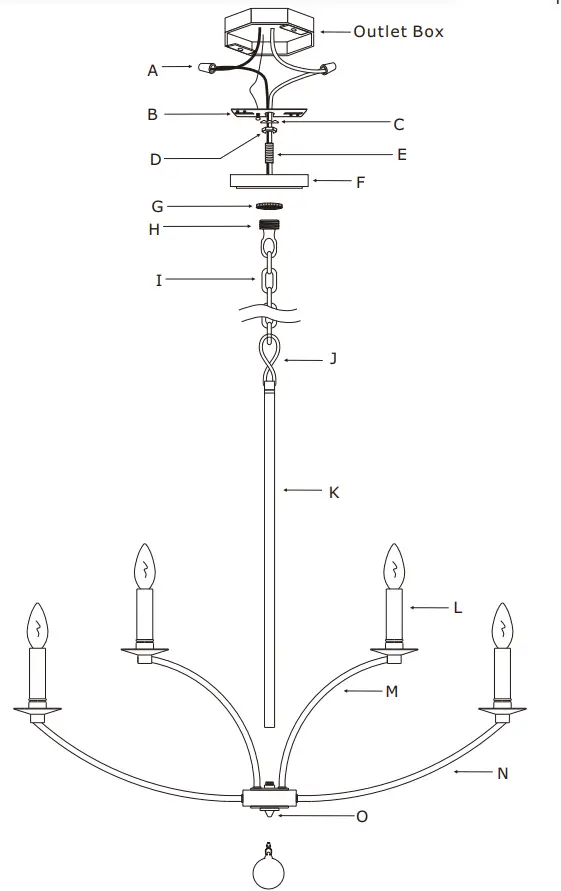

DETAILED ILLUSTRATION
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov
PART NUMBER MODEL #MIL-8012-PN
Part Number
A. (2)-Wire Connector
B. (1)-Mounting Bar
C. (1)-Lock Washer
D. (1)-Hex Nut
E. (1)-Nipple
F. (1)-Canopy (W5″xH1″)
-XSN8005PNCAN5IN
G. (1)-Collar Ring
H. (1)-Collar Loop
I. (1)-Chain (4mmx72″)
-XSN8005PNCHA
J. (1)-Loop;H3.5″
K. (1)-Rod;H23 3/4″
-XSN8012PNROD23.75IN
L. (12)-Candle Sleeve;H3 1/4″
-XSN8005PNCDL3.25IN
M. (4)-Upper Arms-XSN8012PNARM
N. (8)-Lower Arms-XSN8012PNLARM
O. (1)-Finial-XSN8005PNFIN
