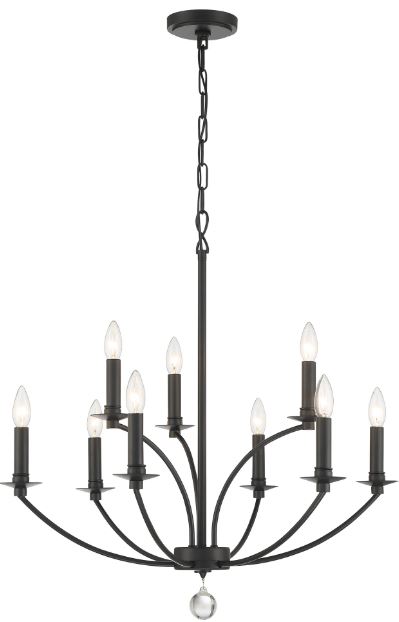

CRYSTORAMA MIL-8009-PN Nine Light Chandelier
Product Information
- Model Number: MIL-8009-PN
- Part Number: MIL-8009-PN
- Fixture Type: Chandelier
- Recommended Bulb Type: 9-Candelabra Base Bulb, 40 Watts (60 Watts Max)
- Usage Recommendation: Use LED Bulbs for Extended Use
- Rating: Damp Rated
- Crystal Sets: 1 Piece (Smooth Glass Ball-2)
- Warning: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.P65warnings.ca.gov
WARNING: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 9-Candelabra Base Bulb 40 Watts recommended 60Watts Max. USE LED BULBS FOR EXTENDED USE.
Part Number
- A. (2)-Wire Connector
- B. (1)-Mounting Bar
- C. (1)-Lock Washer
- D. (1)-Hex Nut
- E. (1)-Nipple
- F. (1)-Canopy (W5″xH1″) -XSN8005PNCAN5IN
- G. (1)-Collar Ring
- H. (1)-Collar Loop
- I. (1)-Chain (4mmx72″) -XSN8005PNCHA
- J. (1)-Loop;H3.5″
- K. (1)-Rod;H20″ -XSN8009PNROD20IN
- L. (9)-Candle Sleeve;H3 1/4″ -XSN8005PNCDL3.25IN
- M. (3)-Upper Arms-XSN8009PNARM
- N. (6)-Lower Arms-XSN8009PNLARM
- O. (1)-Finial-XSN8005PNFIN
How to Install
- Pass the wire through the rod then screw the rod onto the frame.
- Decide the desired hanging height and choose the correct length of chain.
- Install the mounting strap onto the outlet box using two outlet box screws.
- Attach the canopy onto the mounting strap.
- Screw the glass ball onto the bottom of finial.
Crystal Sets
- A. 1 Piece. (1)Smooth glass Ball-2″
DETAILED ILLUSTRATION
Top view
DIMENSION
