JUN-10322-PN Juno Two Light Wall Mount
Instruction Manual
Contents
JUN-10322-PN Juno Two Light Wall Mount
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 2- Medium Base Bulb 60 Watts Recommended 100 Watts Max.
USE LED BULBS FOR EXTENDED USE This fixture is Damp rated
How to install
- Install the mounting plate to the outlet box using two outlet box screws.
- Install backplate onto the mounting plate, and secure with the screws.
- Install the glass shade over the socket, and secure with the socket ring .
- Install the bulb(not included) into the socket.
WARNING: This product can expose you to Lead which is known to the state of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov

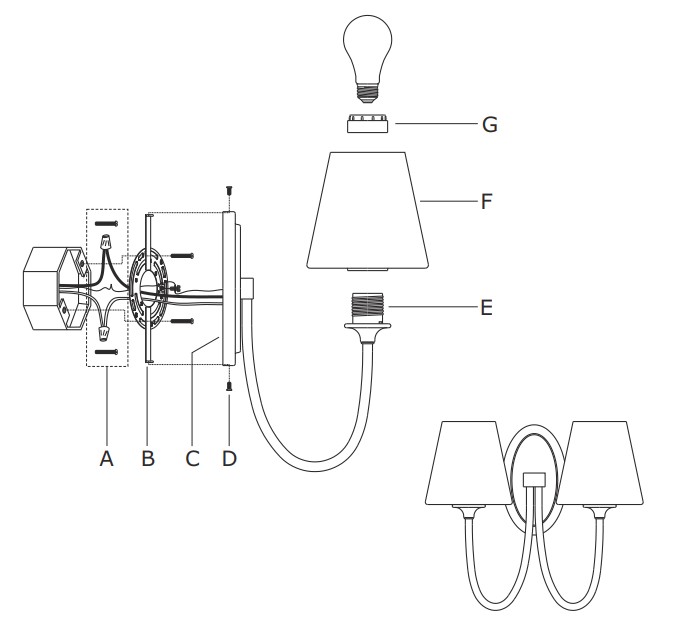

Part Number
Part Numbers
A. (1)-Mounting hardware
B. (1)-Mounting plate

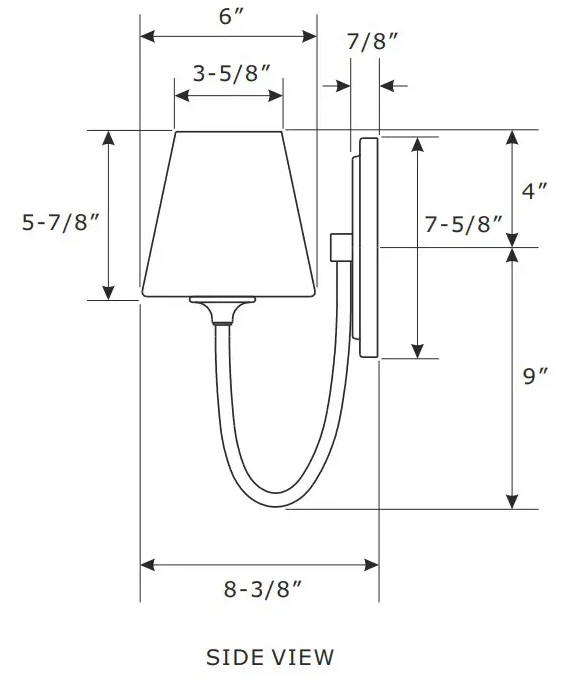

C. (1)-Backplate L7-5/8’’xW4-3/8’’xH7/8’’ #XRF10322PNBKP7.625IN
D. (2)-Screw
E. (2)-Socket
F. (2)-Glass shade #XRF10321SHA6IN
G. (2)-Socket ring
