LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION MODEL #GAM71005AG
Contents
GAM71005AG Gamma 1 Light Pendant
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 1- Medium Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE The fixture is Dry rated
HOW TO INSTALL:
Place the fixture parts on a soft cloth-covered platform before installation of fixture.

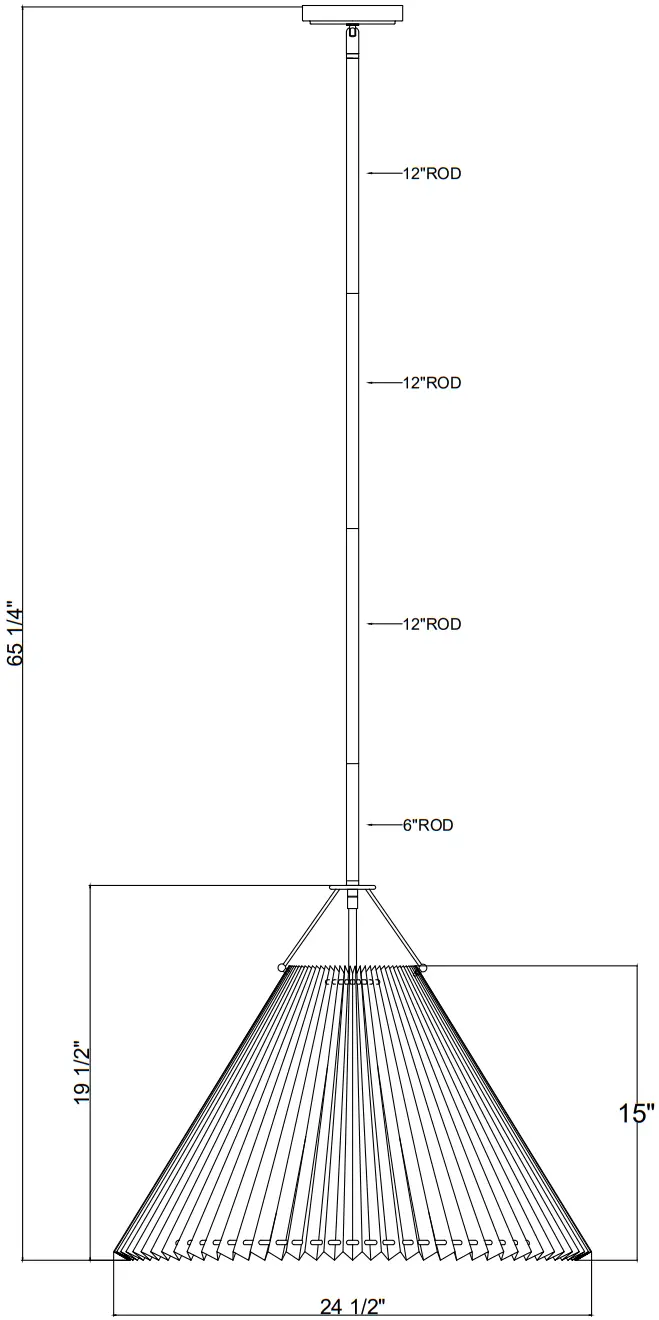

- Decide the preferred hanging height and choose the correct length of rods needed.
- Feed the wire through the rods and screw them together. Screw one end of the rod assembly onto the swivel on the canopy.
- Install the mounting plate onto the outlet box.
- Raise the fixture up to the ceiling and do the wire connections.
Secure the canopy with the screws. - Screw the shade assembly onto the other end of the rod assembly
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
For more information go to www.p65warnings.ca.gov

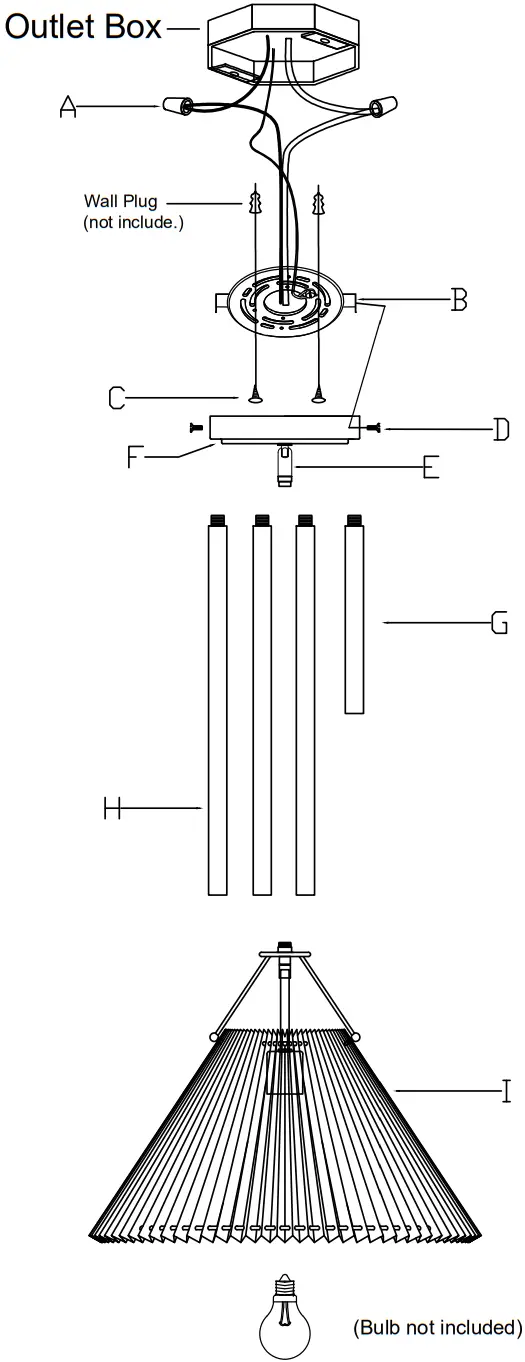

Part Number
Part Numbers
A. (2)-Wire Connector
B. (1)-Mounting plate
C. (2)-Mounting Screw
D. (2)-Screw
E. (1)-Swivel
F. (1)-Canopy; W5″xH1 ” ; with 2 side holes; XSN71003AGCAN5IN
G. (1)-H6″ ROD; XSN71003AGROD6IN
H. (3)-H12″ ROD; XSN71003AGROD12IN
I. (1)-Shade assembly ; H15″; XSN71005AGSHA25IN
