GAB-B7311-GA One Light Wall Mount
Instruction Manual
Contents

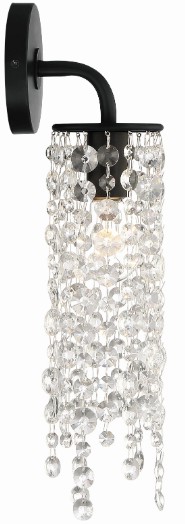

GAB-B7311-GA One Light Wall Mount
ASSEMBLY INSTRUCTION MODEL #GAB-B7311-GA
Backplate(W4.72″,H4.72″,D0.79″)

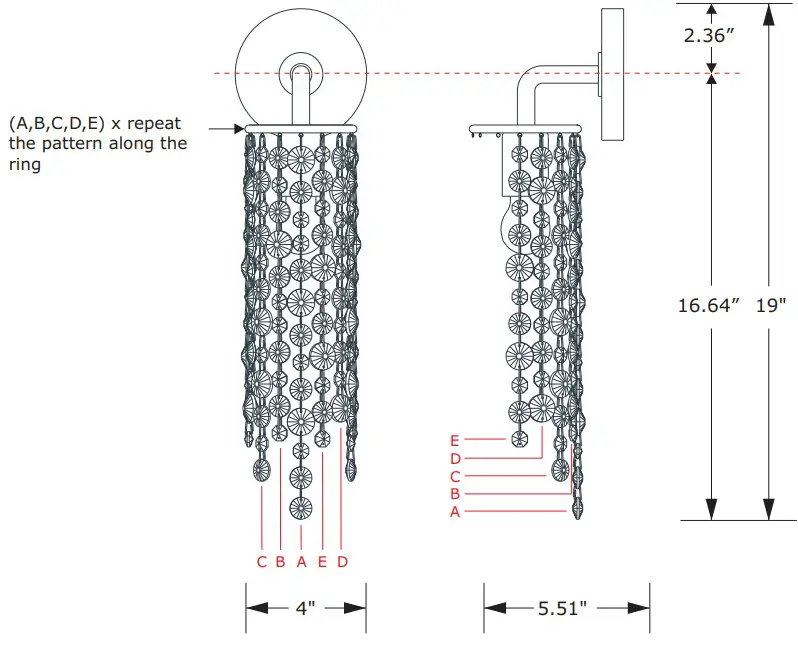

DETAILED ILLUSTRATION
WARNING:
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 1-Medium Base Bulb 60 Watts Recommended 100 Watts Max.
USE LED BULBS FOR EXTENDED USE This fixture is DAMP rated
How to Install
- Attach the fixture frame onto the outlet box.
- Install the bulb(not included).
- Dress the fixture with crystal as illustrated.
Crystal Key
A.3 Sets. (4)14mm + (6)20mm + (3)25mm
B.3 Sets. $ )14mm + (5)20mm + (1)25mm
C.3 Sets. (5)14mm + (5)20mm + (2)25mm
D.3 Sets. (4)14mm + (4)20mm + (2)25mm
E.3 Sets. (5)14mm + (4)20mm + (2)25mm
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
PART NUMBER MODEL #GAB-B7311-GA
PART Number
A. (1) – Mounting Hardware
B. (1) – Backplate(W4.72″,H4.72″,D0.79″) #XRE7311GABKP4.72IN
