CRYSTORAMA FOS-A8051-MK LED Bathroom Vanity

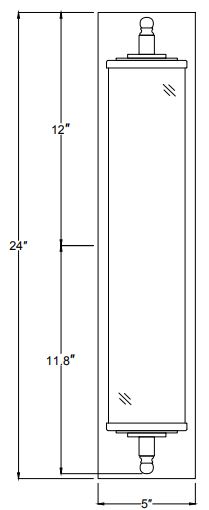

Vertically
WARNING:
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 1-6W 600 Lumens 2700k TI0-LED Dimmable, E26 Medium Base Bulb Included USE LED BULBS FOR EXTENDED USE This fixture is Damp Rated
How to Install
- Locate the fixture arm that has the cylinder nut.
- With the enclosed wrench, remove the set screw within the cylinder nut.
- On the same arm, unscrew the top finial and slowly remove the arm, lid and glass shade.
- Install the recommended bulb and follow steps 1-3 in reverse, to assemble the shade and arm.
- This fixture can now be connected and mounted horizontally or vertically.

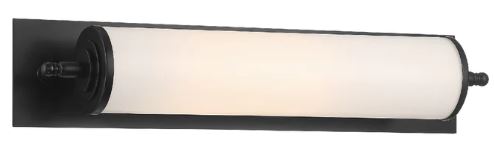

Horizontally
Part Number
- A. Mounting Hardware
- (1) Mounting Plate
- (4) Outlet Box Screws
- (4) Anchors
- B.(1)Backplate;4.2″x23.2″x0.63″h; XMO8051MKBKP23.2IN
- D.(1)Socket
- E.(1)Glass shade;∅3.9″x18.9″h; XMO8051GLA18.9IN
- H.(2)Finial;XMO8050MKBANUT
- C.(1)Set screw
- F.(2)Lid; XMO8050MKMECOVER
- G.(2)Arm
- I.(1)Cylinder Nut
