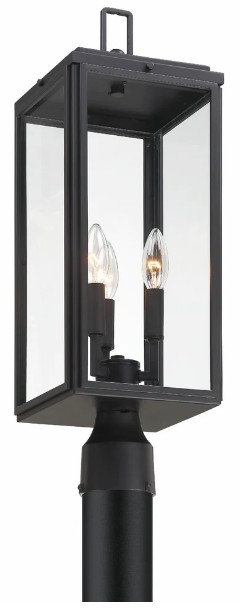

BYR80109MK Three Light Outdoor Post Mount
Instruction Manual
Contents
BYR80109MK Three Light Outdoor Post Mount
ASSEMBLY INSTRUCTION MODEL#BYR – 80109-MK
WARNING
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 3- Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THE FIXTURE IS WET RATED

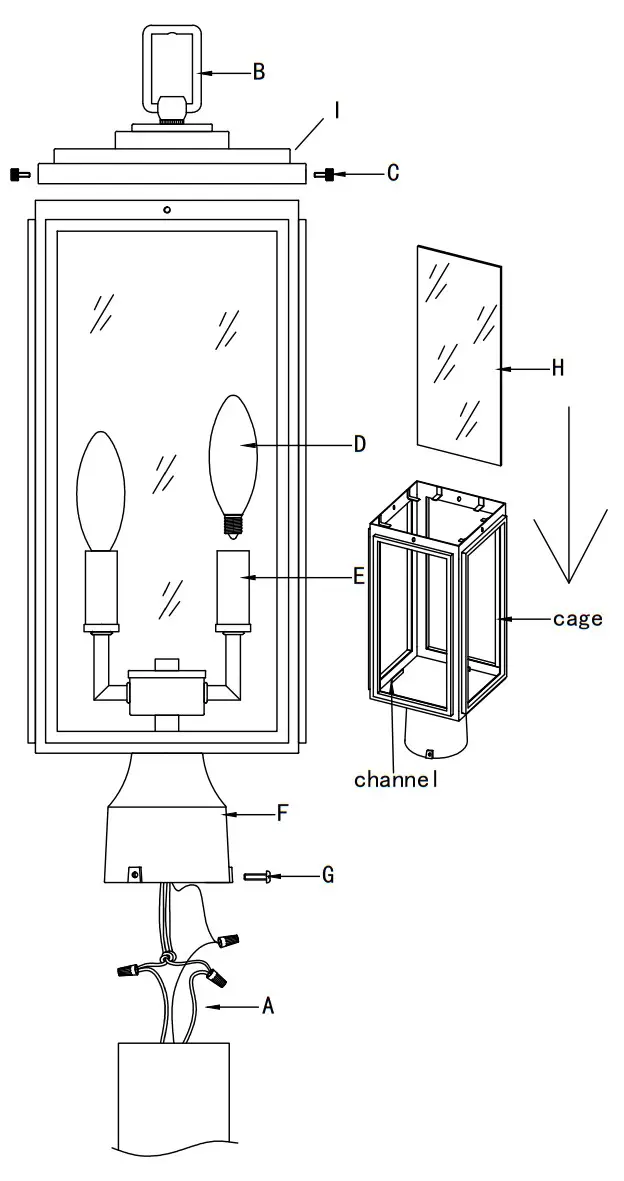

How to install
- Insert the glass panel into the channel on the bottom of cage and secure it with the clip.
Note:Please don’t bend the clip to secure the glass until all the glass panels are placed inside the cage. - Install the bulb(not included) into the socket. 3.Install the cage onto the top cap and secure with the cap nut. 4.Place the fixture over the post and secure with screws.
WARNING: This product can expose you to Lead which is known to the state of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov
Part Number
Part Numbers
A. (1)-Mounting hardware
B. (1)-Loop;XAR80109MKLOOP
C.(4)-Cap Nut
D.(3)-Bulb
E.(3)-candlesleeve 7/8″X2 1/8″ XAR80103MKCDL2.18IN
F.(1)-Post fitter
G.-(3)Screw
H. (4)-Glass panel 6 3/4″X14 1/4″X1/
8″XAR80103GLA6.75IN I. (1)-Top cap
