ASSEMBLY INSTRUCTION MODEL ADD-302-CH-SM
WARNING:
Electrical Danger Turn Power Off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 2 Candelabra Base Bulb
40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
( This fixture is damp rated)
How to Install
- Place the mounting plate over the outlet box and mark two points on the wall with same distance as between the two holes on the mounting plate.
- Drill the holes at the marked points and insert the plastic anchors into the holes. Attach the mounting plate onto the outlet box using the anchor screws.
- Attach the backplate onto the mounting plate using the screws.
- Install the bulb into the socket.
- Dress the glass as illustrated.
Glass Sets
1. 10pcs Smoke glass 2 3/4×7 3/4″
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

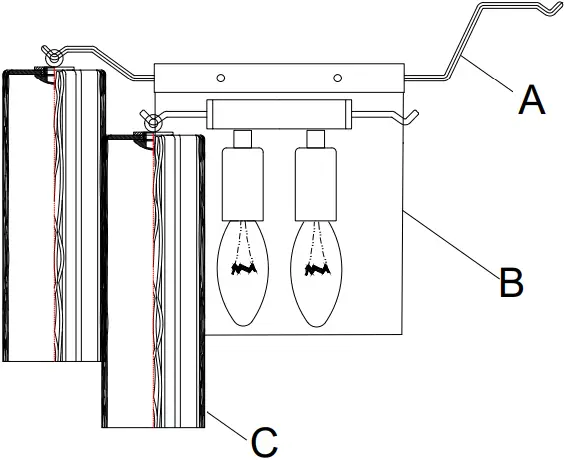

Part Number
A. (1)-Frame
B. (1)-Backplate W7xH6 3/4xD3/4″ (XBN302CHBKP7IN)
C. (10)-Glass 2 3/4×7 3/4″ ( XBN300CHSMGLA7.75IN)
