LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION
MODEL #8884-AG
Contents

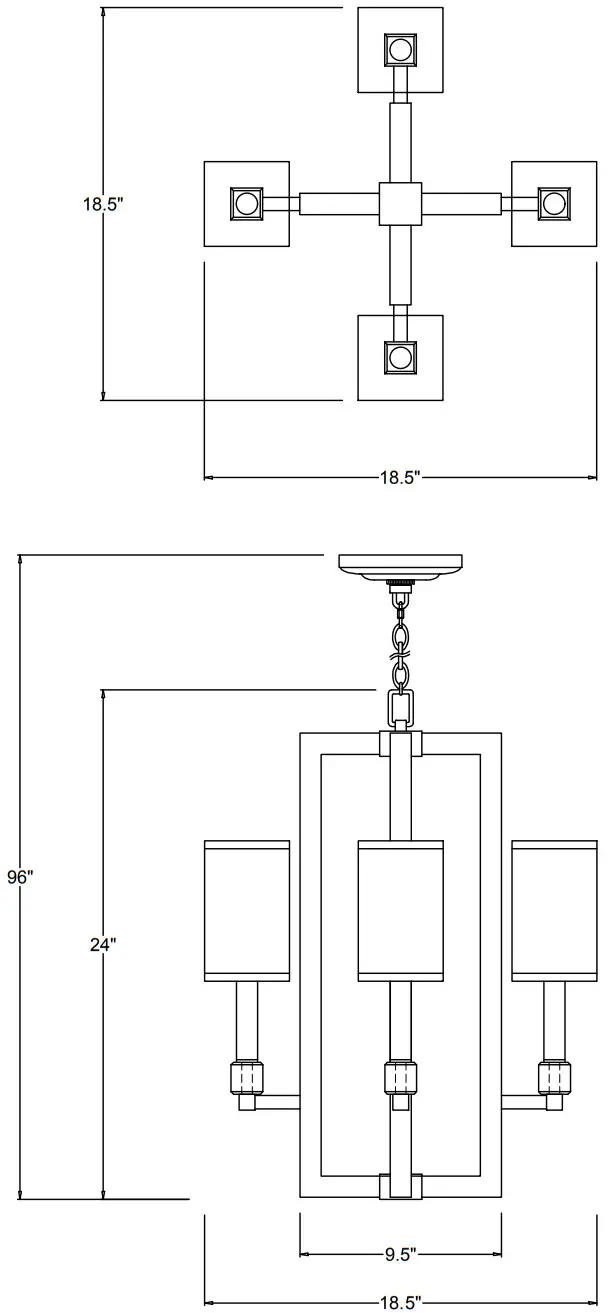

8884-AG Dixon Four Light Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 4-Cand.BULB
40 Watts Recommended 60 Watts Max
Bulb not included
USE LED BULBS FOR EXTENDED USE
This fixture is DRY rated
How to Install
- Attach the mounting bar to the outlet box.
- Decide the preferred hanging height and choose the correct length of chain needed.
- Raise the fixture frame up over the ceiling and do the wire connection. Secure the canopy over the outlet box using the screw collar ring.
- Place the shade over the candle sleeve and install the bulb.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov
Part Number
Part Numbers
A.Mounting Hardware
(1)Mounting Plate
(2)Wire Nut
B.(1)Screw Collar Loop
C.(1)Canopy;Ø5.8″x1.2″h;XMO8884AGCAN5.8IN
D.(1)Collar Ring
E.(2)Quick Link
F.(1)Chain;72″L x ∅5.0mmT;XMO8884AGCHA5MM
G.(1)Loop
H.(4)Fabric Shade;4″x4″x6.6″h;XMO8884SHA6.6IN
I.(4)Socket
J.(4)Crystal
K.(1)Fixture frame
